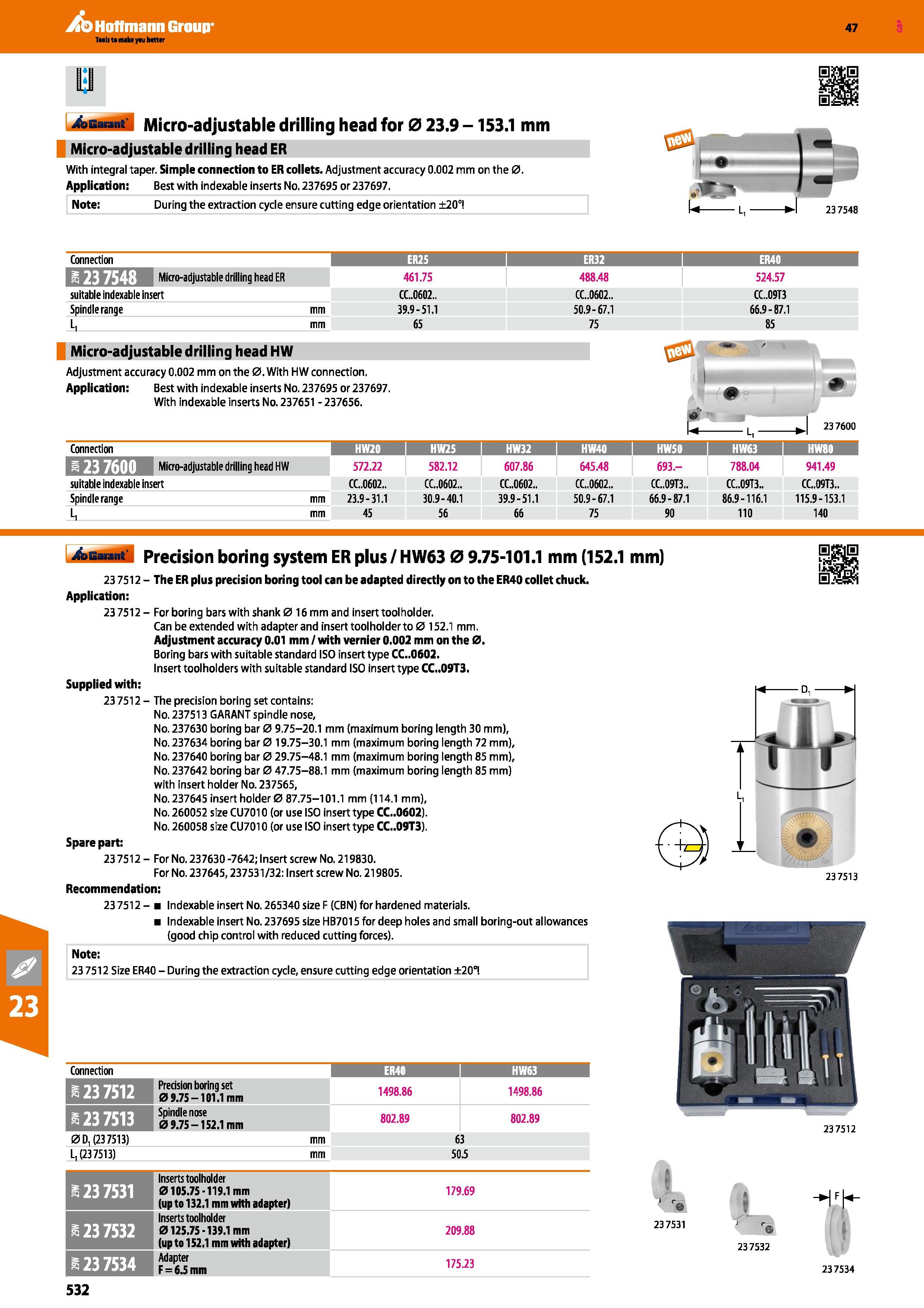

532 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.532

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 532 0532 ENG Lab2u

Hoffmann Group 47 4aBM id Micro-adjustable drilling head for 0 23.9 -153.1 mm Micro-adjustable drilling head ER With integral taper. Simple connection to ER collets. Adjustment accuracy 0.002 mm on the 0. Application: Best with indexable inserts No. 237695 or 237697. Note: During the extraction cycle ensure cutting edge orientation ±20° 237548 Connection ER25 1 ER32 1 ER40 1 frJ.T7TM Micro-adjustable drilling head ER 461.75 488.48 524.57 suitable indexable insert CC..0602.. CC..0602.. CC..09T3 Spindle range mm 39.9-51.1 50.9-67.1 66.9-87.1 L, mm 65 75 85 Micro-adjustable drilling head HW Adjustment accuracy 0.002 mm on the 0.With HW connection. Application: Best with indexable inserts No. 237695 or 237697. With indexable inserts No. 237651 - 237656. e U- 23 7600 Connection HW20 HW25 i HW32 HW40 HW50 i HW63 H IH'Jck/rMlfl Micro-adjustabledrlllinq head HW 572.22 582.12 607.86 645.48 693.- 788.04 941.49 suitable indexable insert CC..0602.. CC..0602.. CC..0602.. CC..0602.. CC..09T3.. CC..09T3.. CC..09T3.. Spindle range mm 23.9-31.1 30.9 - 40.1 39.9-51.1 50.9-67.1 66.9 - 87.1 86.9-116.1 115.9-153.1 L, mm 45 56 66 75 90 110 140 Precision boring system ER plus / HW63 0 9.75-101.1 mm (152.1 mm) 23 7512 - The ER plus precision boring tool can be adapted directly on to the ER40 collet chuck. Application: 23 7512- For boring bars with shank0 16mm and insert toolholder. Can be extended with adapter and insert toolholder to 0 152.1 mm. Adjustment accuracy 0.01 mm / with vernier 0.002 mm on the 0. Boring bars with suitable standard ISO insert type CC..0602. Insert toolholders with suitable standard ISO insert type CC..09T3. Supplied with: 23 7512 - The precision boring set contains: No. 237513 GARANT spindle nose. No. 237630 boring bar 0 9.75-20.1 mm (maximum boring length 30 mm). No. 237634 boring bar 0 19.75-30.1 mm (maximum boring length 72 mm). No. 237640 boring bar 0 29.75-48.1 mm (maximum boring length 85 mm). No. 237642 boring bar 0 47.75-88.1 mm (maximum boring length 85 mm) with insert holder No. 237565, No. 237645 insert holder 0 87.75-101.1 mm (114.1 mm). No. 260052 size CU7010 (or use ISO insert type CC..0602). No. 260058 size CU7010 (or use ISO insert type CC..09T3). Spare part: 237512 - For No. 237630-7642; Insert screw No. 219830. For No. 237645,237531/32: Insert screw No. 219805. Recommendation: 237512 - Indexable insert No. 265340 size F (CBN) for hardened materials. Indexable insert No. 237695 size HB7015 for deep holes and small boring-out allowances (good chip control with reduced cutting forces). Note: 23 7512 Size ER40 - During the extraction cycle, ensure cutting edge orientation ±20° 23 7513 Connection S 23 7512 Precision boring set 09.75-101.1 mm 1498.86 8 23 7513 Spindle nose 09.75-152.1 mm 802.89 1498.86 802.89 0D, (23 7513) L, (237513) mm 63 50.5 8 23 7531 Inserts toolholder 0105.75-119.1 mm (up to 132.1 mm with adapter) 179.69 Inserts toolholder 8 23 7532 0125.75-139.1 mm 209.88 (up to 152.1 mm with adapter) 8 23 7534 Adapter F=6.5 mm 175.23 23 7531 237532 23 7512 -HFh- 237534 532
