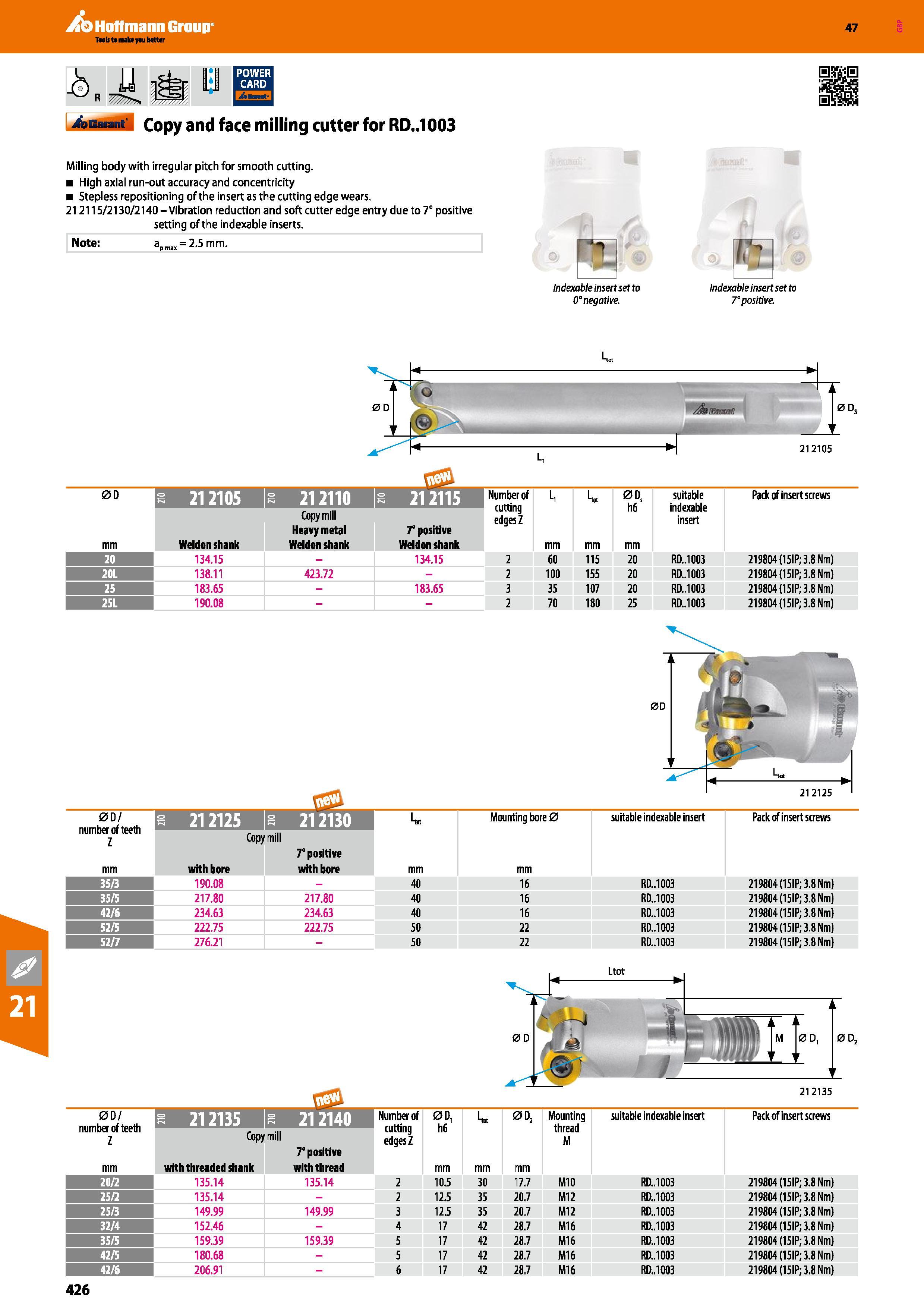

Hoffmann Group 47 h) U bGaiant Copy and face milling cutter for RD..1003 Milling body with irregular pitch for smooth cutting. High axial run-out accuracy and concentricity Stepless repositioning of the insert as the cutting edge wears. 212115/2130/2140-Vibration reduction and soft cutter edge entry due to 7° positive setting of the indexable inserts. Note: a „ = 2.5mm. Indexable insert set to 0° negative. Indexable insert set to 7°positive. 0D 212105 s 212110 Number of cutting edgesZ L, 0D, h6 mm suitable indexable insert Pack of insert screws mm Weldon shank Copy mill Heavy metal Weldon shank 7° positive Weldor shank mm 20 134.15 - 134.15 2 60 115 20 RD..1003 219804 (15IP; 3.8 Nm) 20L 138.11 423.72 - 2 100 155 20 RD..1003 219804 (15IP; 3.8 Nm) 25 183.65 '- 183.65 3 35 107 20 RD..1003 219804 (15IP; 3.8 Nm) 25L 190.08 2 70 180 25 RD..1003 219804 (15IP; 3.8 Nm) 0D/ number of teeth Z mm s 212125 Hfl mm Mounting bore 0 mm suitable indexable insert Pack of insert screws Copy mill 7° positive with bore with bore 35/3 190.08 - 40 16 RD..1003 219804 (15IP; 3.8 Nm) 35/5 217.80 217.80 40 16 RD..1003 219804 (15IP; 3.8 Nm) 42/6 234.63 234.63 40 16 RD..1003 219804 (15IP; 3.8 Nm) 52/5 222.75 222.75 50 22 RD..1003 219804 (15IP; 3.8 Nm) 52/7 276.21 - 50 22 RD..1003 219804 (15IP; 3.8 Nm) 00/ number of teeth Z mm Number of cutting edgesZ 0D, h6 mm Lt mm 0D2 mm Mounting thread M suitable indexable insert Pack of insert screws Copy mill 7° positive with threaded shank with thread 20/2 135.14 135.14 2 10.5 30 17.7 M10 RD..1003 219804 (15IP; 3.8 Nm) 25/2 135.14 - 2 12.5 35 20.7 Ml 2 RD..1003 219804 (15IP; 3.8 Nm) 25/3 149.99 149.99 3 12.5 35 20.7 M12 RD..1003 219804 (15IP; 3.8 Nm) 32/4 152.46 - 4 17 42 28.7 M16 RD..1003 219804 (15IP; 3.8 Nm) 35/5 159.39 159.39 5 17 42 28.7 M16 RD..1003 219804 (15IP; 3.8 Nm) 42/5 180.68 - 5 17 42 28.7 M16 RD..1003 219804 (15IP; 3.8 Nm) 42/6 206.91 - 6 17 42 28.7 Ml 6 RD..1003 219804 (15IP; 3.8 Nm) 426
