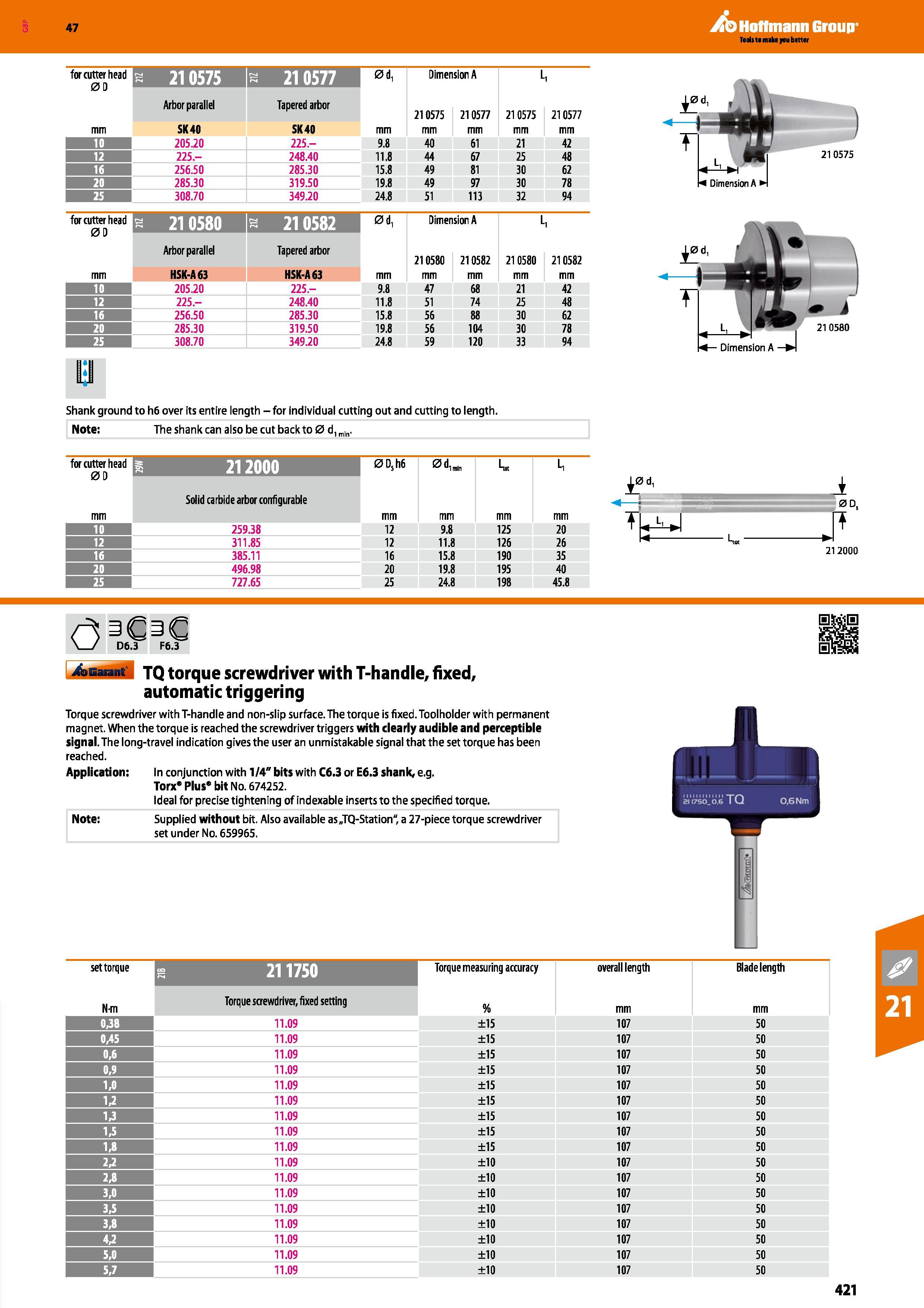

Hoffmann Group 47 Tools to make you better for cutter head 0D a 210575 a 210577 0d, Dimension A L i Arbor parallel Tapered arbor 210575 21 0577 21 0575 210577 mm SK40 SK40 mm 10 205.20 225.- 9.8 40 61 21 42 12 225.- 248.40 11.8 44 67 25 48 16 256.50 285.30 15.8 49 81 30 62 20 285.30 319.50 19.8 49 97 30 78 25 308.70 349.20 24.8 51 113 32 94 for cutter head 00 a 210580 a 210582 0d, Dimension A L i Arbor parallel Tapered arbor 210580 21 0582 210580 210582 mm HSK-A63 HSK-A63 mm 10 205.20 225.- 9.8 47 68 21 42 12 225.- 248.40 11.8 51 74 25 48 16 256.50 285.30 15.8 56 88 30 62 20 285.30 319.50 19.8 56 104 30 78 25 308.70 349.20 24.8 59 120 33 94 Shank ground to h6 over its entire length - for individual cutting out and cutting to length. Note: The shank can also be cut back to 0 d. mln. for cutter head 0 D S 212000 0Dsh6 mln L, mm Solid ca rbide arbor configurable mm 10 259.38 12 9.8 125 20 12 311.85 12 11.8 126 26 16 385.11 16 15.8 190 35 20 496.98 20 19.8 195 40 25 727.65 25 24.8 198 45.8 jjl T < Ll < Dimension A 21 0575 0d. : I TL J. 0 Ds Pf 21 2000 (3 D6.3 F6.3 bGaiant JQ torque screwdriver with T-handle, fixed, automatic triggering Torque screwdriver with T-handle and non-slip surface. The torque is fixed. Toolholder with permanent magnet. When the torque is reached the screwdriver triggers with clearly audible and perceptible signal. The long-travel indication gives the user an unmistakable signal that the set torque has been reached. Application: In conjunction with 1/4" bits with C6.3 or E6.3 shank, e.g. Torx Plus bit No. 674252. Ideal for precise tightening of indexable inserts to the specified torque. Supplied without bit. Also available as„TQ-Station“, a 27-piece torque screwdriver set under No. 659965. I Note: eV1750. 0.6 TQ set torque s 211750 Torque measuring accuracy overall length Blade length N-m Torque screwdriver, fixed setting % mm 0,38 11.09 ±15 107 50 0,45 11.09 ±15 107 50 0,6 11.09 ±15 107 50 0,9 11.09 ±15 107 50 1,0 11.09 ±15 107 50 1,2 11.09 ±15 107 50 U 11.09 ±15 107 50 1,5 11.09 ±15 107 50 1,8 11.09 ±15 107 50 2,2 11.09 ±10 107 50 2,8 11.09 ±10 107 50 11.09 ±10 107 50 11.09 ±10 107 50 3,8 11.09 ±10 107 50 4,2 11.09 ±10 107 50 11.09 ±10 107 50 11.09 ±10 107 50 421
