SANDVIK COROMANT | Каталог SANDVIK COROMANT 2015 Токарные инструменты (Всего 1253 стр.) |
|||||
|

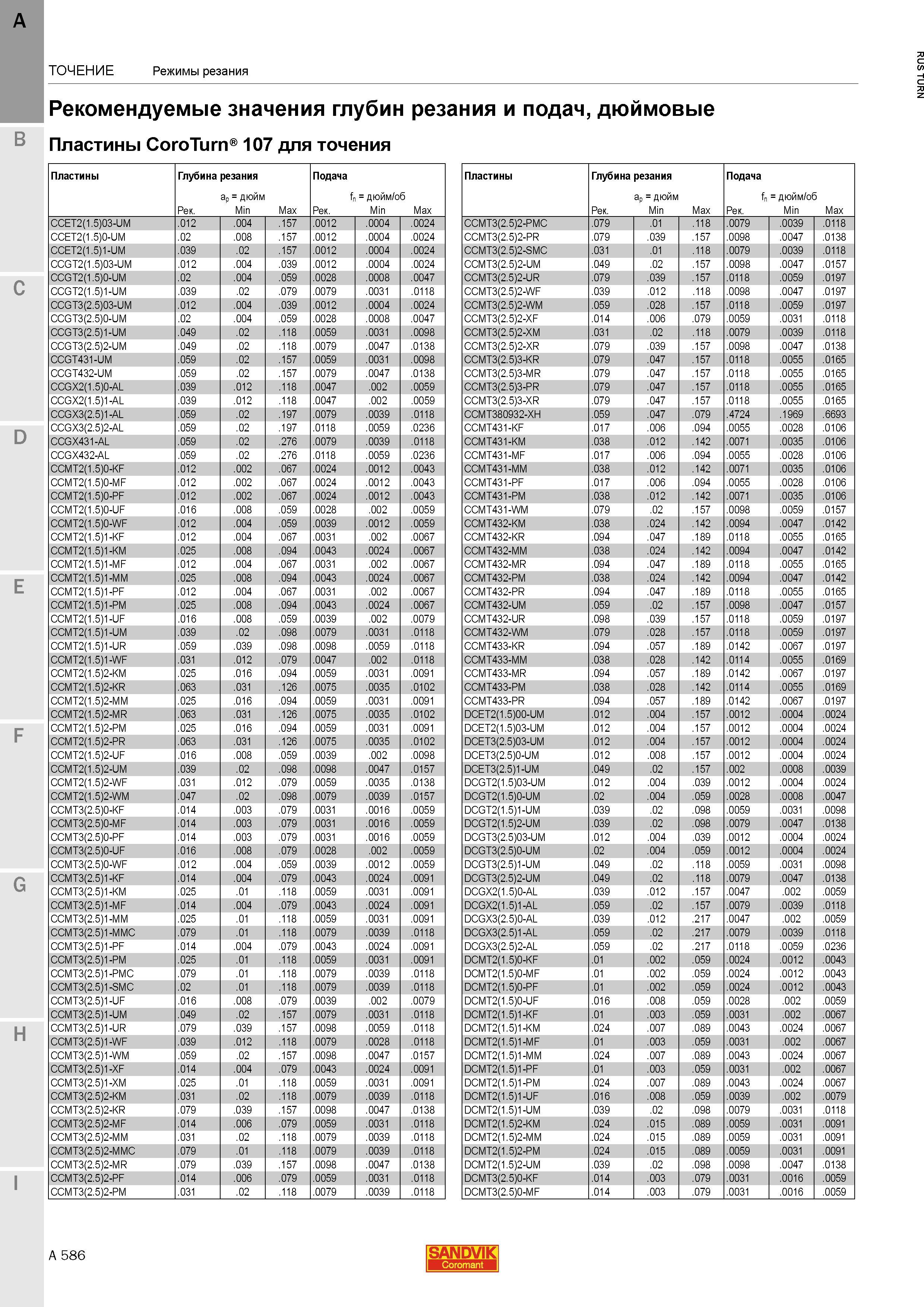

628 Каталог SANDVIK COROMANT 2015 Инструмент и оснастка для точения на станках Стр.A586 |
|||||
Рекомендуемые Режимы резания Sandvik Значения глубин резания и подач дюймовые Пластины CoroTurn 107 для точения CCET2(1 5)03-UM 012 004 157 0012Рекомендуемые Режимы резания Sandvik Значения глубин резания и подач дюймовые Пластины CoroTurn 107 для точения CCET2(1.5)03-UM .012 .004 .157 .0012 .0004 .0024 CCET2(1.5)0-UM .02 .008 .157 .0012 .0004 .0024 CCET2(1.5)1-UM .039 .02 .157 .0012 .0004 .0024 CCGT2(1.5)03-UM .012 .004 .039 .0012 .0004 .0024 CCGT2(1.5)0-UM .02 .004 .059 .0028 .0008 .0047 CCGT2(1.5)1-UM .039 .02 .079 .0079 .0031 .0118 CCGT3(2.5)03-UM .012 .004 .039 .0012 .0004 .0024 CCGT3(2.5)0-UM .02 .004 .059 .0028 .0008 .0047 CCGT3(2.5)1-UM .049 .02 .118 .0059 .0031 .0098 CCGT3(2.5)2-UM .049 .02 .118 .0079 .0047 .0138 CCGT431-UM .059 .02 .157 .0059 .0031 .0098 CCGT432-UM .059 .02 .157 .0079 .0047 .0138 CCGX2(1.5)0-AL .039 .012 .118 .0047 .002 .0059 CCGX2(1.5)1-AL .039 .012 .118 .0047 .002 .0059 CCGX3(2.5)1-AL .059 .02 .197 .0079 .0039 .0118 CCGX3(2.5)2-AL .059 .02 .197 .0118 .0059 .0236 CCGX431-AL .059 .02 .276 .0079 .0039 .0118 CCGX432-AL .059 .02 .276 .0118 .0059 .0236 CCMT2(1.5)0-KF .012 .002 .067 .0024 .0012 .0043 CCMT2(1.5)0-MF .012 .002 .067 .0024 .0012 .0043 CCMT2(1.5)0-PF .012 .002 .067 .0024 .0012 .0043 CCMT2(1.5)0-UF .016 .008 .059 .0028 .002 .0059 CCMT2(1.5)0-WF .012 .004 .059 .0039 .0012 .0059 CCMT2(1.5)1-KF .012 .004 .067 .0031 .002 .0067 CCMT2(1.5)1-KM .025 .008 .094 .0043 .0024 .0067 CCMT2(1.5)1-MF .012 .004 .067 .0031 .002 .0067 CCMT2(1.5)1-MM .025 .008 .094 .0043 .0024 .0067 CCMT2(1.5)1-PF .012 .004 .067 .0031 .002 .0067 CCMT2(1.5)1-PM .025 .008 .094 .0043 .0024 .0067 CCMT2(1.5)1-UF .016 .008 .059 .0039 .002 .0079 CCMT2(1.5)1-UM .039 .02 .098 .0079 .0031 .0118 CCMT2(1.5)1-UR .059 .039 .098 .0098 .0059 .0118 CCMT2(1.5)1-WF .031 .012 .079 .0047 .002 .0118 CCMT2(1.5)2-KM .025 .016 .094 .0059 .0031 .0091 CCMT2(1.5)2-KR .063 .031 .126 .0075 .0035 .0102 CCMT2(1.5)2-MM .025 .016 .094 .0059 .0031 .0091 CCMT2(1.5)2-MR .063 .031 .126 .0075 .0035 .0102 CCMT2(1.5)2-PM .025 .016 .094 .0059 .0031 .0091 CCMT2(1.5)2-PR .063 .031 .126 .0075 .0035 .0102 CCMT2(1.5)2-UF .016 .008 .059 .0039 .002 .0098 CCMT2(1.5)2-UM .039 .02 .098 .0098 .0047 .0157 CCMT2(1.5)2-WF .031 .012 .079 .0059 .0035 .0138 CCMT2(1.5)2-WM .047 .02 .098 .0079 .0039 .0157 CCMT3(2.5)0-KF .014 .003 .079 .0031 .0016 .0059 CCMT3(2.5)0-MF .014 .003 .079 .0031 .0016 .0059 CCMT3(2.5)0-PF .014 .003 .079 .0031 .0016 .0059 CCMT3(2.5)0-UF .016 .008 .079 .0028 .002 .0059 CCMT3(2.5)0-WF .012 .004 .059 .0039 .0012 .0059 CCMT3(2.5)1-KF .014 .004 .079 .0043 .0024 .0091 CCMT3(2.5)1-KM .025 .01 .118 .0059 .0031 .0091 CCMT3(2.5)1-MF .014 .004 .079 .0043 .0024 .0091 CCMT3(2.5)1-MM .025 .01 .118 .0059 .0031 .0091 CCMT3(2.5)1-MMC .079 .01 .118 .0079 .0039 .0118 CCMT3(2.5)1-PF .014 .004 .079 .0043 .0024 .0091 CCMT3(2.5)1-PM .025 .01 .118 .0059 .0031 .0091 CCMT3(2.5)1-PMC .079 .01 .118 .0079 .0039 .0118 CCMT3(2.5)1-SMC .02 .01 .118 .0079 .0039 .0118 CCMT3(2.5)1-UF .016 .008 .079 .0039 .002 .0079 CCMT3(2.5)1-UM .049 .02 .157 .0079 .0031 .0118 CCMT3(2.5)1-UR .079 .039 .157 .0098 .0059 .0118 CCMT3(2.5)1-WF .039 .012 .118 .0079 .0028 .0118 CCMT3(2.5)1-WM .059 .02 .157 .0098 .0047 .0157 CCMT3(2.5)1-XF .014 .004 .079 .0043 .0024 .0091 CCMT3(2.5)1-XM .025 .01 .118 .0059 .0031 .0091 CCMT3(2.5)2-KM .031 .02 .118 .0079 .0039 .0118 CCMT3(2.5)2-KR .079 .039 .157 .0098 .0047 .0138 CCMT3(2.5)2-MF .014 .006 .079 .0059 .0031 .0118 CCMT3(2.5)2-MM .031 .02 .118 .0079 .0039 .0118 CCMT3(2.5)2-MMC .079 .01 .118 .0079 .0039 .0118 CCMT3(2.5)2-MR .079 .039 .157 .0098 .0047 .0138 CCMT3(2.5)2-PF .014 .006 .079 .0059 .0031 .0118 CCMT3(2.5)2-PM .031 .02 .118 .0079 .0039 .0118 Пластины Глубина резания Подача Рек. ap дюйм Min Max fn Рек. дюйм/об Min Max CCMT3(2.5)2-PMC .079 .01 .118 .0079 .0039 .0118 CCMT3(2.5)2-PR .079 .039 .157 .0098 .0047 .0138 CCMT3(2.5)2-SMC .031 .01 .118 .0079 .0039 .0118 CCMT3(2.5)2-UM .049 .02 .157 .0098 .0047 .0157 CCMT3(2.5)2-UR .079 .039 .157 .0118 .0059 .0197 CCMT3(2.5)2-WF .039 .012 .118 .0098 .0047 .0197 CCMT3(2.5)2-WM .059 .028 .157 .0118 .0059 .0197 CCMT3(2.5)2-XF .014 .006 .079 .0059 .0031 .0118 CCMT3(2.5)2-XM .031 .02 .118 .0079 .0039 .0118 CCMT3(2.5)2-XR .079 .039 .157 .0098 .0047 .0138 CCMT3(2.5)3-KR .079 .047 .157 .0118 .0055 .0165 CCMT3(2.5)3-MR .079 .047 .157 .0118 .0055 .0165 CCMT3(2.5)3-PR .079 .047 .157 .0118 .0055 .0165 CCMT3(2.5)3-XR .079 .047 .157 .0118 .0055 .0165 CCMT380932-XH .059 .047 .079 .4724 .1969 .6693 CCMT431-KF .017 .006 .094 .0055 .0028 .0106 CCMT431-KM .038 .012 .142 .0071 .0035 .0106 CCMT431-MF .017 .006 .094 .0055 .0028 .0106 CCMT431-MM .038 .012 .142 .0071 .0035 .0106 CCMT431-PF .017 .006 .094 .0055 .0028 .0106 CCMT431-PM .038 .012 .142 .0071 .0035 .0106 CCMT431-WM .079 .02 .157 .0098 .0059 .0157 CCMT432-KM .038 .024 .142 .0094 .0047 .0142 CCMT432-KR .094 .047 .189 .0118 .0055 .0165 CCMT432-MM .038 .024 .142 .0094 .0047 .0142 CCMT432-MR .094 .047 .189 .0118 .0055 .0165 CCMT432-PM .038 .024 .142 .0094 .0047 .0142 CCMT432-PR .094 .047 .189 .0118 .0055 .0165 CCMT432-UM .059 .02 .157 .0098 .0047 .0157 CCMT432-UR .098 .039 .157 .0118 .0059 .0197 CCMT432-WM .079 .028 .157 .0118 .0059 .0197 CCMT433-KR .094 .057 .189 .0142 .0067 .0197 CCMT433-MM .038 .028 .142 .0114 .0055 .0169 CCMT433-MR .094 .057 .189 .0142 .0067 .0197 CCMT433-PM .038 .028 .142 .0114 .0055 .0169 CCMT433-PR .094 .057 .189 .0142 .0067 .0197 DCET2(1.5)00-UM .012 .004 .157 .0012 .0004 .0024 DCET2(1.5)03-UM .012 .004 .157 .0012 .0004 .0024 DCET3(2.5)03-UM .012 .004 .157 .0012 .0004 .0024 DCET3(2.5)0-UM .012 .008 .157 .0012 .0004 .0024 DCET3(2.5)1-UM .049 .02 .157 .002 .0008 .0039 DCGT2(1.5)03-UM .012 .004 .039 .0012 .0004 .0024 DCGT2(1.5)0-UM .02 .004 .059 .0028 .0008 .0047 DCGT2(1.5)1-UM .039 .02 .098 .0059 .0031 .0098 DCGT2(1.5)2-UM .039 .02 .098 .0079 .0047 .0138 DCGT3(2.5)03-UM .012 .004 .039 .0012 .0004 .0024 DCGT3(2.5)0-UM .02 .004 .059 .0012 .0004 .0024 DCGT3(2.5)1-UM .049 .02 .118 .0059 .0031 .0098 DCGT3(2.5)2-UM .049 .02 .118 .0079 .0047 .0138 DCGX2(1.5)0-AL .039 .012 .157 .0047 .002 .0059 DCGX2(1.5)1-AL .059 .02 .157 .0079 .0039 .0118 DCGX3(2.5)0-AL .039 .012 .217 .0047 .002 .0059 DCGX3(2.5)1-AL .059 .02 .217 .0079 .0039 .0118 DCGX3(2.5)2-AL .059 .02 .217 .0118 .0059 .0236 DCMT2(1.5)0-KF .01 .002 .059 .0024 .0012 .0043 DCMT2(1.5)0-MF .01 .002 .059 .0024 .0012 .0043 DCMT2(1.5)0-PF .01 .002 .059 .0024 .0012 .0043 DCMT2(1.5)0-UF .016 .008 .059 .0028 .002 .0059 DCMT2(1.5)1-KF .01 .003 .059 .0031 .002 .0067 DCMT2(1.5)1-KM .024 .007 .089 .0043 .0024 .0067 DCMT2(1.5)1-MF .01 .003 .059 .0031 .002 .0067 DCMT2(1.5)1-MM .024 .007 .089 .0043 .0024 .0067 DCMT2(1.5)1-PF .01 .003 .059 .0031 .002 .0067 DCMT2(1.5)1-PM .024 .007 .089 .0043 .0024 .0067 DCMT2(1.5)1-UF .016 .008 .059 .0039 .002 .0079 DCMT2(1.5)1-UM .039 .02 .098 .0079 .0031 .0118 DCMT2(1.5)2-KM .024 .015 .089 .0059 .0031 .0091 DCMT2(1.5)2-MM .024 .015 .089 .0059 .0031 .0091 DCMT2(1.5)2-PM .024 .015 .089 .0059 .0031 .0091 DCMT2(1.5)2-UM .039 .02 .098 .0098 .0047 .0138 DCMT3(2.5)0-KF .014 .003 .079 .0031 .0016 .0059 DCMT3(2.5)0-MF .014 .003 .079 .0031 .0016 .0059 A 586 SANDVIK Точение Пластины Глубина резания Подача Рек. ap дюйм Min Max f Рек. дюйм/об Min Max |
|||||
