SANDVIK COROMANT | Каталог SANDVIK COROMANT 2015 Токарные инструменты (Всего 1253 стр.) |
|||||
|

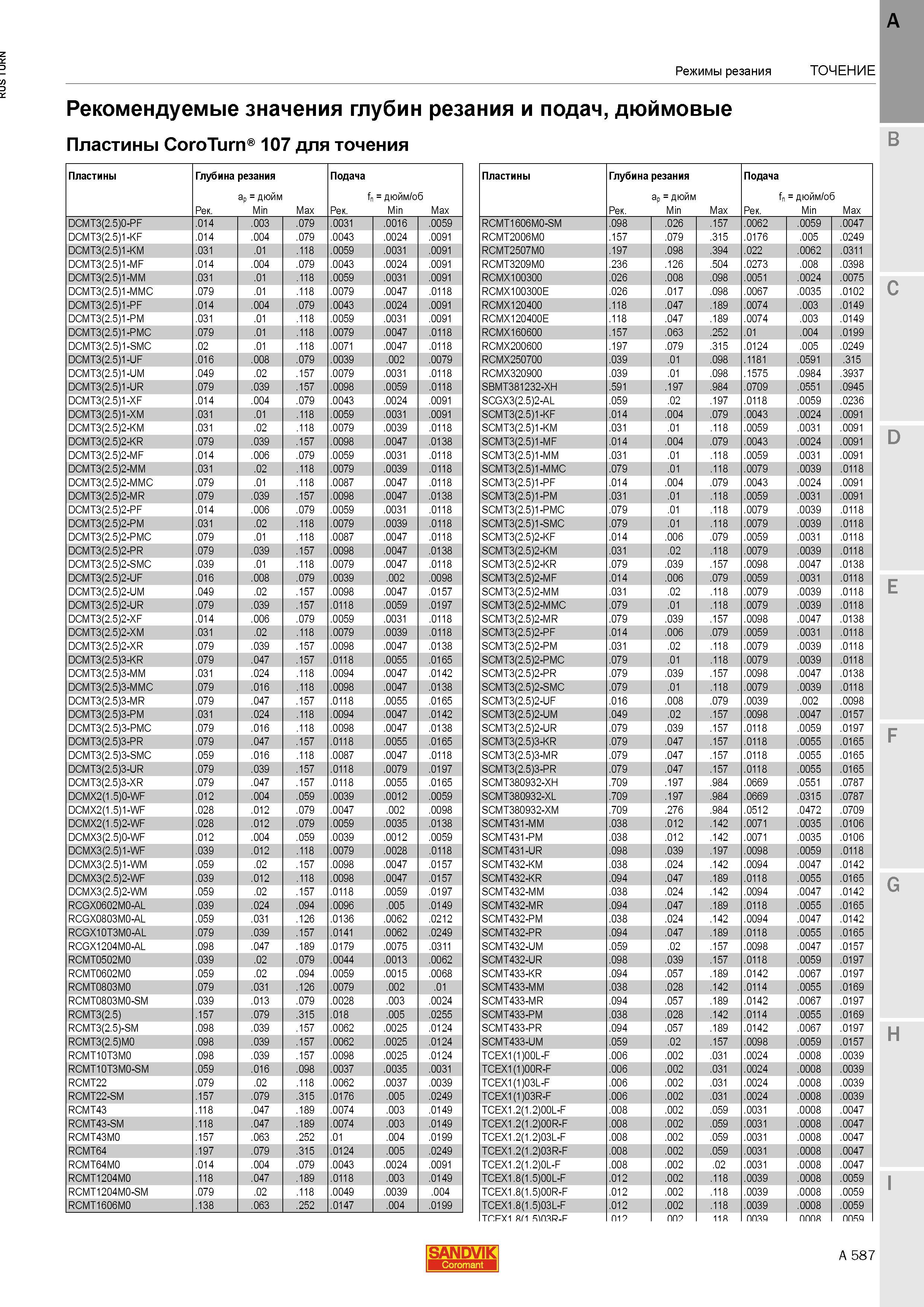

629 Каталог SANDVIK COROMANT 2015 Инструмент и оснастка для точения на станках Стр.A587 |
|||||
Рекомендуемые Режимы резания Sandvik для точения Дюймовые значения глубин резания и подач Пластины CoroTurn 107 DCMT3(2 5)0-PF 014 003 079 0031 0Рекомендуемые Режимы резания Sandvik для точения Дюймовые значения глубин резания и подач Пластины CoroTurn 107 DCMT3(2.5)0-PF .014 .003 .079 .0031 .0016 .0059 DCMT3(2.5)1-KF .014 .004 .079 .0043 .0024 .0091 DCMT3(2.5)1-KM .031 .01 .118 .0059 .0031 .0091 DCMT3(2.5)1-MF .014 .004 .079 .0043 .0024 .0091 DCMT3(2.5)1-MM .031 .01 .118 .0059 .0031 .0091 DCMT3(2.5)1-MMC .079 .01 .118 .0079 .0047 .0118 DCMT3(2.5)1-PF .014 .004 .079 .0043 .0024 .0091 DCMT3(2.5)1-PM .031 .01 .118 .0059 .0031 .0091 DCMT3(2.5)1-PMC .079 .01 .118 .0079 .0047 .0118 DCMT3(2.5)1-SMC .02 .01 .118 .0071 .0047 .0118 DCMT3(2.5)1-UF .016 .008 .079 .0039 .002 .0079 DCMT3(2.5)1-UM .049 .02 .157 .0079 .0031 .0118 DCMT3(2.5)1-UR .079 .039 .157 .0098 .0059 .0118 DCMT3(2.5)1-XF .014 .004 .079 .0043 .0024 .0091 DCMT3(2.5)1-XM .031 .01 .118 .0059 .0031 .0091 DCMT3(2.5)2-KM .031 .02 .118 .0079 .0039 .0118 DCMT3(2.5)2-KR .079 .039 .157 .0098 .0047 .0138 DCMT3(2.5)2-MF .014 .006 .079 .0059 .0031 .0118 DCMT3(2.5)2-MM .031 .02 .118 .0079 .0039 .0118 DCMT3(2.5)2-MMC .079 .01 .118 .0087 .0047 .0118 DCMT3(2.5)2-MR .079 .039 .157 .0098 .0047 .0138 DCMT3(2.5)2-PF .014 .006 .079 .0059 .0031 .0118 DCMT3(2.5)2-PM .031 .02 .118 .0079 .0039 .0118 DCMT3(2.5)2-PMC .079 .01 .118 .0087 .0047 .0118 DCMT3(2.5)2-PR .079 .039 .157 .0098 .0047 .0138 DCMT3(2.5)2-SMC .039 .01 .118 .0079 .0047 .0118 DCMT3(2.5)2-UF .016 .008 .079 .0039 .002 .0098 DCMT3(2.5)2-UM .049 .02 .157 .0098 .0047 .0157 DCMT3(2.5)2-UR .079 .039 .157 .0118 .0059 .0197 DCMT3(2.5)2-XF .014 .006 .079 .0059 .0031 .0118 DCMT3(2.5)2-XM .031 .02 .118 .0079 .0039 .0118 DCMT3(2.5)2-XR .079 .039 .157 .0098 .0047 .0138 DCMT3(2.5)3-KR .079 .047 .157 .0118 .0055 .0165 DCMT3(2.5)3-MM .031 .024 .118 .0094 .0047 .0142 DCMT3(2.5)3-MMC .079 .016 .118 .0098 .0047 .0138 DCMT3(2.5)3-MR .079 .047 .157 .0118 .0055 .0165 DCMT3(2.5)3-PM .031 .024 .118 .0094 .0047 .0142 DCMT3(2.5)3-PMC .079 .016 .118 .0098 .0047 .0138 DCMT3(2.5)3-PR .079 .047 .157 .0118 .0055 .0165 DCMT3(2.5)3-SMC .059 .016 .118 .0087 .0047 .0118 DCMT3(2.5)3-UR .079 .039 .157 .0118 .0079 .0197 DCMT3(2.5)3-XR .079 .047 .157 .0118 .0055 .0165 DCMX2(1.5)0-WF .012 .004 .059 .0039 .0012 .0059 DCMX2(1.5)1-WF .028 .012 .079 .0047 .002 .0098 DCMX2(1.5)2-WF .028 .012 .079 .0059 .0035 .0138 DCMX3(2.5)0-WF .012 .004 .059 .0039 .0012 .0059 DCMX3(2.5)1-WF .039 .012 .118 .0079 .0028 .0118 DCMX3(2.5)1-WM .059 .02 .157 .0098 .0047 .0157 DCMX3(2.5)2-WF .039 .012 .118 .0098 .0047 .0157 DCMX3(2.5)2-WM .059 .02 .157 .0118 .0059 .0197 RCGX0602M0-AL .039 .024 .094 .0096 .005 .0149 RCGX0803M0-AL .059 .031 .126 .0136 .0062 .0212 RCGX10T3M0-AL .079 .039 .157 .0141 .0062 .0249 RCGX1204M0-AL .098 .047 .189 .0179 .0075 .0311 RCMT0502M0 .039 .02 .079 .0044 .0013 .0062 RCMT0602M0 .059 .02 .094 .0059 .0015 .0068 RCMT0803M0 .079 .031 .126 .0079 .002 .01 RCMT0803M0-SM .039 .013 .079 .0028 .003 .0024 RCMT3(2.5) .157 .079 .315 .018 .005 .0255 RCMT3(2.5)-SM .098 .039 .157 .0062 .0025 .0124 RCMT3(2.5)M0 .098 .039 .157 .0062 .0025 .0124 RCMT10T3M0 .098 .039 .157 .0098 .0025 .0124 RCMT10T3M0-SM .059 .016 .098 .0037 .0035 .0031 RCMT22 .079 .02 .118 .0062 .0037 .0039 RCMT22-SM .157 .079 .315 .0176 .005 .0249 RCMT43 .118 .047 .189 .0074 .003 .0149 RCMT43-SM .118 .047 .189 .0074 .003 .0149 RCMT43M0 .157 .063 .252 .01 .004 .0199 RCMT64 .197 .079 .315 .0124 .005 .0249 RCMT64M0 .014 .004 .079 .0043 .0024 .0091 RCMT1204M0 .118 .047 .189 .0118 .003 .0149 RCMT1204M0-SM .079 .02 .118 .0049 .0039 .004 RCMT1606M0 .138 .063 .252 .0147 .004 .0199 Пластины Глубина резания Подача Рек. ap дюйм Min Max fn Рек. дюйм/об Min Max RCMT1606M0-SM .098 .026 .157 .0062 .0059 .0047 RCMT2006M0 .157 .079 .315 .0176 .005 .0249 RCMT2507M0 .197 .098 .394 .022 .0062 .0311 RCMT3209M0 .236 .126 .504 .0273 .008 .0398 RCMX100300 .026 .008 .098 .0051 .0024 .0075 RCMX100300E .026 .017 .098 .0067 .0035 .0102 RCMX120400 .118 .047 .189 .0074 .003 .0149 RCMX120400E .118 .047 .189 .0074 .003 .0149 RCMX160600 .157 .063 .252 .01 .004 .0199 RCMX200600 .197 .079 .315 .0124 .005 .0249 RCMX250700 .039 .01 .098 .1181 .0591 .315 RCMX320900 .039 .01 .098 .1575 .0984 .3937 SBMT381232-XH .591 .197 .984 .0709 .0551 .0945 SCGX3(2.5)2-AL .059 .02 .197 .0118 .0059 .0236 SCMT3(2.5)1-KF .014 .004 .079 .0043 .0024 .0091 SCMT3(2.5)1-KM .031 .01 .118 .0059 .0031 .0091 SCMT3(2.5)1-MF .014 .004 .079 .0043 .0024 .0091 SCMT3(2.5)1-MM .031 .01 .118 .0059 .0031 .0091 SCMT3(2.5)1-MMC .079 .01 .118 .0079 .0039 .0118 SCMT3(2.5)1-PF .014 .004 .079 .0043 .0024 .0091 SCMT3(2.5)1-PM .031 .01 .118 .0059 .0031 .0091 SCMT3(2.5)1-PMC .079 .01 .118 .0079 .0039 .0118 SCMT3(2.5)1-SMC .079 .01 .118 .0079 .0039 .0118 SCMT3(2.5)2-KF .014 .006 .079 .0059 .0031 .0118 SCMT3(2.5)2-KM .031 .02 .118 .0079 .0039 .0118 SCMT3(2.5)2-KR .079 .039 .157 .0098 .0047 .0138 SCMT3(2.5)2-MF .014 .006 .079 .0059 .0031 .0118 SCMT3(2.5)2-MM .031 .02 .118 .0079 .0039 .0118 SCMT3(2.5)2-MMC .079 .01 .118 .0079 .0039 .0118 SCMT3(2.5)2-MR .079 .039 .157 .0098 .0047 .0138 SCMT3(2.5)2-PF .014 .006 .079 .0059 .0031 .0118 SCMT3(2.5)2-PM .031 .02 .118 .0079 .0039 .0118 SCMT3(2.5)2-PMC .079 .01 .118 .0079 .0039 .0118 SCMT3(2.5)2-PR .079 .039 .157 .0098 .0047 .0138 SCMT3(2.5)2-SMC .079 .01 .118 .0079 .0039 .0118 SCMT3(2.5)2-UF .016 .008 .079 .0039 .002 .0098 SCMT3(2.5)2-UM .049 .02 .157 .0098 .0047 .0157 SCMT3(2.5)2-UR .079 .039 .157 .0118 .0059 .0197 SCMT3(2.5)3-KR .079 .047 .157 .0118 .0055 .0165 SCMT3(2.5)3-MR .079 .047 .157 .0118 .0055 .0165 SCMT3(2.5)3-PR .079 .047 .157 .0118 .0055 .0165 SCMT380932-XH .709 .197 .984 .0669 .0551 .0787 SCMT380932-XL .709 .197 .984 .0669 .0315 .0787 SCMT380932-XM .709 .276 .984 .0512 .0472 .0709 SCMT431-MM .038 .012 .142 .0071 .0035 .0106 SCMT431-PM .038 .012 .142 .0071 .0035 .0106 SCMT431-UR .098 .039 .197 .0098 .0059 .0118 SCMT432-KM .038 .024 .142 .0094 .0047 .0142 SCMT432-KR .094 .047 .189 .0118 .0055 .0165 SCMT432-MM .038 .024 .142 .0094 .0047 .0142 SCMT432-MR .094 .047 .189 .0118 .0055 .0165 SCMT432-PM .038 .024 .142 .0094 .0047 .0142 SCMT432-PR .094 .047 .189 .0118 .0055 .0165 SCMT432-UM .059 .02 .157 .0098 .0047 .0157 SCMT432-UR .098 .039 .157 .0118 .0059 .0197 SCMT433-KR .094 .057 .189 .0142 .0067 .0197 SCMT433-MM .038 .028 .142 .0114 .0055 .0169 SCMT433-MR .094 .057 .189 .0142 .0067 .0197 SCMT433-PM .038 .028 .142 .0114 .0055 .0169 SCMT433-PR .094 .057 .189 .0142 .0067 .0197 SCMT433-UM .059 .02 .157 .0098 .0059 .0157 TCEX1(1)00L-F .006 .002 .031 .0024 .0008 .0039 TCEX1(1)00R-F .006 .002 .031 .0024 .0008 .0039 TCEX1(1)03L-F .006 .002 .031 .0024 .0008 .0039 TCEX1(1)03R-F .006 .002 .031 .0024 .0008 .0039 TCEX1.2(1.2)00L-F .008 .002 .059 .0031 .0008 .0047 TCEX1.2(1.2)00R-F .008 .002 .059 .0031 .0008 .0047 TCEX1.2(1.2)03L-F .008 .002 .059 .0031 .0008 .0047 TCEX1.2(1.2)03R-F .008 .002 .059 .0031 .0008 .0047 TCEX1.2(1.2)0L-F .008 .002 .02 .0031 .0008 .0047 TCEX1.8(1.5)00L-F .012 .002 .118 .0039 .0008 .0059 TCEX1.8(1.5)00R-F .012 .002 .118 .0039 .0008 .0059 TCEX1.8(1.5)03L-F .012 .002 .118 .0039 .0008 .0059 TCEX1 8(1 5)03R-F 012 002 118 0039 0008 0059 SANDVIK A 587 Точение Пластины Глубина резания Подача Рек. ap дюйм Min Max fn Рек. дюйм/об Min Max |
|||||
