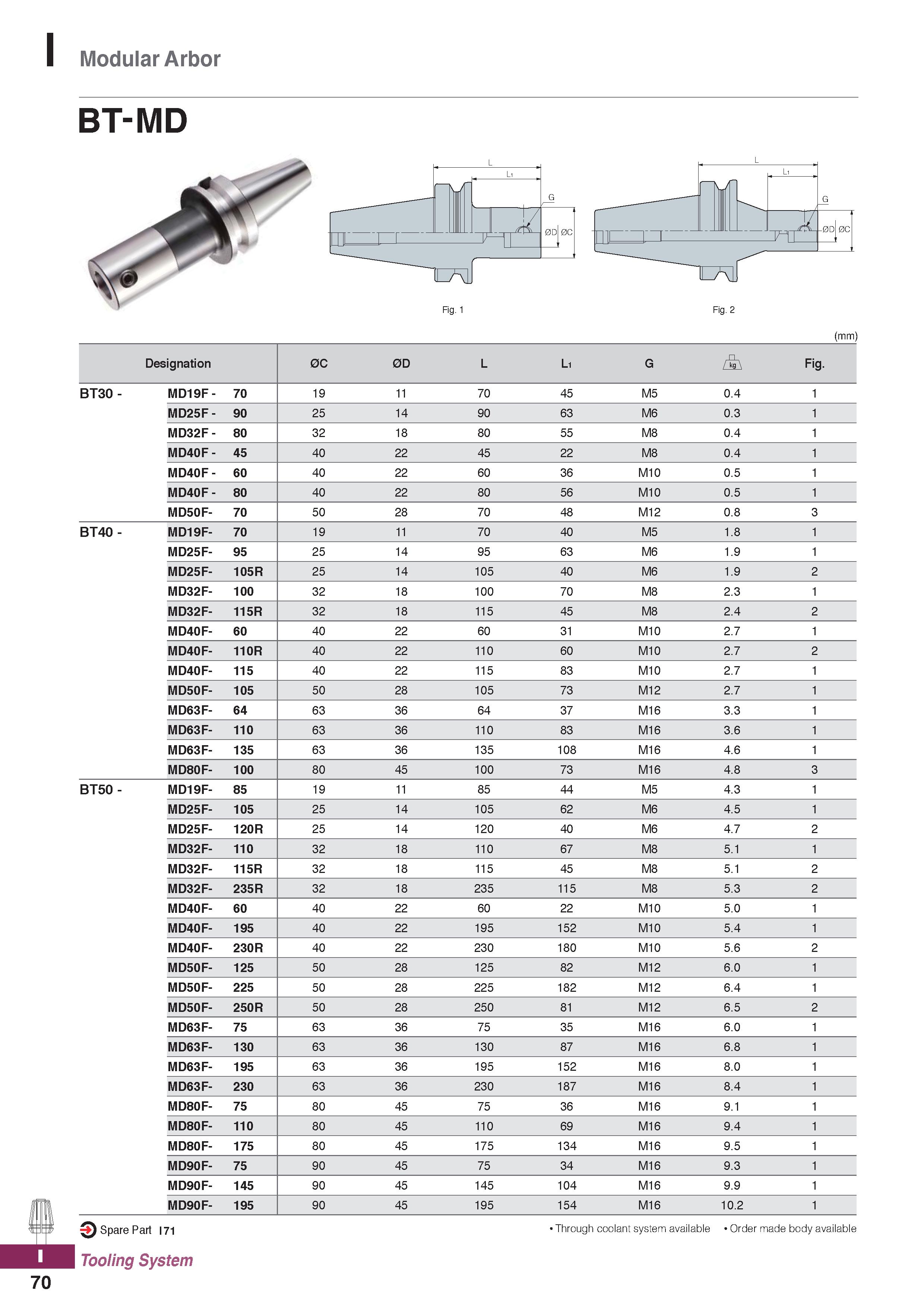

Modular Arbor BT-MD Fig. 1 Fig. 2 (mm) Designation 0C 0D L L1 G Fig. BT30 - MD19F - 70 19 11 70 45 M5 0.4 1 MD25F - 90 25 14 90 63 M6 0.3 1 MD32F - 80 32 18 80 55 M8 0.4 1 MD40F - 45 40 22 45 22 M8 0.4 1 MD40F - 60 40 22 60 36 M10 0.5 1 MD40F - 80 40 22 80 56 M10 0.5 1 MD50F- 70 50 28 70 48 M12 0.8 BT40 - MD19F- 70 19 11 70 40 M5 1.8 1 MD25F- 95 25 14 95 63 M6 1.9 1 MD25F- 105R 25 14 105 40 M6 1.9 MD32F- 100 32 18 100 70 M8 2.3 1 MD32F- 115R 32 18 115 45 M8 2.4 MD40F- 60 40 22 60 31 M10 2.7 1 MD40F- 110R 40 22 110 60 M10 2.7 MD40F- 115 40 22 115 83 M10 2.7 1 MD50F- 105 50 28 105 73 M12 2.7 1 MD63F- 64 63 36 64 37 M16 3.3 1 MD63F- 110 63 36 110 83 M16 3.6 1 MD63F- 135 63 36 135 108 M16 4.6 1 MD80F- 100 80 45 100 73 M16 4.8 BT50 - MD19F- 85 19 11 85 44 M5 4.3 1 MD25F- 105 25 14 105 62 M6 4.5 1 MD25F- 120R 25 14 120 40 M6 4.7 MD32F- 110 32 18 110 67 M8 5.1 1 MD32F- 115R 32 18 115 45 M8 5.1 MD32F- 235R 32 18 235 115 M8 5.3 MD40F- 60 40 22 60 22 M10 5.0 1 MD40F- 195 40 22 195 152 M10 5.4 1 MD40F- 230R 40 22 230 180 M10 5.6 MD50F- 125 50 28 125 82 M12 6.0 1 MD50F- 225 50 28 225 182 M12 6.4 1 MD50F- 250R 50 28 250 81 M12 6.5 MD63F- 75 63 36 75 35 M16 6.0 1 MD63F- 130 63 36 130 87 M16 6.8 1 MD63F- 195 63 36 195 152 M16 8.0 1 MD63F- 230 63 36 230 187 M16 8.4 1 MD80F- 75 80 45 75 36 M16 9.1 1 MD80F- 110 80 45 110 69 M16 9.4 1 MD80F- 175 80 45 175 134 M16 9.5 1 MD90F- 75 90 45 75 34 M16 9.3 1 MD90F- 145 90 45 145 104 M16 9.9 1 MD90F- 195 90 45 195 154 M16 10.2 1 Spare Part I 71 Tooling System Through coolant system available Order made body available 70
