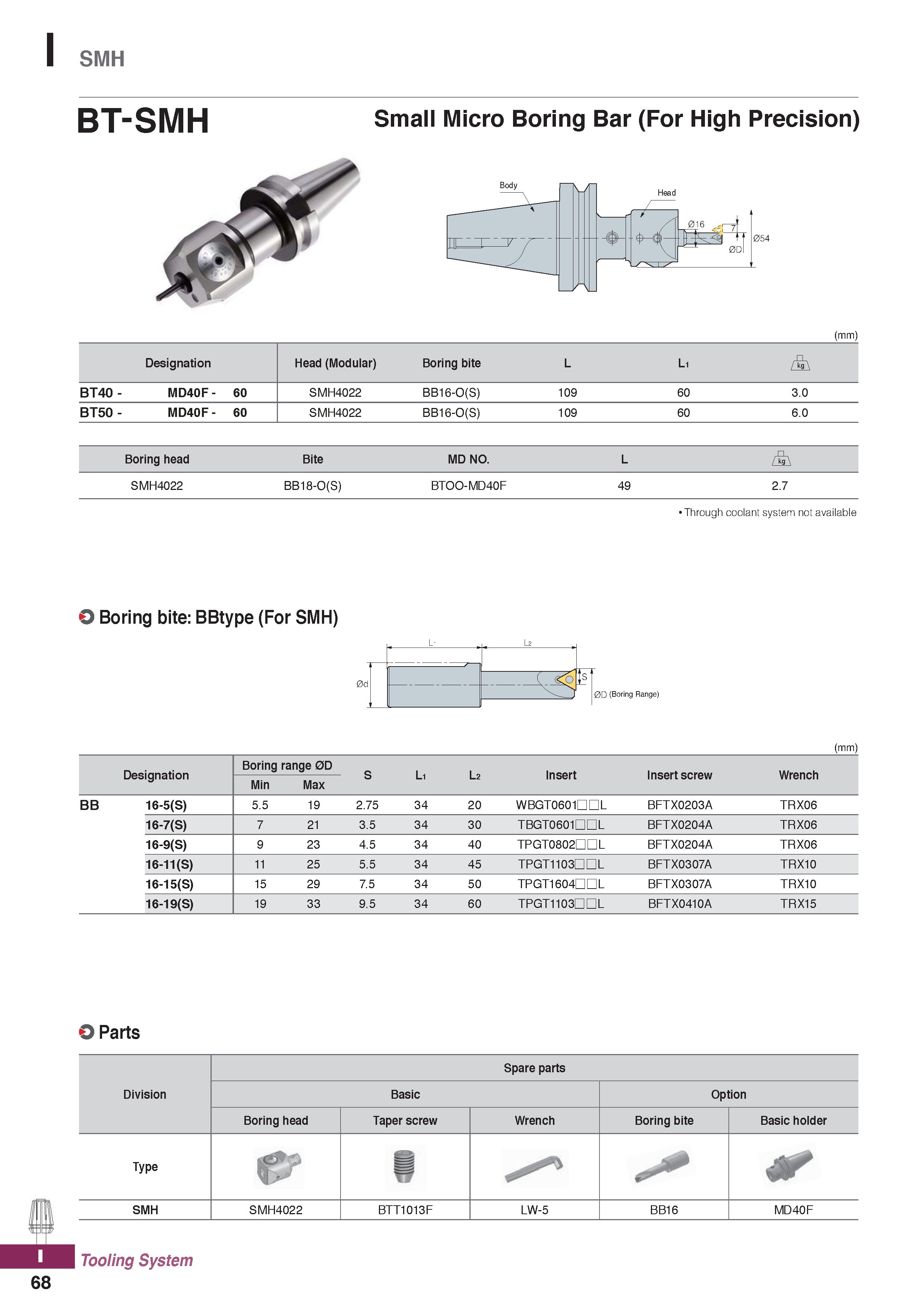

I SMH BT-SMH Small Micro Boring Bar (For High Precision) (mm) Designation Head (Modular) Boring bite L L1 BT40 - MD40F - 60 SMH4O22 BB16-0(S) 1O9 60 3.O BT50 - MD40F - 60 SMH4O22 BB16-0(S) 1O9 60 6.O Boring head Bite MD NO. L A SMH4O22 BB18-0(S) BTOO-MD4OF 49 2.7 Through coolant system not available O Boring bite: BBtype (For SMH) 0c 0D (Boring Range) (mm) Designation Boring range 0D S L1 L2 Insert Insert screw Wrench Min Max BB 16-5(S) 5.5 19 2.75 34 20 WBGTO6O1DDL BFTXO2O3A TRXO6 16-7(S) 7 21 3.5 34 30 TBGTO6O1DDL BFTXO2O4A TRXO6 16-9(S) 9 23 4.5 34 40 TPGTO8O2DDL BFTXO2O4A TRXO6 16-11(S) 11 25 5.5 34 45 TPGT11O3 DDL BFTXO3O7A TRX1O 16-15(S) 15 29 7.5 34 50 TPGT16O4DDL BFTXO3O7A TRX1O 16-19(S) 19 33 9.5 34 60 TPGT11O3DDL BFTXO41OA TRX15 O Parts Division Spare parts Basic Option Boring head Taper screw Wrench Boring bite Basic holder Type t & m V SMH SMH4O22 BTT1O13F LW-5 BB16 MD4OF Tooling System 68 L
