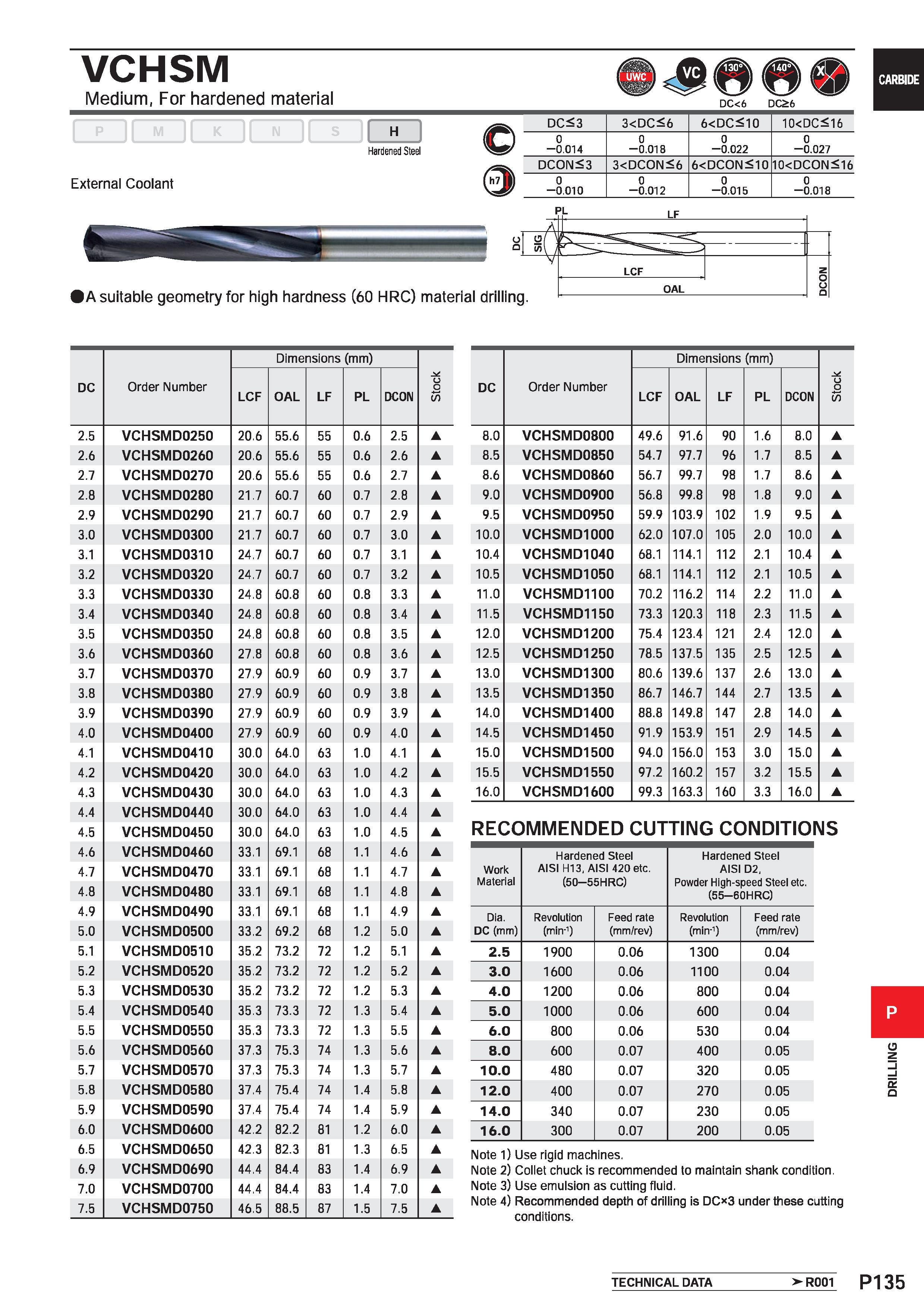

VCHSM Medium, For hardened material M ll K If External Coolant H Hardened Steel DC<6 DC£6 DC<3 3A suitable geometry for high hardness (60 HRC) material drilling of \ />V / '.. - J LCF z OAL o DC Order Number Dimensions (mm) Stock LCF OAL LF PL DCON 2.5 VCHSMD0250 20.6 55.6 55 0.6 2.5 2.6 VCHSMD0260 20.6 55.6 55 0.6 2.6 2.7 VCHSMD0270 20.6 55.6 55 0.6 2.7 2.8 VCHSMD0280 21.7 60.7 60 0.7 2.8 2.9 VCHSMD0290 21.7 60.7 60 0.7 2.9 3.0 VCHSMD0300 21.7 60.7 60 0.7 3.0 3.1 VCHSMD0310 24.7 60.7 60 0.7 3.1 3.2 VCHSMD0320 24.7 60.7 60 0.7 3.2 3.3 VCHSMD0330 24.8 60.8 60 0.8 3.3 3.4 VCHSMD0340 24.8 60.8 60 0.8 3.4 3.5 VCHSMD0350 24.8 60.8 60 0.8 3.5 3.6 VCHSMD0360 27.8 60.8 60 0.8 3.6 3.7 VCHSMD0370 27.9 60.9 60 0.9 3.7 3.8 VCHSMD0380 27.9 60.9 60 0.9 3.8 3.9 VCHSMD0390 27.9 60.9 60 0.9 3.9 4.0 VCHSMD0400 27.9 60.9 60 0.9 4.0 4.1 VCHSMD0410 30.0 64.0 63 1.0 4.1 4.2 VCHSMD0420 30.0 64.0 63 1.0 4.2 4.3 VCHSMD0430 30.0 64.0 63 1.0 4.3 4.4 VCHSMD0440 30.0 64.0 63 1.0 4.4 4.5 VCHSMD0450 30.0 64.0 63 1.0 4.5 4.6 VCHSMD0460 33.1 69.1 68 1.1 4.6 4.7 VCHSMD0470 33.1 69.1 68 1.1 4.7 4.8 VCHSMD0480 33.1 69.1 68 1.1 4.8 4.9 VCHSMD0490 33.1 69.1 68 1.1 4.9 5.0 VCHSMD0500 33.2 69.2 68 1.2 5.0 5.1 VCHSMD0510 35.2 73.2 72 1.2 5.1 5.2 VCHSMD0520 35.2 73.2 72 1.2 5.2 5.3 VCHSMD0530 35.2 73.2 72 1.2 5.3 5.4 VCHSMD0540 35.3 73.3 72 1.3 5.4 5.5 VCHSMD0550 35.3 73.3 72 1.3 5.5 5.6 VCHSMD0560 37.3 75.3 74 1.3 5.6 5.7 VCHSMD0570 37.3 75.3 74 1.3 5.7 5.8 VCHSMD0580 37.4 75.4 74 1.4 5.8 5.9 VCHSMD0590 37.4 75.4 74 1.4 5.9 6.0 VCHSMD0600 42.2 82.2 81 1.2 6.0 6.5 VCHSMD0650 42.3 82.3 81 1.3 6.5 6.9 VCHSMD0690 44.4 84.4 83 1.4 6.9 7.0 VCHSMD0700 44.4 84.4 83 1.4 7.0 7.5 VCHSMD0750 46.5 88.5 87 1.5 7.5 DC Order Number Dimensions (mm) Stock LCF OAL LF PL DCON 8.0 VCHSMD0800 49.6 91.6 90 1.6 8.0 8.5 VCHSMD0850 54.7 97.7 96 1.7 8.5 8.6 VCHSMD0860 56.7 99.7 98 1.7 8.6 9.0 VCHSMD0900 56.8 99.8 98 1.8 9.0 9.5 VCHSMD0950 59.9 103.9 102 1.9 9.5 10.0 VCHSMD1000 62.0 107.0 105 2.0 10.0 10.4 VCHSMD1040 68.1 114.1 112 2.1 10.4 10.5 VCHSMD1050 68.1 114.1 112 2.1 10.5 11.0 VCHSMD1100 70.2 116.2 114 2.2 11.0 11.5 VCHSMD1150 73.3 120.3 118 2.3 11.5 12.0 VCHSMD1200 75.4 123.4 121 2.4 12.0 12.5 VCHSMD1250 78.5 137.5 135 2.5 12.5 13.0 VCHSMD1300 80.6 139.6 137 2.6 13.0 13.5 VCHSMD1350 86.7 146.7 144 2.7 13.5 14.0 VCHSMD1400 88.8 149.8 147 2.8 14.0 14.5 VCHSMD1450 91.9 153.9 151 2.9 14.5 15.0 VCHSMD1500 94.0 156.0 153 3.0 15.0 15.5 VCHSMD1550 97.2 160.2 157 3.2 15.5 16.0 VCHSMD1600 99.3 163.3 160 3.3 16.0 RECOMMENDED CUTTING CONDITIONS Work Material Hardened Steel AISI H13, AISI 420 etc. (50 55HRC) Hardened Steel AISI D2, Powder High-speed Steel etc. (55 60HRC) Dia. DC (mm) Revolution (min-1) Feed rate (mm/rev) Revolution (min-1) Feed rate (mm/rev) 2.5 1900 0.06 1300 0.04 3.0 1600 0.06 1100 0.04 4.0 1200 0.06 800 0.04 5.0 1000 0.06 600 0.04 6.0 800 0.06 530 0.04 8.0 600 0.07 400 0.05 10.0 480 0.07 320 0.05 12.0 400 0.07 270 0.05 14.0 340 0.07 230 0.05 16.0 300 0.07 200 0.05 Note 1) Use rigid machines. Note 2) Collet chuck is recommended to maintain shank condition. Note 3) Use emulsion as cutting fluid. Note 4) Recommended depth of drilling is DC 3 under these cutting conditions. TECHNICAL DATA > R001 CARBIDE O' Q P135
