1590 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.P134

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. P134 1590 Lab2u

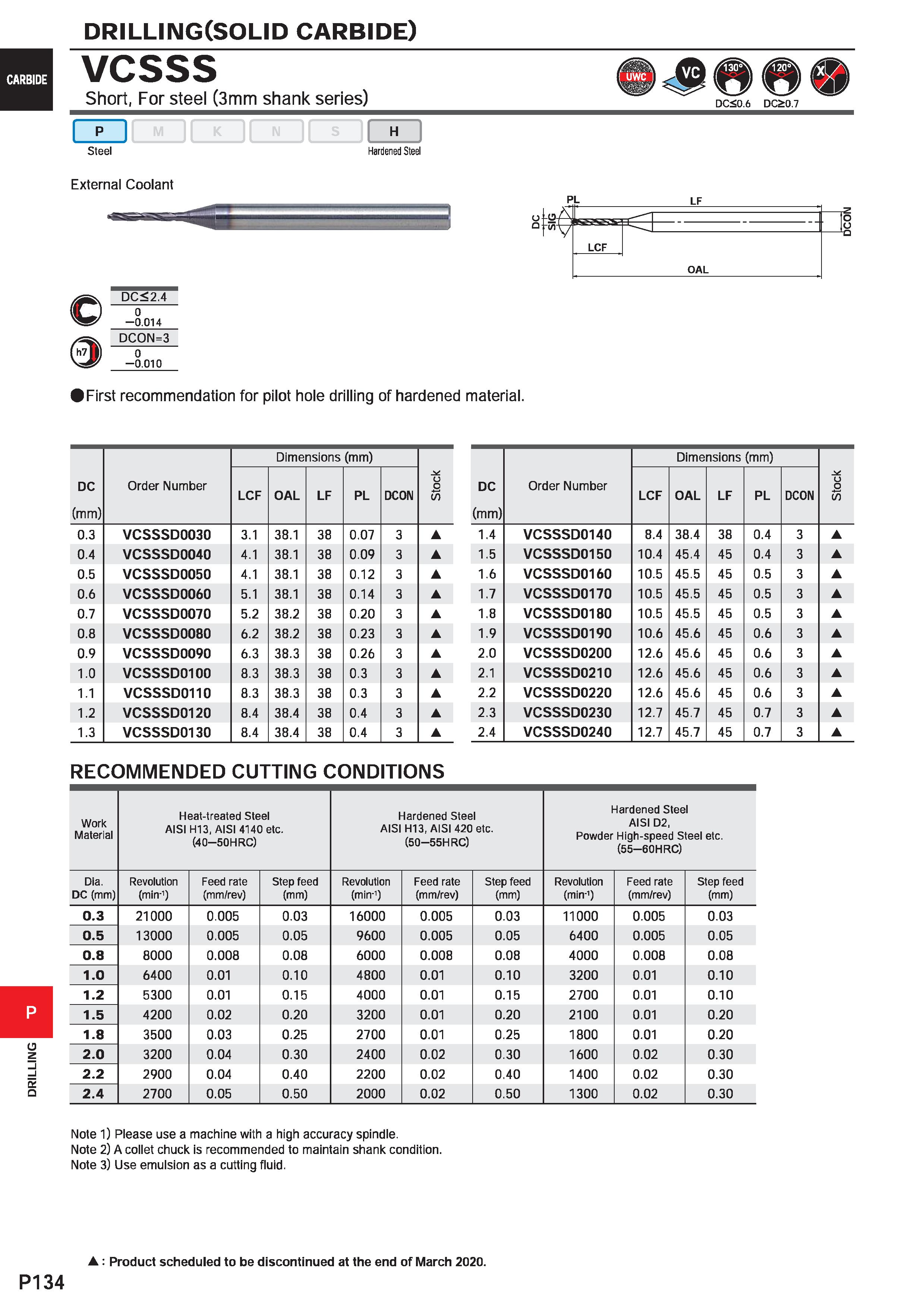

DRILLING(SOLID carbide) vcsss o ee Short, For steel (3mm shank series) Dc3T6 dcST p I H Steel Hardened Steel External Coolant First recommendation for pilot hole drilling of hardened P L LF -°r\ 8 /vV LCF OAL material. DC (mm) Order Number Dimensions (mm) Stock LCF OAL LF PL DCON 0.3 VCSSSD0030 3.1 38.1 38 0.07 3 0.4 VCSSSD0040 4.1 38.1 38 0.09 3 0.5 VCSSSD0050 4.1 38.1 38 0.12 3 0.6 VCSSSD0060 5.1 38.1 38 0.14 3 0.7 VCSSSD0070 5.2 38.2 38 0.20 3 0.8 VCSSSD0080 6.2 38.2 38 0.23 3 0.9 VCSSSD0090 6.3 38.3 38 0.26 3 1.0 VCSSSD0100 8.3 38.3 38 0.3 3 1.1 VCSSSD0110 8.3 38.3 38 0.3 3 1.2 VCSSSD0120 8.4 38.4 38 0.4 3 1.3 VCSSSD0130 8.4 38.4 38 0.4 3 DC (mm) Order Number Dimensions (mm) Stock LCF OAL LF PL DCON 1.4 VCSSSD0140 8.4 38.4 38 0.4 3 1.5 VCSSSD0150 10.4 45.4 45 0.4 3 1.6 VCSSSD0160 10.5 45.5 45 0.5 3 1.7 VCSSSD0170 10.5 45.5 45 0.5 3 1.8 VCSSSD0180 10.5 45.5 45 0.5 3 1.9 VCSSSD0190 10.6 45.6 45 0.6 3 2.0 VCSSSD0200 12.6 45.6 45 0.6 3 2.1 VCSSSD0210 12.6 45.6 45 0.6 3 2.2 VCSSSD0220 12.6 45.6 45 0.6 3 2.3 VCSSSD0230 12.7 45.7 45 0.7 3 2.4 VCSSSD0240 12.7 45.7 45 0.7 3 RECOMMENDED CUTTING CONDITIONS Work Material Heat-treated Steel AISI H13, AISI 4140 etc. (40 50HRC) Hardened Steel AISI H13, AISI 420 etc. (50-55HRC) Hardened Steel AISI D2, Powder High-speed Steel etc. (55 60HRC) Dia. DC (mm) Revolution (min-1) Feed rate (mm/rev) Step feed (mm) Revolution (min-1) Feed rate (mm/rev) Step feed (mm) Revolution (min-1) Feed rate (mm/rev) Step feed (mm) 0.3 21000 0.005 0.03 16000 0.005 0.03 11000 0.005 0.03 0.5 13000 0.005 0.05 9600 0.005 0.05 6400 0.005 0.05 0.8 8000 0.008 0.08 6000 0.008 0.08 4000 0.008 0.08 1.0 6400 0.01 0.10 4800 0.01 0.10 3200 0.01 0.10 1.2 5300 0.01 0.15 4000 0.01 0.15 2700 0.01 0.10 1.5 4200 0.02 0.20 3200 0.01 0.20 2100 0.01 0.20 1.8 3500 0.03 0.25 2700 0.01 0.25 1800 0.01 0.20 2.0 3200 0.04 0.30 2400 0.02 0.30 1600 0.02 0.30 2.2 2900 0.04 0.40 2200 0.02 0.40 1400 0.02 0.30 2.4 2700 0.05 0.50 2000 0.02 0.50 1300 0.02 0.30 Note 1) Please use a machine with a high accuracy spindle. Note 2) A collet chuck is recommended to maintain shank condition. Note 3) Use emulsion as a cutting fluid. : Product scheduled to be discontinued at the end of March 2020.
