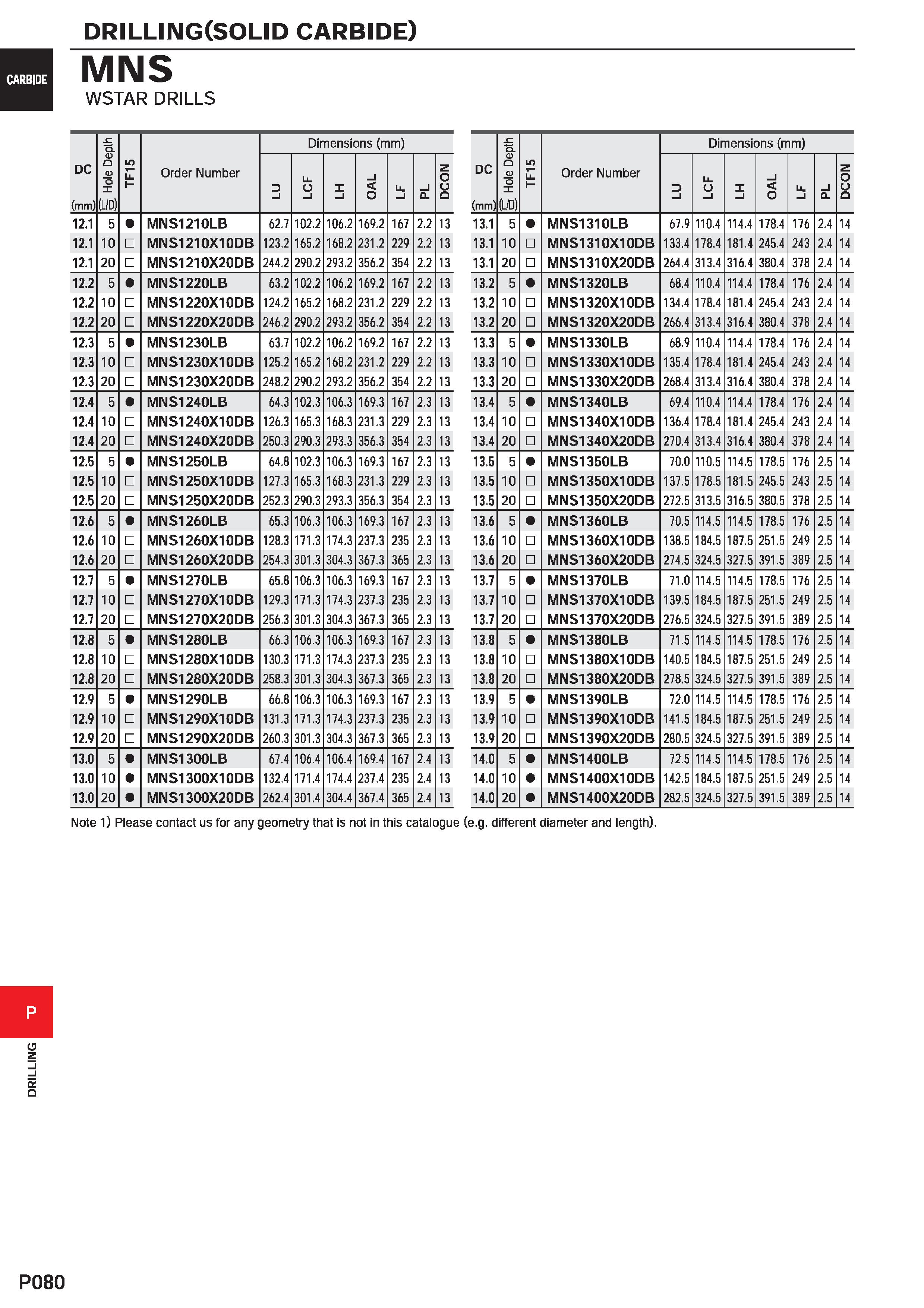

DRILLING(SOLID carbide) MNS WSTAR DRILLS DC (mm) tz Q. D O D O (L/D) SLJ1 Order Number Dimensions (mm) D l Li. O l X i i O Li. l i Q. DCON 12.1 5 MNS1210LB 62.7 102.2 106.2 169.2 167 2.2 13 12.1 10 MNS1210X10DB 123.2 165.2 168.2 231.2 229 2.2 13 12.1 20 MNS1210X20DB 244.2 290.2 293.2 356.2 354 2.2 13 12.2 5 MNS1220LB 63.2 102.2 106.2 169.2 167 2.2 13 12.2 10 MNS1220X10DB 124.2 165.2 168.2 231.2 229 2.2 13 12.2 20 MNS1220X20DB 246.2 290.2 293.2 356.2 354 2.2 13 12.3 5 MNS1230LB 63.7 102.2 106.2 169.2 167 2.2 13 12.3 10 MNS1230X10DB 125.2 165.2 168.2 231.2 229 2.2 13 12.3 20 MNS1230X20DB 248.2 290.2 293.2 356.2 354 2.2 13 12.4 5 MNS1240LB 64.3 102.3 106.3 169.3 167 2.3 13 12.4 10 MNS1240X10DB 126.3 165.3 168.3 231.3 229 2.3 13 12.4 20 MNS1240X20DB 250.3 290.3 293.3 356.3 354 2.3 13 12.5 5 MNS1250LB 64.8 102.3 106.3 169.3 167 2.3 13 12.5 10 MNS1250X10DB 127.3 165.3 168.3 231.3 229 2.3 13 12.5 20 MNS1250X20DB 252.3 290.3 293.3 356.3 354 2.3 13 12.6 5 MNS1260LB 65.3 106.3 106.3 169.3 167 2.3 13 12.6 10 MNS1260X10DB 128.3 171.3 174.3 237.3 235 2.3 13 12.6 20 MNS1260X20DB 254.3 301.3 304.3 367.3 365 2.3 13 12.7 5 MNS1270LB 65.8 106.3 106.3 169.3 167 2.3 13 12.7 10 MNS1270X10DB 129.3 171.3 174.3 237.3 235 2.3 13 12.7 20 MNS1270X20DB 256.3 301.3 304.3 367.3 365 2.3 13 12.8 5 MNS1280LB 66.3 106.3 106.3 169.3 167 2.3 13 12.8 10 MNS1280X10DB 130.3 171.3 174.3 237.3 235 2.3 13 12.8 20 MNS1280X20DB 258.3 301.3 304.3 367.3 365 2.3 13 12.9 5 MNS1290LB 66.8 106.3 106.3 169.3 167 2.3 13 12.9 10 MNS1290X10DB 131.3 171.3 174.3 237.3 235 2.3 13 12.9 20 MNS1290X20DB 260.3 301.3 304.3 367.3 365 2.3 13 13.0 5 MNS1300LB 67.4 106.4 106.4 169.4 167 2.4 13 13.0 10 MNS1300X10DB 132.4 171.4 174.4 237.4 235 2.4 13 13.0 20 MNS1300X20DB 262.4 301.4 304.4 367.4 365 2.4 13 DC (mm) 5 Hole Depth TF15 Order Number Dimensions (mm) 3 l LCF X i OAL Li. l i 0. DCON 13.1 5 MNS1310LB 67.9 110.4 114.4 178.4 176 2.4 14 13.1 10 MNS1310X10DB 133.4 178.4 181.4 245.4 243 2.4 14 13.1 20 MNS1310X20DB 264.4 313.4 316.4 380.4 378 2.4 14 13.2 5 MNS1320LB 68.4 110.4 114.4 178.4 176 2.4 14 13.2 10 MNS1320X10DB 134.4 178.4 181.4 245.4 243 2.4 14 13.2 20 MNS1320X20DB 266.4 313.4 316.4 380.4 378 2.4 14 13.3 5 MNS1330LB 68.9 110.4 114.4 178.4 176 2.4 14 13.3 10 MNS1330X10DB 135.4 178.4 181.4 245.4 243 2.4 14 13.3 20 MNS1330X20DB 268.4 313.4 316.4 380.4 378 2.4 14 13.4 5 MNS1340LB 69.4 110.4 114.4 178.4 176 2.4 14 13.4 10 MNS1340X10DB 136.4 178.4 181.4 245.4 243 2.4 14 13.4 20 MNS1340X20DB 270.4 313.4 316.4 380.4 378 2.4 14 13.5 5 MNS1350LB 70.0 110.5 114.5 178.5 176 2.5 14 13.5 10 MNS1350X10DB 137.5 178.5 181.5 245.5 243 2.5 14 13.5 20 MNS1350X20DB 272.5 313.5 316.5 380.5 378 2.5 14 13.6 5 MNS1360LB 70.5 114.5 114.5 178.5 176 2.5 14 13.6 10 MNS1360X10DB 138.5 184.5 187.5 251.5 249 2.5 14 13.6 20 MNS1360X20DB 274.5 324.5 327.5 391.5 389 2.5 14 13.7 5 MNS1370LB 71.0 114.5 114.5 178.5 176 2.5 14 13.7 10 MNS1370X1ODB 139.5 184.5 187.5 251.5 249 2.5 14 13.7 20 MNS1370X20DB 276.5 324.5 327.5 391.5 389 2.5 14 13.8 5 MNS1380LB 71.5 114.5 114.5 178.5 176 2.5 14 13.8 10 MNS1380X1 ODB 140.5 184.5 187.5 251.5 249 2.5 14 13.8 20 MNS1380X20DB 278.5 324.5 327.5 391.5 389 2.5 14 13.9 5 MNS1390LB 72.0 114.5 114.5 178.5 176 2.5 14 13.9 10 MNS1390X1 ODB 141.5 184.5 187.5 251.5 249 2.5 14 13.9 20 MNS1390X20DB 280.5 324.5 327.5 391.5 389 2.5 14 14.0 5 MNS1400LB 72.5 114.5 114.5 178.5 176 2.5 14 14.0 10 MNS1400X1 ODB 142.5 184.5 187.5 251.5 249 2.5 14 14.0 20 MNS1400X20DB 282.5 324.5 327.5 391.5 389 2.5 14 Note 1) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length).
