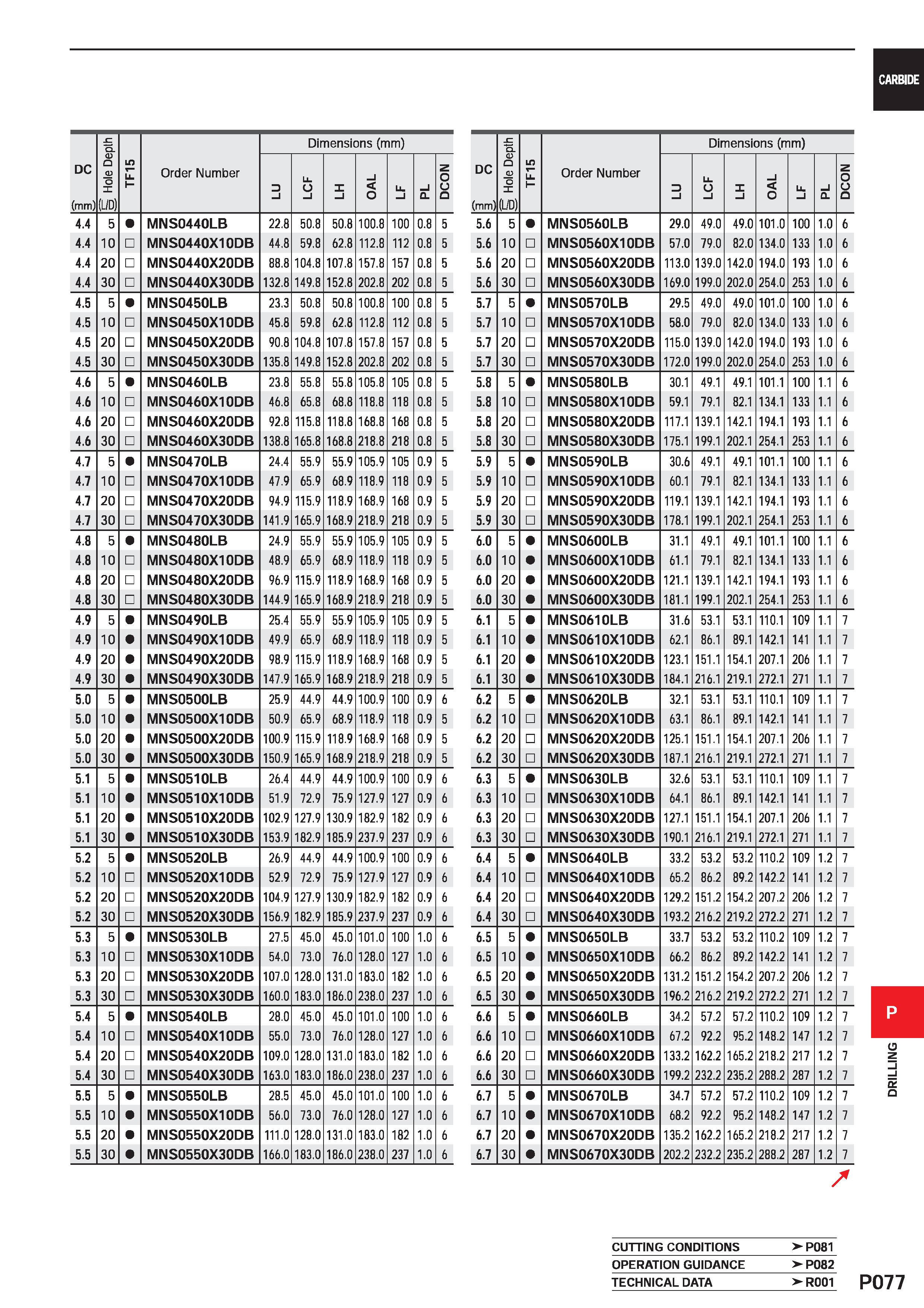

CARBIDE DC (mm) tz Q. D O D O (L/D) SLJ1 Order Number Dimensions (mm) DC (mm) 5 Hole Depth TF15 Order Number Dimensions (mm) D l Li. o l X i i O Li. l i Q. z Q 3 l Ll O l X i i O Li. l i 0. DCON 4.4 5 MNS0440LB 22.8 50.8 50.8 100.8 100 0.8 5 5.6 5 MNS0560LB 29.0 49.0 49.0 101.0 100 1.0 6 4.4 10 MNS0440X1ODB 44.8 59.8 62.8 112.8 112 0.8 5 5.6 10 MNS0560X10DB 57.0 79.0 82.0 134.0 133 1.0 6 4.4 20 MIMS0440X20DB 88.8 104.8 107.8 157.8 157 0.8 5 5.6 20 MNS0560X20DB 113.0 139.0 142.0 194.0 193 1.0 6 4.4 30 MNS0440X30DB 132.8 149.8 152.8 202.8 202 0.8 5 5.6 30 MNS0560X30DB 169.0 199.0 202.0 254.0 253 1.0 6 4.5 5 MNS0450LB 23.3 50.8 50.8 100.8 100 0.8 5 5.7 5 MNS0570LB 29.5 49.0 49.0 101.0 100 1.0 6 4.5 10 MNS0450X1 ODB 45.8 59.8 62.8 112.8 112 0.8 5 5.7 10 MNS0570X1 ODB 58.0 79.0 82.0 134.0 133 1.0 6 4.5 20 MNS0450X20DB 90.8 104.8 107.8 157.8 157 0.8 5 5.7 20 MNS0570X20DB 115.0 139.0 142.0 194.0 193 1.0 6 4.5 30 MIMS0450X30DB 135.8 149.8 152.8 202.8 202 0.8 5 5.7 30 MNS0570X30DB 172.0 199.0 202.0 254.0 253 1.0 6 4.6 5 MNS0460LB 23.8 55.8 55.8 105.8 105 0.8 5 5.8 5 MNS0580LB 30.1 49.1 49.1 101.1 100 1.1 6 4.6 10 MNS0460X1 ODB 46.8 65.8 68.8 118.8 118 0.8 5 5.8 10 MNS0580X10DB 59.1 79.1 82.1 134.1 133 1.1 6 4.6 20 MNS0460X20DB 92.8 115.8 118.8 168.8 168 0.8 5 5.8 20 MNS0580X20DB 117.1 139.1 142.1 194.1 193 1.1 6 4.6 30 MNS0460X30DB 138.8 165.8 168.8 218.8 218 0.8 5 5.8 30 MNS0580X30DB 175.1 199.1 202.1 254.1 253 1.1 6 4.7 5 MNS0470LB 24.4 55.9 55.9 105.9 105 0.9 5 5.9 5 MNS0590LB 30.6 49.1 49.1 101.1 100 1.1 6 4.7 10 MNS0470X1 ODB 47.9 65.9 68.9 118.9 118 0.9 5 5.9 10 MNS0590X10DB 60.1 79.1 82.1 134.1 133 1.1 6 4.7 20 MNS0470X20DB 94.9 115.9 118.9 168.9 168 0.9 5 5.9 20 MNS0590X20DB 119.1 139.1 142.1 194.1 193 1.1 6 4.7 30 MNS0470X30DB 141.9 165.9 168.9 218.9 218 0.9 5 5.9 30 MNS0590X30DB 178.1 199.1 202.1 254.1 253 1.1 6 4.8 5 MNS0480LB 24.9 55.9 55.9 105.9 105 0.9 5 6.0 5 MNS0600LB 31.1 49.1 49.1 101.1 100 1.1 6 4.8 10 MNS0480X1 ODB 48.9 65.9 68.9 118.9 118 0.9 5 6.0 10 MNS0600X10DB 61.1 79.1 82.1 134.1 133 1.1 6 4.8 20 MNS0480X20DB 96.9 115.9 118.9 168.9 168 0.9 5 6.0 20 MNS0600X20DB 121.1 139.1 142.1 194.1 193 1.1 6 4.8 30 MNS0480X30DB 144.9 165.9 168.9 218.9 218 0.9 5 6.0 30 MNS0600X30DB 181.1 199.1 202.1 254.1 253 1.1 6 4.9 5 MNS0490LB 25.4 55.9 55.9 105.9 105 0.9 5 6.1 5 MNS0610LB 31.6 53.1 53.1 110.1 109 1.1 7 4.9 10 MNS0490X1 ODB 49.9 65.9 68.9 118.9 118 0.9 5 6.1 10 MNS0610X10DB 62.1 86.1 89.1 142.1 141 1.1 7 4.9 20 MNS0490X20DB 98.9 115.9 118.9 168.9 168 0.9 5 6.1 20 MNS0610X20DB 123.1 151.1 154.1 207.1 206 1.1 7 4.9 30 MNS0490X30DB 147.9 165.9 168.9 218.9 218 0.9 5 6.1 30 MNS0610X30DB 184.1 216.1 219.1 272.1 271 1.1 7 5.0 5 MNS0500LB 25.9 44.9 44.9 100.9 100 0.9 6 6.2 5 MNS0620LB 32.1 53.1 53.1 110.1 109 1.1 7 5.0 10 MNS0500X1 ODB 50.9 65.9 68.9 118.9 118 0.9 5 6.2 10 MNS0620X10DB 63.1 86.1 89.1 142.1 141 1.1 7 5.0 20 MNS0500X20DB 100.9 115.9 118.9 168.9 168 0.9 5 6.2 20 MNS0620X20DB 125.1 151.1 154.1 207.1 206 1.1 7 5.0 30 MNS0500X30DB 150.9 165.9 168.9 218.9 218 0.9 5 6.2 30 MNS0620X30DB 187.1 216.1 219.1 272.1 271 1.1 7 5.1 5 MNS0510LB 26.4 44.9 44.9 100.9 100 0.9 6 6.3 5 MNS0630LB 32.6 53.1 53.1 110.1 109 1.1 7 5.1 10 MNS0510X10DB 51.9 72.9 75.9 127.9 127 0.9 6 6.3 10 MNS0630X1 ODB 64.1 86.1 89.1 142.1 141 1.1 7 5.1 20 MNS0510X20DB 102.9 127.9 130.9 182.9 182 0.9 6 6.3 20 MNS0630X20DB 127.1 151.1 154.1 207.1 206 1.1 7 5.1 30 MNS0510X30DB 153.9 182.9 185.9 237.9 237 0.9 6 6.3 30 MNS0630X30DB 190.1 216.1 219.1 272.1 271 1.1 7 5.2 5 MNS0520LB 26.9 44.9 44.9 100.9 100 0.9 6 6.4 5 MNS0640LB 33.2 53.2 53.2 110.2 109 1.2 7 5.2 10 MNS0520X1 ODB 52.9 72.9 75.9 127.9 127 0.9 6 6.4 10 MNS0640X10DB 65.2 86.2 89.2 142.2 141 1.2 7 5.2 20 MNS0520X20DB 104.9 127.9 130.9 182.9 182 0.9 6 6.4 20 MNS0640X20DB 129.2 151.2 154.2 207.2 206 1.2 7 5.2 30 MNS0520X30DB 156.9 182.9 185.9 237.9 237 0.9 6 6.4 30 MNS0640X30DB 193.2 216.2 219.2 272.2 271 1.2 7 5.3 5 MNS0530LB 27.5 45.0 45.0 101.0 100 1.0 6 6.5 5 MNS0650LB 33.7 53.2 53.2 110.2 109 1.2 7 5.3 10 MNS0530X1 ODB 54.0 73.0 76.0 128.0 127 1.0 6 6.5 10 MNS0650X1 ODB 66.2 86.2 89.2 142.2 141 1.2 7 5.3 20 MNS0530X20DB 107.0 128.0 131.0 183.0 182 1.0 6 6.5 20 MNS0650X20DB 131.2 151.2 154.2 207.2 206 1.2 7 5.3 30 MNS0530X30DB 160.0 183.0 186.0 238.0 237 1.0 6 6.5 30 MNS0650X30DB 196.2 216.2 219.2 272.2 271 1.2 7 5.4 5 MNS0540LB 28.0 45.0 45.0 101.0 100 1.0 6 6.6 5 MNS0660LB 34.2 57.2 57.2 110.2 109 1.2 7 5.4 10 MNS0540X1 ODB 55.0 73.0 76.0 128.0 127 1.0 6 6.6 10 MNS0660X10DB 67.2 92.2 95.2 148.2 147 1.2 7 5.4 20 MNS0540X20DB 109.0 128.0 131.0 183.0 182 1.0 6 6.6 20 MNS0660X20DB 133.2 162.2 165.2 218.2 217 1.2 7 5.4 30 MNS0540X30DB 163.0 183.0 186.0 238.0 237 1.0 6 6.6 30 MNS0660X30DB 199.2 232.2 235.2 288.2 287 1.2 7 5.5 5 MNS0550LB 28.5 45.0 45.0 101.0 100 1.0 6 6.7 5 MNS0670LB 34.7 57.2 57.2 110.2 109 1.2 7 5.5 10 MNS0550X1 ODB 56.0 73.0 76.0 128.0 127 1.0 6 6.7 10 MNS0670X1 ODB 68.2 92.2 95.2 148.2 147 1.2 7 5.5 20 MNS0550X20DB 111.0 128.0 131.0 183.0 182 1.0 6 6.7 20 MNS0670X20DB 135.2 162.2 165.2 218.2 217 1.2 7 5.5 30 MNS0550X30DB 166.0 183.0 186.0 238.0 237 1.0 6 6.7 30 MNS0670X30DB 202.2 232.2 235.2 288.2 287 1.2 7 / CUTTING CONDITIONS >P081 OPERATION GUIDANCE > P082 TECHNICAL DATA > R001 P077 DRILLING
