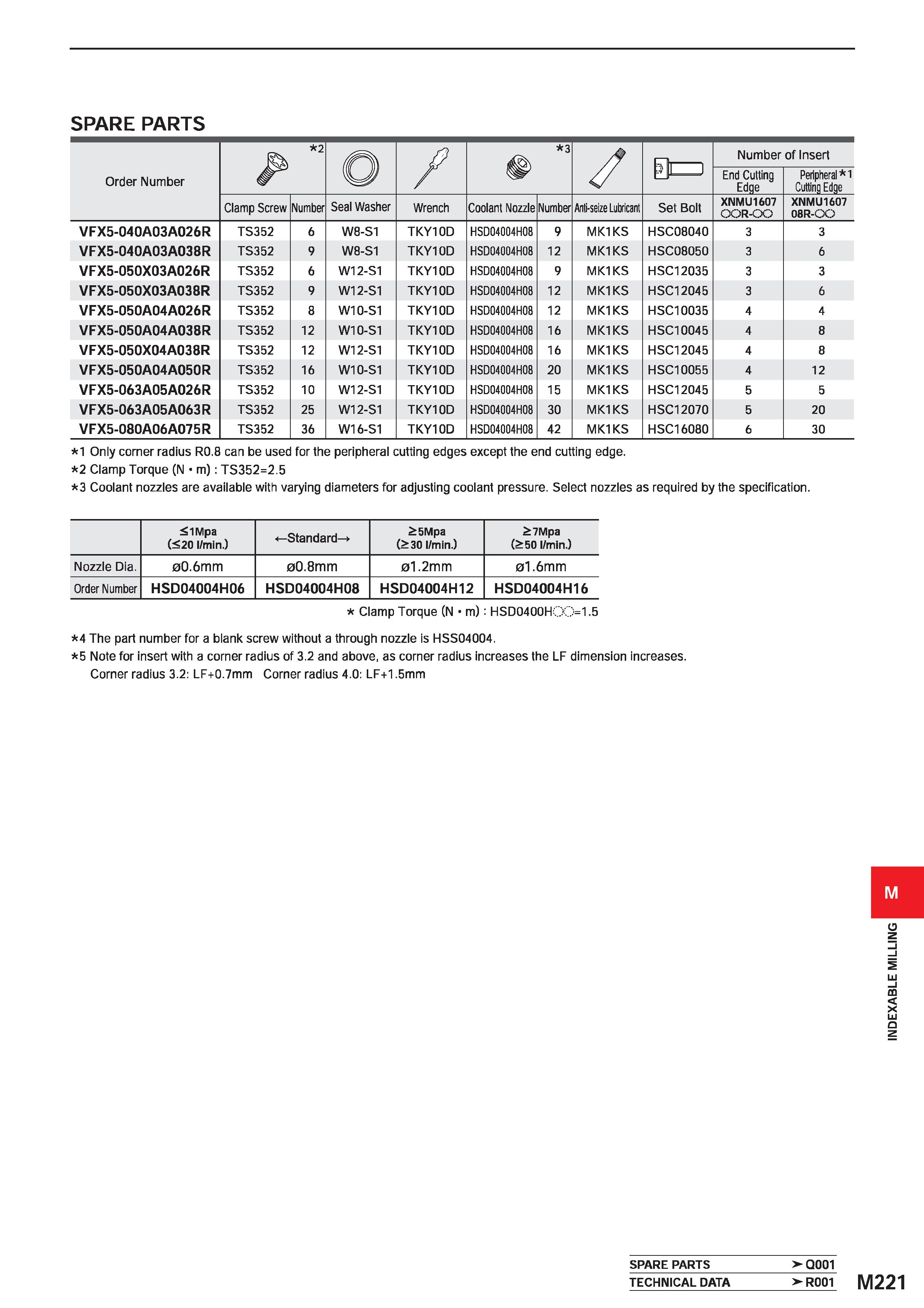

SPARE PARTS Order Number o / 3 / Flh-1 Number of Insert EJJ-J End Cutting Edqe Peripheral 1 Cuttinq Edqe Clamp Screw Number Seal Washer Wrench Coolant Nozzle Number Anti-seize Lubricant Set Bolt XNMU1607 OOR-OO XNMU1607 08R-OO VFX5-040A03A026R TS352 6 W8-S1 TKY10D HSD04004H08 9 MK1KS HSC08040 3 3 VFX5-040A03A038R TS352 9 W8-S1 TKY10D HSD04004H08 12 MK1 KS HSC08050 3 6 VFX5-050X03A026R TS352 6 W12-S1 TKY10D HSD04004H08 9 MK1 KS HSC12035 3 3 VFX5-050X03A038R TS352 9 W12-S1 TKY10D HSD04004H08 12 MK1 KS HSC12045 3 6 VFX5-050A04A026R TS352 8 W10-S1 TKY10D HSD04004H08 12 MK1 KS HSC10035 4 4 VFX5-050A04A038R TS352 12 W10-S1 TKY10D HSD04004H08 16 MK1 KS HSC10045 4 8 VFX5-050X04A038R TS352 12 W12-S1 TKY10D HSD04004H08 16 MK1 KS HSC12045 4 8 VFX5-050A04A050R TS352 16 W10-S1 TKY10D HSD04004H08 20 MK1 KS HSC10055 4 12 VFX5-063A05A026R TS352 10 W12-S1 TKY10D HSD04004H08 15 MK1 KS HSC12045 5 5 VFX5-063A05A063 R TS352 25 W12-S1 TKY10D HSD04004H08 30 MK1 KS HSC12070 5 20 VFX5-080A06 A075 R TS352 36 W16-S1 TKY10D HSD04004H08 42 MK1 KS HSC16080 6 30 1 Only corner radius R0.8 can be used for the peripheral cutting edges except the end cutting edge. 2 Clamp Torque (N m): TS352=2.5 3 Coolant nozzles are available with varying diameters for adjusting coolant pressure. Select nozzles as required by the specification. iMpa (<20 l/min.) (-Standard > £5Mpa (>30 l/min.) £7Mpa (>50 l/min.) Nozzle Dia. 00.6mm 00.8mm 01.2mm 01.6mm Order Number HSD04004H06 HSD04004H08 HSD04004H12 HSD04004H16 Clamp Torque (N m): HSD0400HCX>1.5 4 The part number for a blank screw without a through nozzle is HSS04004. 5 Note for insert with a corner radius of 3.2 and above, as corner radius increases the LF dimension increases. Corner radius 3.2: LF+0.7mm Corner radius 4.0: LF+1,5mm SPARE PARTS >-Q001 TECHNICAL DATA > R001 M M221 INDEXABLE MILLING
