1375 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.M219

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. M219 1375 Lab2u

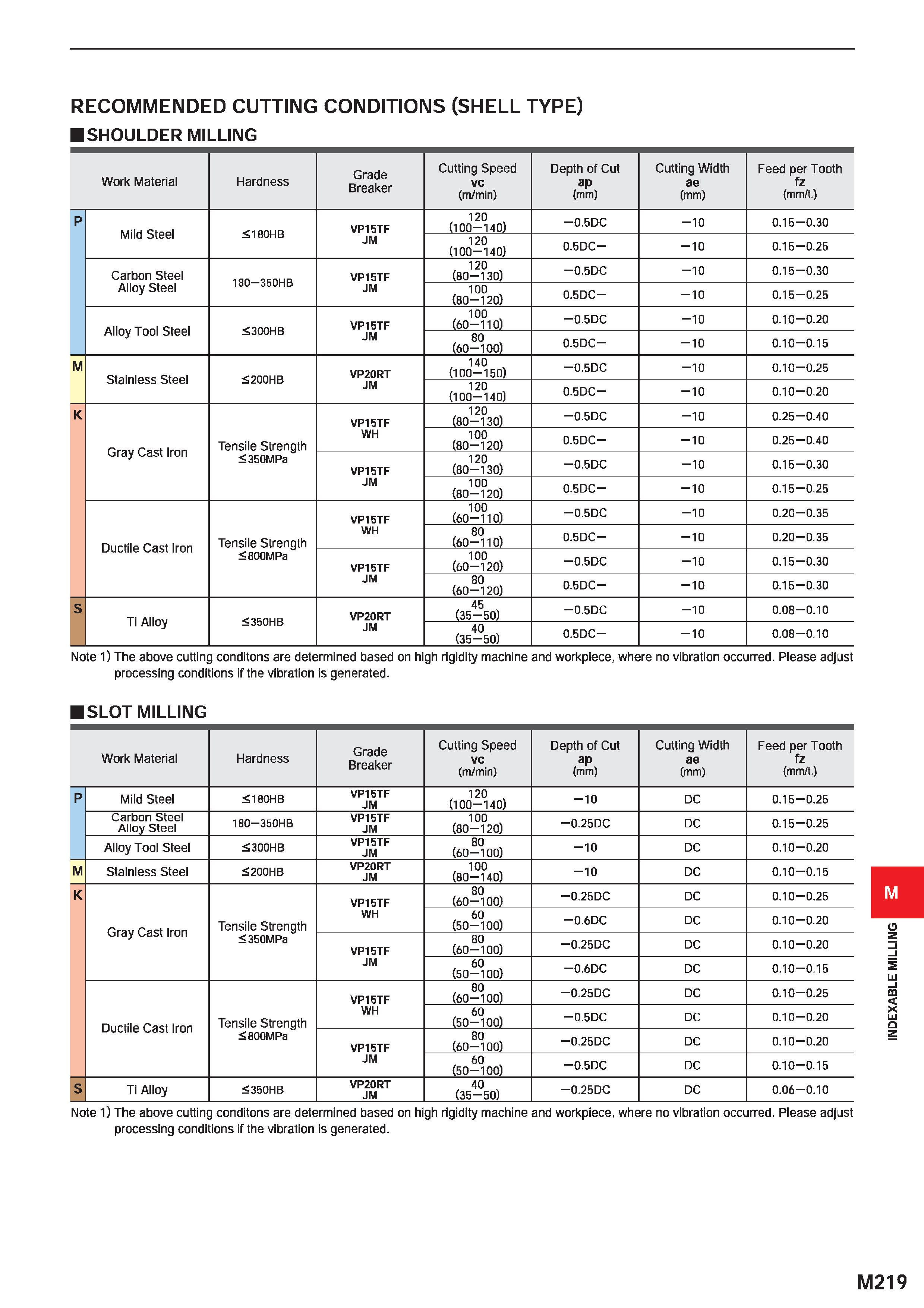

RECOMMENDED CUTTING CONDITIONS (SHELL TYPE) SHOULDER MILLING Work Material Hardness Grade Breaker Cutting Speed vc (m/min) Depth of Cut ap (mm) Cutting Width ae (mm) Feed per Tooth fz (mm/t.) P Mild Steel 180HB VP15TF 120 (100-140) 0.5DC -10 0.15-0.30 JM 120 (100-140) 0.5DC -10 0.15-0.25 Carbon Steel 180 350HB VP15TF 120 (80-130) 0.5DC -10 0.15-0.30 Alloy Steel JM 100 (80-120) 0.5DC -10 0.15-0.25 Alloy Tool Steel 300HB VP15TF 100 (60-110) 0.5DC -10 0.10-0.20 JM 80 (60-100) 0.5DC- -10 0.10-0.15 M Stainless Steel 200HB VP20RT 140 (100-150) 0.5DC -10 0.10-0.25 JM 120 (100-140) 0.5DC- -10 0.10-0.20 K VP15TF 120 (80-130) 0.5DC -10 0.25-0.40 Gray Cast Iron Tensile Strength WH 100 (80-120) 0.5DC -10 0.25-0.40 350MPa VP15TF 120 (80-130) 0.5DC -10 0.15-0.30 JM 100 (80-120) 0.5DC- -10 0.15-0.25 VP15TF 100 (60-110) 0.5DC -10 0.20-0.35 Ductile Cast Iron Tensile Strength WH 80 (60-110) 0.5DC -10 0.20-0.35 800MPa VP15TF 100 (60-120) 0.5DC -10 0.15-0.30 JM 80 (60-120) 0.5DC -10 0.15-0.30 S Ti Alloy 350HB VP20RT 45 (35-50) 0.5DC -10 0.08-0.10 JM 40 (35-50) 0.5DC -10 0.08-0.10 Note 1) The above cutting conditons are determined based on high rigidity machine and workpiece, where no vibration occurred. Please adjust processing conditions if the vibration is generated. SLOT MILLING Work Material Hardness Grade Breaker Cutting Speed vc (m/min) Depth Of Cut ap (mm) Cutting Width ae (mm) Feed per Tooth fz (mm/t.) P Mild Steel 180HB VP15TF JM 120 (100-140) -10 DC 0.15-0.25 Carbon Steel Alloy Steel 180 350HB VP15TF JM 100 (80-120) 0.25DC DC 0.15-0.25 Alloy Tool Steel 300HB VP15TF JM 80 (60-100) -10 DC 0.10-0.20 M Stainless Steel 200HB VP20RT JM 100 (80-140) -10 DC 0.10-0.15 K VP15TF 80 (60-100) 0.25DC DC 0.10-0.25 Gray Cast Iron Tensile Strength WH 60 (50-100) 0.6DC DC 0.10-0.20 350MPa VP15TF 80 (60-100) 0.25DC DC 0.10-0.20 JM 60 (50-100) 0.6DC DC 0.10-0.15 VP15TF 80 (60-100) 0.25DC DC 0.10-0.25 Ductile Cast Iron Tensile Strength WH 60 (50-100) 0.5DC DC 0.10-0.20 i800MPa VP15TF 80 (60-100) 0.25DC DC 0.10-0.20 JM 60 (50-100) 0.5DC DC 0.10-0.15 S Ti Alloy 350HB VP20RT JM 40 (35-50) 0.25DC DC 0.06-0.10 Note 1) The above cutting conditons are determined based on high rigidity machine and workpiece, where no vibration occurred. Please adjust processing conditions if the vibration is generated. M219 INDEXABLE MILLING
