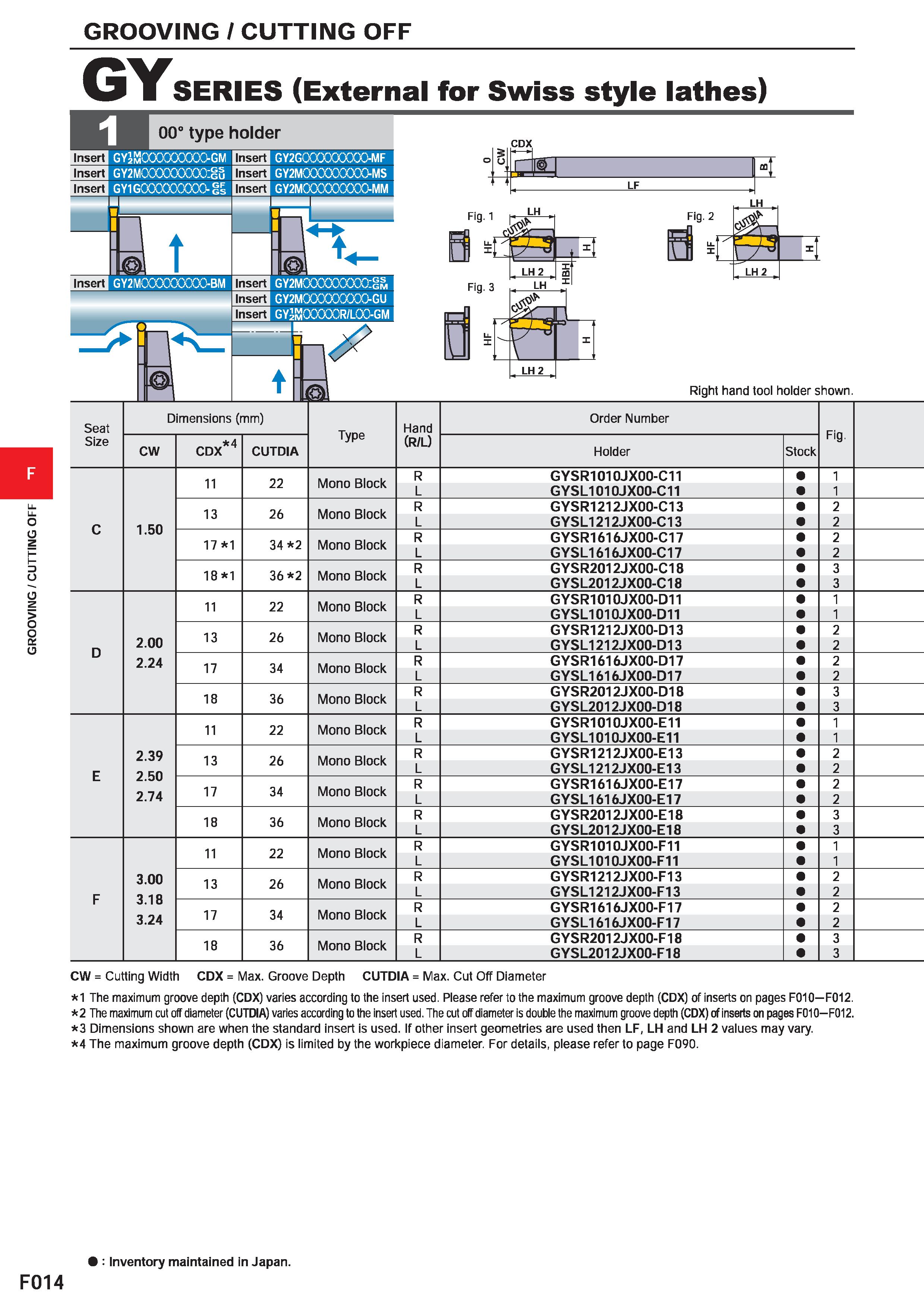

GROOVING / CUTTING OFF GY SERIES (External for Swiss style lathes) 00° type holder Insert Insert Insert GYJmOOOOOOOOO-GM GY2MCXXXXXXXX):gu GY1G000000000- 8s Insert I Insert Insert GY2GOOCOOOOOO-MF GY2M0000CXXX30-MS GY2M000000000-MM CDX I.cw I BL CD LF LH Fi9'1 Insert GY2M(X)QQ0QQQQ-BM Insert Insert LH 2 GY2M000000000-GU GYJM00000R/L00-GM - U LL X n X LH 2 Right hand tool holder shown. Seat Size D imensions (mm) Type Hand (R/L) Order Number Fig. CW CDX 4 CUTDIA Holder Stock 11 22 Mono Block R GYSR1010JX00-C11 1 L GYSL1010JX00-C11 1 13 26 Mono Block R GYSR1212JX00-C13 2 C 1.50 L GYSL1212JX00-C13 2 17 1 34 2 Mono Block R GYSR1616JX00-C17 2 L GYSL1616JX00-C17 2 18 1 36 2 Mono Block R GYSR2012JX00-C18 3 L GYSL2012JX00-C18 3 11 22 Mono Block R GYSR1010JX00-D11 1 L GYSL1010JX00-D11 1 13 26 Mono Block R GYSR1212JX00-D13 2 D 2.00 2.24 L GYSL1212JX00-D13 2 17 34 Mono Block R GYSR1616JX00-D17 2 L GYSL1616JX00-D17 2 18 36 Mono Block R GYSR2012JX00-D18 3 L GYSL2012JX00-D18 3 11 22 Mono Block R GYSR1010JX00-E11 1 2.39 L GYSL1010JX00-E11 1 13 26 Mono Block R GYSR1212JX00-E13 2 E 2.50 L GYSL1212JX00-E13 2 17 34 Mono Block R GYSR1616JX00-E17 2 2.74 L GYSL1616JX00-E17 2 18 36 Mono Block R GYSR2012JX00-E18 3 L GYSL2012JX00-E18 3 11 22 Mono Block R GYSR1010JX00-F11 1 3.00 L GYSL1010JX00-F11 1 13 26 Mono Block R GYSR1212JX00-F13 2 F 3.18 L GYSL1212JX00-F13 2 17 34 Mono Block R GYSR1616JX00-F17 2 3.24 L GYSL1616JX00-F17 2 18 36 Mono Block R GYSR2012JX00-F18 3 L GYSL2012JX00-F18 3 CW = Cutting Width CDX = Max. Groove Depth CUTDIA = Max. Cut Off Diameter 1 The maximum groove depth (CDX) varies according to the insert used. Please refer to the maximum groove depth (CDX) of inserts on pages F010 F012. 2 The maximum cut off diameter (CUTDIA) varies according to the insert used. The cut off diameter is double the maximum groove depth (CDX) of inserts on pages F010-F012. 3 Dimensions shown are when the standard insert is used. If other insert geometries are used then LF, LH and LH 2 values may vary. 4 The maximum groove depth (CDX) is limited by the workpiece diameter. For details, please refer to page F090. : Inventory maintained in Japan.
