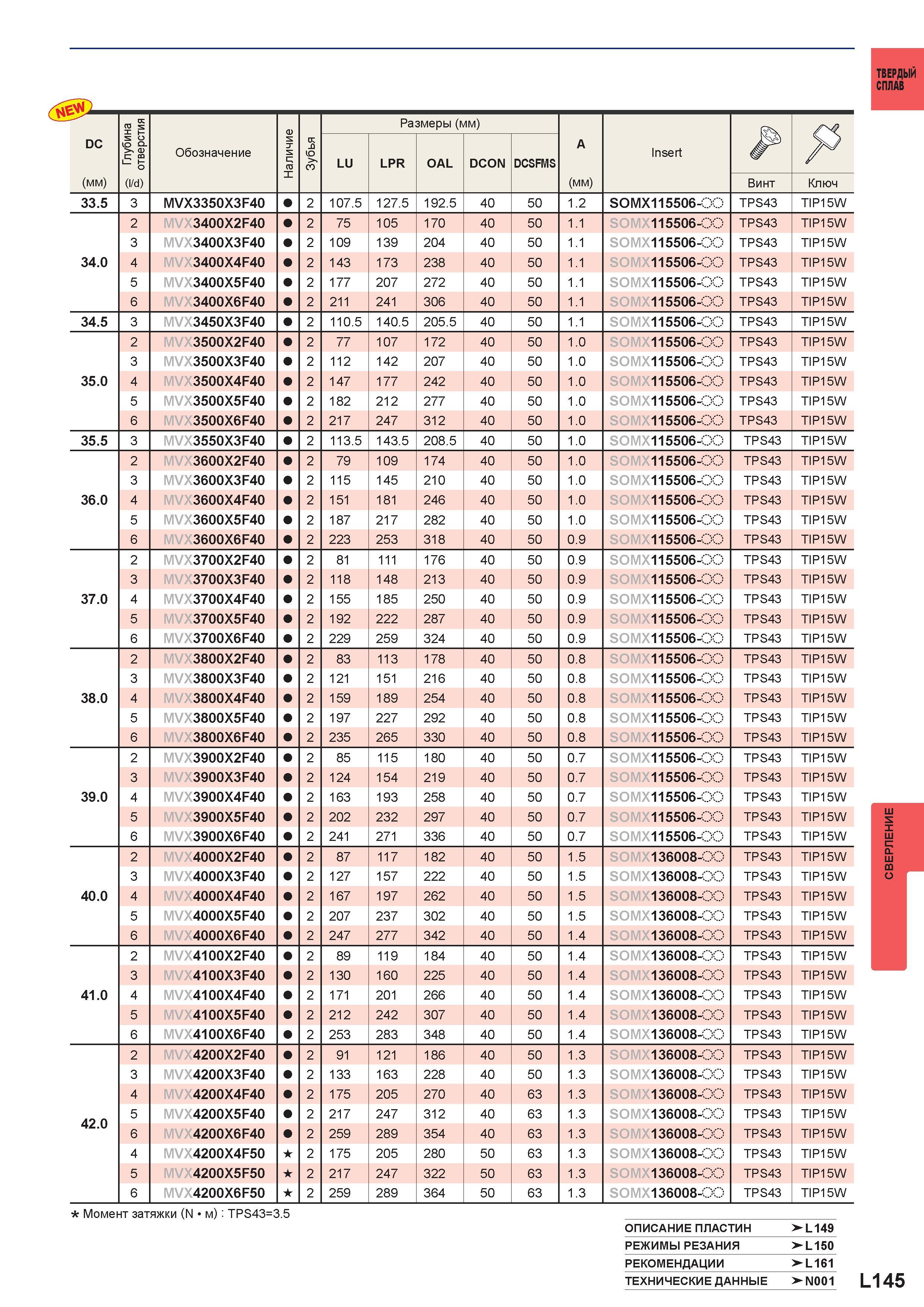

1271 Каталог MITSUBISHI 2016 Вращающийся и токарный режущий инструмент Стр.L145

Каталог MITSUBISHI 2016 Станочный режущий инструмент Стр. L145 1271 Lab2u

Твердый сплав DC (мм) S о CL >. с; m iZ 1-о (l/d) Обозначение Наличие я ь у З Размеры (мм) А (мм) Insert я LU LPR OAL DCON DCSFMS Винт Ключ 33.5 3 MVX3350X3F40 2 107.5 127.5 192.5 40 50 1.2 SOMX115506-00 TPS43 TIP15W 2 MVX3400X2F40 2 75 105 170 40 50 1.1 SOMX115506-00 TPS43 TIP15W 3 MVX3400X3F40 2 109 139 204 40 50 1.1 SOMX115506-00 TPS43 TIP15W 34.0 4 MVX3400X4F40 2 143 173 238 40 50 1.1 SOMX115506-00 TPS43 TIP15W 5 MVX3400X5F40 2 177 207 272 40 50 1.1 SOMX115506-00 TPS43 TIP15W 6 MVX3400X6F40 2 211 241 306 40 50 1.1 SOMX115506-00 TPS43 TIP15W 34.5 3 MVX3450X3F40 2 110.5 140.5 205.5 40 50 1.1 SOMX115506-00 TPS43 TIP15W 2 MVX3500X2F40 2 77 107 172 40 50 1.0 SOMX115506-00 TPS43 TIP15W 3 MVX3500X3F40 2 112 142 207 40 50 1.0 SOMX115506-00 TPS43 TIP15W 35.0 4 MVX3500X4F40 2 147 177 242 40 50 1.0 SOMX115506-00 TPS43 TIP15W 5 MVX3500X5F40 2 182 212 277 40 50 1.0 SOMX115506-00 TPS43 TIP15W 6 MVX3500X6F40 2 217 247 312 40 50 1.0 SOMX115506-00 TPS43 TIP15W 35.5 3 MVX3550X3F40 2 113.5 143.5 208.5 40 50 1.0 SOMX115506-00 TPS43 TIP15W 2 MVX3600X2F40 2 79 109 174 40 50 1.0 SOMX115506-00 TPS43 TIP15W 3 MVX3600X3F40 2 115 145 210 40 50 1.0 SOMX115506-00 TPS43 TIP15W 36.0 4 MVX3600X4F40 2 151 181 246 40 50 1.0 SOMX115506-00 TPS43 TIP15W 5 MVX3600X5F40 2 187 217 282 40 50 1.0 SOMX115506-00 TPS43 TIP15W 6 MVX3600X6F40 2 223 253 318 40 50 0.9 SOMX115506-00 TPS43 TIP15W 2 MVX3700X2F40 2 81 111 176 40 50 0.9 SOMX115506-00 TPS43 TIP15W 3 MVX3700X3F40 2 118 148 213 40 50 0.9 SOMX115506-00 TPS43 TIP15W 37.0 4 MVX3700X4F40 2 155 185 250 40 50 0.9 SOMX115506-00 TPS43 TIP15W 5 MVX3700X5F40 2 192 222 287 40 50 0.9 SOMX115506-00 TPS43 TIP15W 6 MVX3700X6F40 2 229 259 324 40 50 0.9 SOMX115506-00 TPS43 TIP15W 2 MVX3800X2F40 2 83 113 178 40 50 0.8 SOMX115506-00 TPS43 TIP15W 3 MVX3800X3F40 2 121 151 216 40 50 0.8 SOMX115506-00 TPS43 TIP15W 38.0 4 MVX3800X4F40 2 159 189 254 40 50 0.8 SOMX115506-00 TPS43 TIP15W 5 MVX3800X5F40 2 197 227 292 40 50 0.8 SOMX115506-00 TPS43 TIP15W 6 MVX3800X6F40 2 235 265 330 40 50 0.8 SOMX115506-00 TPS43 TIP15W 2 MVX3900X2F40 2 85 115 180 40 50 0.7 SOMX115506-00 TPS43 TIP15W 3 MVX3900X3F40 2 124 154 219 40 50 0.7 SOMX115506-00 TPS43 TIP15W 39.0 4 MVX3900X4F40 2 163 193 258 40 50 0.7 SOMX115506-00 TPS43 TIP15W 5 MVX3900X5F40 2 202 232 297 40 50 0.7 SOMX115506-00 TPS43 TIP15W 6 MVX3900X6F40 2 241 271 336 40 50 0.7 SOMX115506-00 TPS43 TIP15W 2 MVX4000X2F40 2 87 117 182 40 50 1.5 S0MX136008-00 TPS43 TIP15W 3 MVX4000X3F40 2 127 157 222 40 50 1.5 S0MX136008-00 TPS43 TIP15W 40.0 4 MVX4000X4F40 2 167 197 262 40 50 1.5 S0MX136008-00 TPS43 TIP15W 5 MVX4000X5F40 2 207 237 302 40 50 1.5 S0MX136008-00 TPS43 TIP15W 6 MVX4000X6F40 2 247 277 342 40 50 1.4 S0MX136008-00 TPS43 TIP15W 2 MVX4100X2F40 2 89 119 184 40 50 1.4 S0MX136008-00 TPS43 TIP15W 3 MVX4100X3F40 2 130 160 225 40 50 1.4 S0MX136008-00 TPS43 TIP15W 41.0 4 MVX4100X4F40 2 171 201 266 40 50 1.4 S0MX136008-00 TPS43 TIP15W 5 MVX4100X5F40 2 212 242 307 40 50 1.4 S0MX136008-00 TPS43 TIP15W 6 MVX4100X6F40 2 253 283 348 40 50 1.4 S0MX136008-00 TPS43 TIP15W 2 MVX4200X2F40 2 91 121 186 40 50 1.3 S0MX136008-00 TPS43 TIP15W 3 MVX4200X3F40 2 133 163 228 40 50 1.3 S0MX136008-00 TPS43 TIP15W 4 MVX4200X4F40 2 175 205 270 40 63 1.3 S0MX136008-00 TPS43 TIP15W 42.0 5 MVX4200X5F40 2 217 247 312 40 63 1.3 S0MX136008-00 TPS43 TIP15W 6 MVX4200X6F40 2 259 289 354 40 63 1.3 S0MX136008-00 TPS43 TIP15W 4 MVX4200X4F50 2 175 205 280 50 63 1.3 S0MX136008-00 TPS43 TIP15W 5 MVX4200X5F50 2 217 247 322 50 63 1.3 S0MX136008-00 TPS43 TIP15W 6 MVX4200X6F50 2 259 289 364 50 63 1.3 S0MX136008-00 TPS43 TIP15W Момент затяжки (N м): TPS43=3.5 ОПИСАНИЕ ПЛАСТИН >L149 Режимы резания >-L150 РЕКОМЕНДАЦИИ >-L161 Краткое руководство по металлообработке на станках >-N001 L145 Сверление
