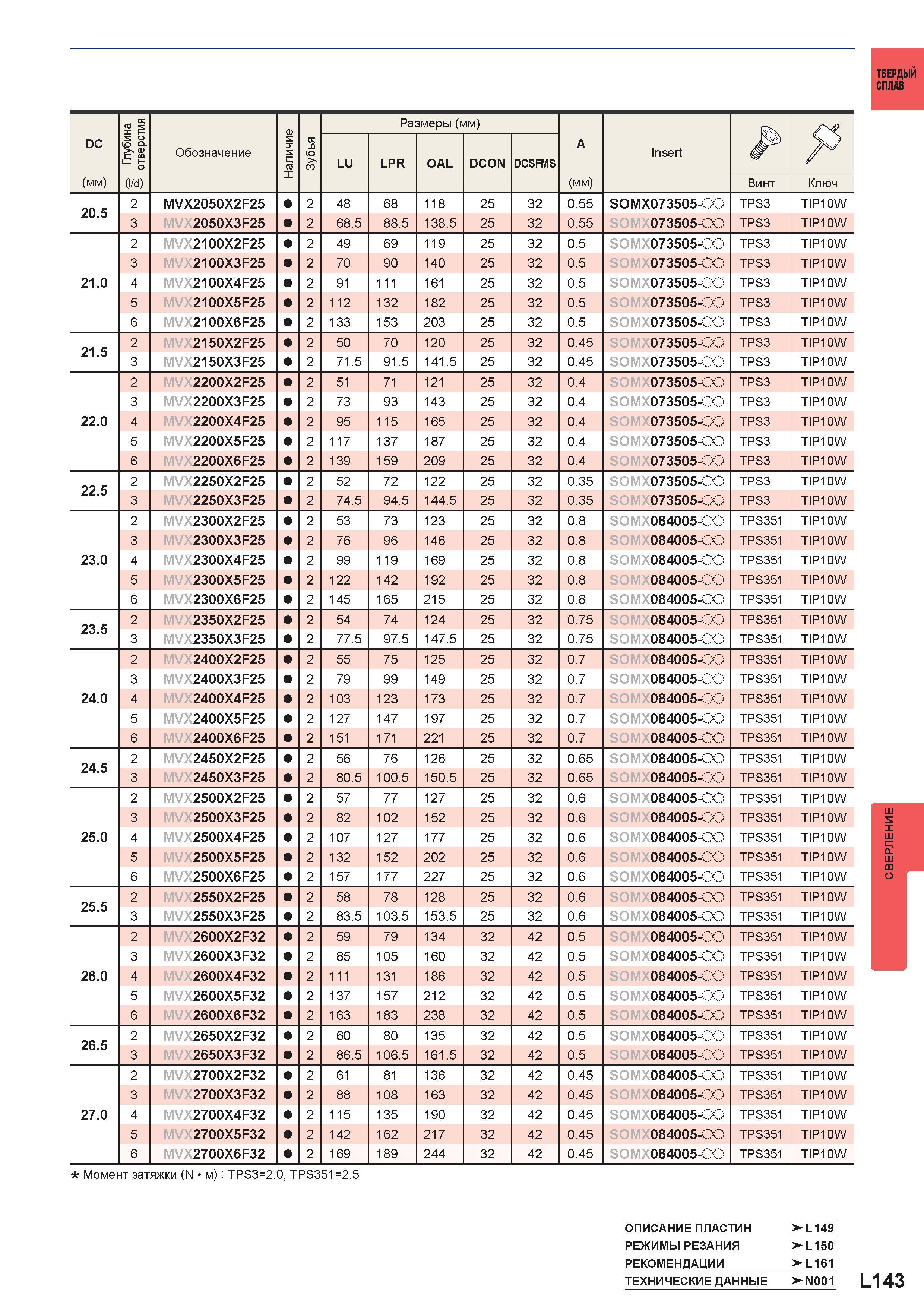

1269 Каталог MITSUBISHI 2016 Вращающийся и токарный режущий инструмент Стр.L143

Каталог MITSUBISHI 2016 Станочный режущий инструмент Стр. L143 1269 Lab2u

Твердый сплав DC (мм) S о CL >. с; m iZ 1-о (l/d) Обозначение Наличие я ь у З Размеры (мм) А (мм) Insert я LU LPR OAL DCON DCSFMS Винт Ключ 20.5 2 MVX2050X2F25 2 48 68 118 25 32 0.55 S0MX073505-00 TPS3 TIP10W 3 MVX2050X3F25 2 68.5 88.5 138.5 25 32 0.55 S0MX073505-00 TPS3 TIP10W 2 MVX2100X2F25 2 49 69 119 25 32 0.5 S0MX073505-00 TPS3 TIP10W 3 MVX2100X3F25 2 70 90 140 25 32 0.5 S0MX073505-00 TPS3 TIP10W 21.0 4 MVX2100X4F25 2 91 111 161 25 32 0.5 S0MX073505-00 TPS3 TIP10W 5 MVX2100X5F25 2 112 132 182 25 32 0.5 S0MX073505-00 TPS3 TIP10W 6 MVX2100X6F25 2 133 153 203 25 32 0.5 S0MX073505-00 TPS3 TIP10W 21.5 2 MVX2150X2F25 2 50 70 120 25 32 0.45 S0MX073505-00 TPS3 TIP10W 3 MVX2150X3F25 2 71.5 91.5 141.5 25 32 0.45 S0MX073505-00 TPS3 TIP10W 2 MVX2200X2F25 2 51 71 121 25 32 0.4 S0MX073505-00 TPS3 TIP10W 3 MVX2200X3F25 2 73 93 143 25 32 0.4 S0MX073505-00 TPS3 TIP10W 22.0 4 MVX2200X4F25 2 95 115 165 25 32 0.4 S0MX073505-00 TPS3 TIP10W 5 MVX2200X5F25 2 117 137 187 25 32 0.4 S0MX073505-00 TPS3 TIP10W 6 MVX2200X6F25 2 139 159 209 25 32 0.4 S0MX073505-00 TPS3 TIP10W 22.5 2 MVX2250X2F25 2 52 72 122 25 32 0.35 S0MX073505-00 TPS3 TIP10W 3 MVX2250X3F25 2 74.5 94.5 144.5 25 32 0.35 S0MX073505-00 TPS3 TIP10W 2 MVX2300X2F25 2 53 73 123 25 32 0.8 S0MX084005-00 TPS351 TIP10W 3 MVX2300X3F25 2 76 96 146 25 32 0.8 S0MX084005-00 TPS351 TIP10W 23.0 4 MVX2300X4F25 2 99 119 169 25 32 0.8 S0MX084005-00 TPS351 TIP10W 5 MVX2300X5F25 2 122 142 192 25 32 0.8 S0MX084005-00 TPS351 TIP10W 6 MVX2300X6F25 2 145 165 215 25 32 0.8 S0MX084005-00 TPS351 TIP10W 23.5 2 MVX2350X2F25 2 54 74 124 25 32 0.75 S0MX084005-00 TPS351 TIP10W 3 MVX2350X3F25 2 77.5 97.5 147.5 25 32 0.75 S0MX084005-00 TPS351 TIP10W 2 MVX2400X2F25 2 55 75 125 25 32 0.7 S0MX084005-00 TPS351 TIP10W 3 MVX2400X3F25 2 79 99 149 25 32 0.7 S0MX084005-00 TPS351 TIP10W 24.0 4 MVX2400X4F25 2 103 123 173 25 32 0.7 S0MX084005-00 TPS351 TIP10W 5 MVX2400X5F25 2 127 147 197 25 32 0.7 S0MX084005-00 TPS351 TIP10W 6 MVX2400X6F25 2 151 171 221 25 32 0.7 S0MX084005-00 TPS351 TIP10W 24.5 2 MVX2450X2F25 2 56 76 126 25 32 0.65 S0MX084005-00 TPS351 TIP10W 3 MVX2450X3F25 2 80.5 100.5 150.5 25 32 0.65 S0MX084005-00 TPS351 TIP10W 2 MVX2500X2F25 2 57 77 127 25 32 0.6 S0MX084005-00 TPS351 TIP10W 3 MVX2500X3F25 2 82 102 152 25 32 0.6 S0MX084005-00 TPS351 TIP10W 25.0 4 MVX2500X4F25 2 107 127 177 25 32 0.6 S0MX084005-00 TPS351 TIP10W 5 MVX2500X5F25 2 132 152 202 25 32 0.6 S0MX084005-00 TPS351 TIP10W 6 MVX2500X6F25 2 157 177 227 25 32 0.6 S0MX084005-00 TPS351 TIP10W 25.5 2 MVX2550X2F25 2 58 78 128 25 32 0.6 S0MX084005-00 TPS351 TIP10W 3 MVX2550X3F25 2 83.5 103.5 153.5 25 32 0.6 S0MX084005-00 TPS351 TIP10W 2 MVX2600X2F32 2 59 79 134 32 42 0.5 S0MX084005-00 TPS351 TIP10W 3 MVX2600X3F32 2 85 105 160 32 42 0.5 S0MX084005-00 TPS351 TIP10W 26.0 4 MVX2600X4F32 2 111 131 186 32 42 0.5 S0MX084005-00 TPS351 TIP10W 5 MVX2600X5F32 2 137 157 212 32 42 0.5 S0MX084005-00 TPS351 TIP10W 6 MVX2600X6F32 2 163 183 238 32 42 0.5 S0MX084005-00 TPS351 TIP10W 26.5 2 MVX2650X2F32 2 60 80 135 32 42 0.5 S0MX084005-00 TPS351 TIP10W 3 MVX2650X3F32 2 86.5 106.5 161.5 32 42 0.5 S0MX084005-00 TPS351 TIP10W 2 MVX2700X2F32 2 61 81 136 32 42 0.45 S0MX084005-00 TPS351 TIP10W 3 MVX2700X3F32 2 88 108 163 32 42 0.45 S0MX084005-00 TPS351 TIP10W 27.0 4 MVX2700X4F32 2 115 135 190 32 42 0.45 S0MX084005-00 TPS351 TIP10W 5 MVX2700X5F32 2 142 162 217 32 42 0.45 S0MX084005-00 TPS351 TIP10W 6 MVX2700X6F32 2 169 189 244 32 42 0.45 S0MX084005-00 TPS351 TIP10W Момент затяжки (N м): TPS3=2.0, TPS351=2.5 ОПИСАНИЕ ПЛАСТИН >L149 Режимы резания >-L150 РЕКОМЕНДАЦИИ >-L161 Краткое руководство по металлообработке на станках >-N001 L143 Сверление
