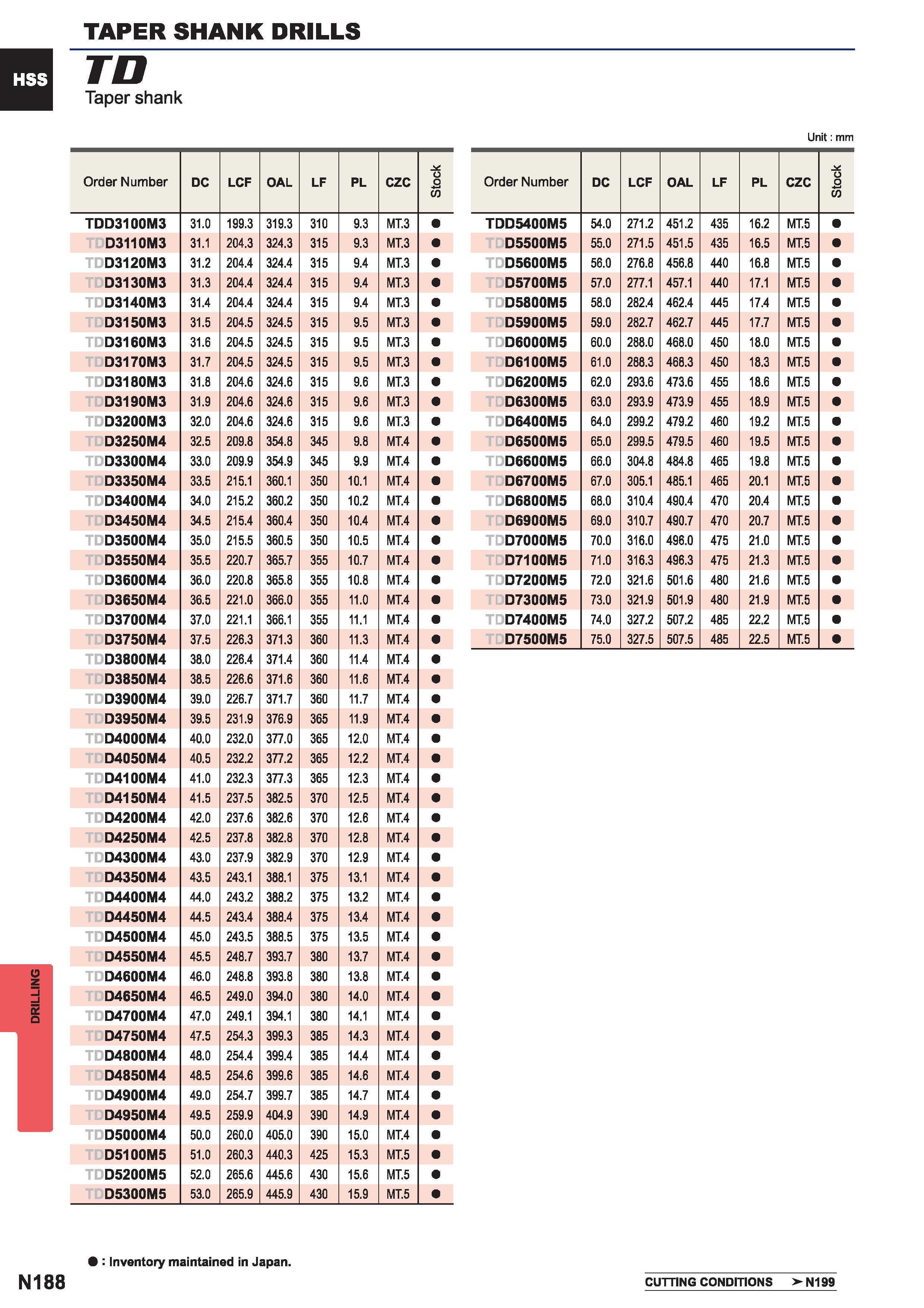

TAPER SHANK DRILLS TO Taper shank Order Number DC LCF OAL LF PL CZC Stock TDD3100M3 31.0 199.3 319.3 310 9.3 MT.3 rDD3110M3 31.1 204.3 324.3 315 9.3 MT.3 D3120M3 31.2 204.4 324.4 315 9.4 MT.3 D3130M3 31.3 204.4 324.4 315 9.4 MT.3 D3140M3 31.4 204.4 324.4 315 9.4 MT.3 D3150M3 31.5 204.5 324.5 315 9.5 MT.3 D3160M3 31.6 204.5 324.5 315 9.5 MT.3 D3170M3 31.7 204.5 324.5 315 9.5 MT.3 D3180M3 31.8 204.6 324.6 315 9.6 MT.3 D3190M3 31.9 204.6 324.6 315 9.6 MT.3 D3200M3 32.0 204.6 324.6 315 9.6 MT.3 D3250M4 32.5 209.8 354.8 345 9.8 MT.4 D3300M4 33.0 209.9 354.9 345 9.9 MT.4 D3350M4 33.5 215.1 360.1 350 10.1 MT.4 D3400M4 34.0 215.2 360.2 350 10.2 MT.4 D3450M4 34.5 215.4 360.4 350 10.4 MT.4 D3500M4 35.0 215.5 360.5 350 10.5 MT.4 D3550M4 35.5 220.7 365.7 355 10.7 MT.4 D3600M4 36.0 220.8 365.8 355 10.8 MT.4 D3650M4 36.5 221.0 366.0 355 11.0 MT.4 D3700M4 37.0 221.1 366.1 355 11.1 MT.4 D3750M4 37.5 226.3 371.3 360 11.3 MT.4 D3800M4 38.0 226.4 371.4 360 11.4 MT.4 D3850M4 38.5 226.6 371.6 360 11.6 MT.4 D3900M4 39.0 226.7 371.7 360 11.7 MT.4 D3950M4 39.5 231.9 376.9 365 11.9 MT.4 D4000M4 40.0 232.0 377.0 365 12.0 MT.4 D4050M4 40.5 232.2 377.2 365 12.2 MT.4 D4100M4 41.0 232.3 377.3 365 12.3 MT.4 D4150M4 41.5 237.5 382.5 370 12.5 MT.4 D4200M4 42.0 237.6 382.6 370 12.6 MT.4 D4250M4 42.5 237.8 382.8 370 12.8 MT.4 D4300M4 43.0 237.9 382.9 370 12.9 MT.4 D4350M4 43.5 243.1 388.1 375 13.1 MT.4 D4400M4 44.0 243.2 388.2 375 13.2 MT.4 D4450M4 44.5 243.4 388.4 375 13.4 MT.4 D4500M4 45.0 243.5 388.5 375 13.5 MT.4 D4550M4 45.5 248.7 393.7 380 13.7 MT.4 D4600M4 46.0 248.8 393.8 380 13.8 MT.4 D4650M4 46.5 249.0 394.0 380 14.0 MT.4 D4700M4 47.0 249.1 394.1 380 14.1 MT.4 D4750M4 47.5 254.3 399.3 385 14.3 MT.4 D4800M4 48.0 254.4 399.4 385 14.4 MT.4 D4850M4 48.5 254.6 399.6 385 14.6 MT.4 D4900M4 49.0 254.7 399.7 385 14.7 MT.4 D4950M4 49.5 259.9 404.9 390 14.9 MT.4 D5000M4 50.0 260.0 405.0 390 15.0 MT.4 D5100M5 51.0 260.3 440.3 425 15.3 MT.5 D5200M5 52.0 265.6 445.6 430 15.6 MT.5 D5300M5 53.0 265.9 445.9 430 15.9 MT.5 Unit mm Order Number DC LCF OAL LF PL CZC Stock TDD5400M5 54.0 271.2 451.2 435 16.2 MT.5 D5500M5 55.0 271.5 451.5 435 16.5 MT.5 D5600M5 56.0 276.8 456.8 440 16.8 MT.5 D5700M5 57.0 277.1 457.1 440 17.1 MT.5 D5800M5 58.0 282.4 462.4 445 17.4 MT.5 D5900M5 59.0 282.7 462.7 445 17.7 MT.5 D6000M5 60.0 288.0 468.0 450 18.0 MT.5 D6100M5 61.0 288.3 468.3 450 18.3 MT.5 D6200M5 62.0 293.6 473.6 455 18.6 MT.5 D6300M5 63.0 293.9 473.9 455 18.9 MT.5 D6400M5 64.0 299.2 479.2 460 19.2 MT.5 D6500M5 65.0 299.5 479.5 460 19.5 MT.5 D6600M5 66.0 304.8 484.8 465 19.8 MT.5 D6700M5 67.0 305.1 485.1 465 20.1 MT.5 D6800M5 68.0 310.4 490.4 470 20.4 MT.5 D6900M5 69.0 310.7 490.7 470 20.7 MT.5 D7000M5 70.0 316.0 496.0 475 21.0 MT.5 D7100M5 71.0 316.3 496.3 475 21.3 MT.5 D7200M5 72.0 321.6 501.6 480 21.6 MT.5 D7300M5 73.0 321.9 501.9 480 21.9 MT.5 D7400M5 74.0 327.2 507.2 485 22.2 MT.5 D7500M5 75.0 327.5 507.5 485 22.5 MT.5 Inventory maintained in Japan. CUTTING CONDITIONS N199
