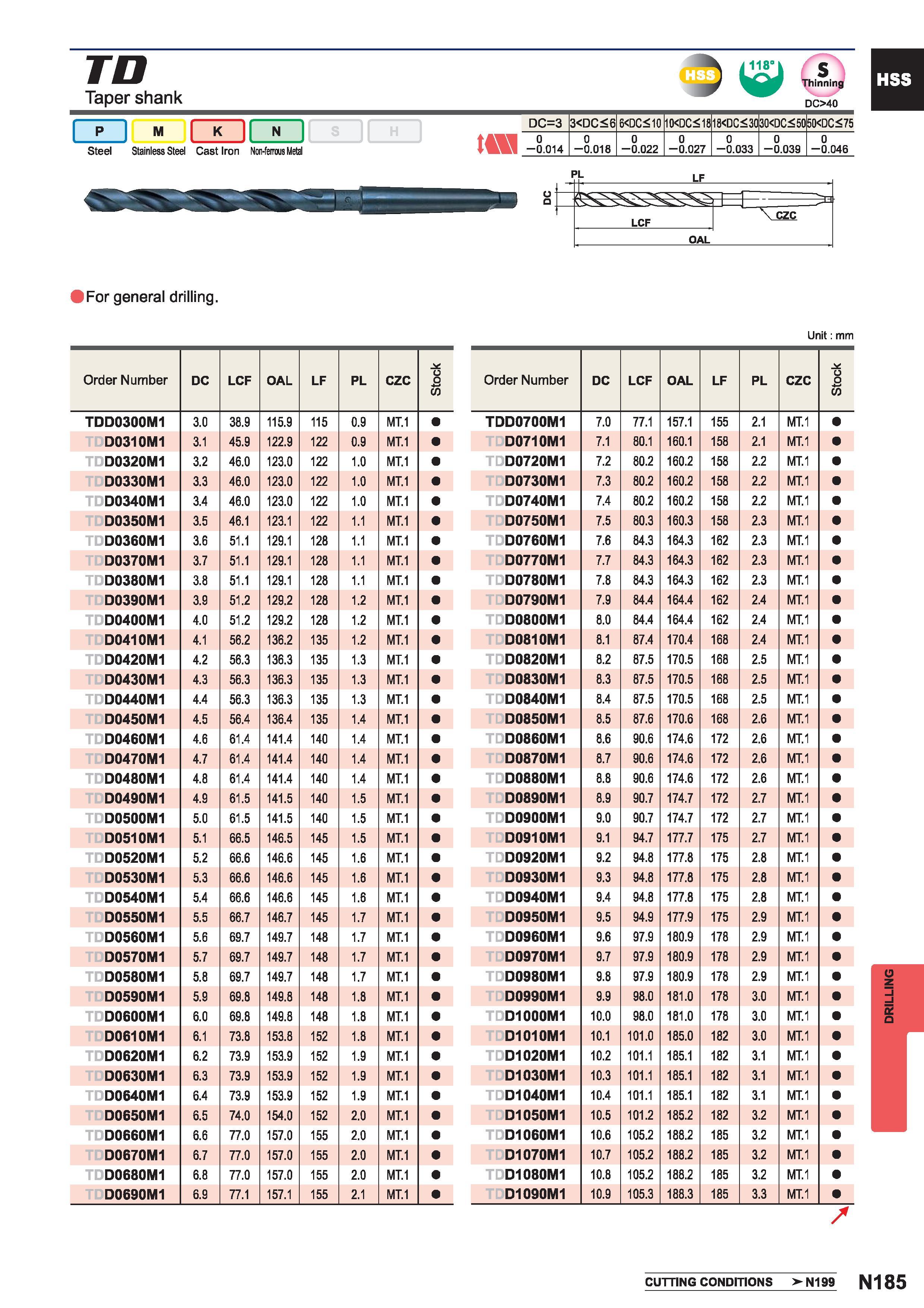

1501 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N185

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N185 1501 ENG Lab2u

For general drilling Unit mm Order Number DC LCF OAL LF PL czc Stock TDD0300M1 3.0 38.9 115.9 115 0.9 MT.1 D0310M1 3.1 45.9 122.9 122 0.9 MT.1 D0320M1 3.2 46.0 123.0 122 1.0 MT.1 D0330M1 3.3 46.0 123.0 122 1.0 MT.1 D0340M1 3.4 46.0 123.0 122 1.0 MT.1 D0350M1 3.5 46.1 123.1 122 1.1 MT.1 D0360M1 3.6 51.1 129.1 128 1.1 MT.1 D0370M1 3.7 51.1 129.1 128 1.1 MT.1 D0380M1 3.8 51.1 129.1 128 1.1 MT.1 D0390M1 3.9 51.2 129.2 128 1.2 MT.1 D0400M1 4.0 51.2 129.2 128 1.2 MT.1 D0410M1 4.1 56.2 136.2 135 1.2 MT.1 D0420M1 4.2 56.3 136.3 135 1.3 MT.1 D0430M1 4.3 56.3 136.3 135 1.3 MT.1 D0440M1 4.4 56.3 136.3 135 1.3 MT.1 D0450M1 4.5 56.4 136.4 135 1.4 MT.1 D0460M1 4.6 61.4 141.4 140 1.4 MT.1 D0470M1 4.7 61.4 141.4 140 1.4 MT.1 D0480M1 4.8 61.4 141.4 140 1.4 MT.1 D0490M1 4.9 61.5 141.5 140 1.5 MT.1 D0500M1 5.0 61.5 141.5 140 1.5 MT.1 D0510M1 5.1 66.5 146.5 145 1.5 MT.1 D0520M1 5.2 66.6 146.6 145 1.6 MT.1 D0530M1 5.3 66.6 146.6 145 1.6 MT.1 D0540M1 5.4 66.6 146.6 145 1.6 MT.1 D0550M1 5.5 66.7 146.7 145 1.7 MT.1 D0560M1 5.6 69.7 149.7 148 1.7 MT.1 D0570M1 5.7 69.7 149.7 148 1.7 MT.1 D0580M1 5.8 69.7 149.7 148 1.7 MT.1 D0590M1 5.9 69.8 149.8 148 1.8 MT.1 D0600M1 6.0 69.8 149.8 148 1.8 MT.1 D0610M1 6.1 73.8 153.8 152 1.8 MT.1 D0620M1 CVI cd 73.9 153.9 152 1.9 MT.1 D0630M1 6.3 73.9 153.9 152 1.9 MT.1 D0640M1 6.4 73.9 153.9 152 1.9 MT.1 D0650M1 6.5 74.0 154.0 152 2.0 MT.1 D0660M1 6.6 77.0 157.0 155 2.0 MT.1 D0670M1 6.7 77.0 157.0 155 2.0 MT.1 D0680M1 cd 77.0 157.0 155 2.0 MT.1 D0690M1 6.9 77.1 157.1 155 2.1 MT.1 Order Number DC LCF OAL LF PL CZC Stock TDD0700M1 7.0 77.1 157.1 155 2.1 MT.1 D0710M1 7.1 80.1 160.1 158 2.1 MT.1 D0720M1 7.2 80.2 160.2 158 2.2 MT.1 D0730M1 7.3 80.2 160.2 158 2.2 MT.1 D0740M1 7.4 80.2 160.2 158 2.2 MT.1 D0750M1 7.5 80.3 160.3 158 2.3 MT.1 D0760M1 7.6 84.3 164.3 162 2.3 MT.1 D0770M1 7.7 84.3 164.3 162 2.3 MT.1 D0780M1 7.8 84.3 164.3 162 2.3 MT.1 D0790M1 7.9 84.4 164.4 162 2.4 MT.1 D0800M1 8.0 84.4 164.4 162 2.4 MT.1 D0810M1 8.1 87.4 170.4 168 2.4 MT.1 D0820M1 8.2 87.5 170.5 168 2.5 MT.1 D0830M1 8.3 87.5 170.5 168 2.5 MT.1 D0840M1 8.4 87.5 170.5 168 2.5 MT.1 D0850M1 8.5 87.6 170.6 168 2.6 MT.1 D0860M1 8.6 90.6 174.6 172 2.6 MT.1 D0870M1 8.7 90.6 174.6 172 2.6 MT.1 D0880M1 8.8 90.6 174.6 172 2.6 MT.1 D0890M1 8.9 90.7 174.7 172 2.7 MT.1 D0900M1 9.0 90.7 174.7 172 2.7 MT.1 D0910M1 9.1 94.7 177.7 175 2.7 MT.1 D0920M1 9.2 94.8 177.8 175 2.8 MT.1 D0930M1 9.3 94.8 177.8 175 2.8 MT.1 D0940M1 9.4 94.8 177.8 175 2.8 MT.1 D0950M1 9.5 94.9 177.9 175 2.9 MT.1 D0960M1 9.6 97.9 180.9 178 2.9 MT.1 D0970M1 9.7 97.9 180.9 178 2.9 MT.1 D0980M1 9.8 97.9 180.9 178 2.9 MT.1 D0990M1 9.9 98.0 181.0 178 3.0 MT.1 D1000M1 10.0 98.0 181.0 178 3.0 MT.1 D1010M1 10.1 101.0 185.0 182 3.0 MT.1 D1020M1 10.2 101.1 185.1 182 3.1 MT.1 D1030M1 10.3 101.1 185.1 182 3.1 MT.1 D1040M1 10.4 101.1 185.1 182 3.1 MT.1 D1050M1 10.5 101.2 185.2 182 3.2 MT.1 D1060M1 10.6 105.2 188.2 185 3.2 MT.1 D1070M1 10.7 105.2 188.2 185 3.2 MT.1 D1080M1 10.8 105.2 188.2 185 3.2 MT.1 D1090M1 10.9 105.3 188.3 185 3.3 MT.1 CUTTING CONDITIONS N199 N185 DRILLING
