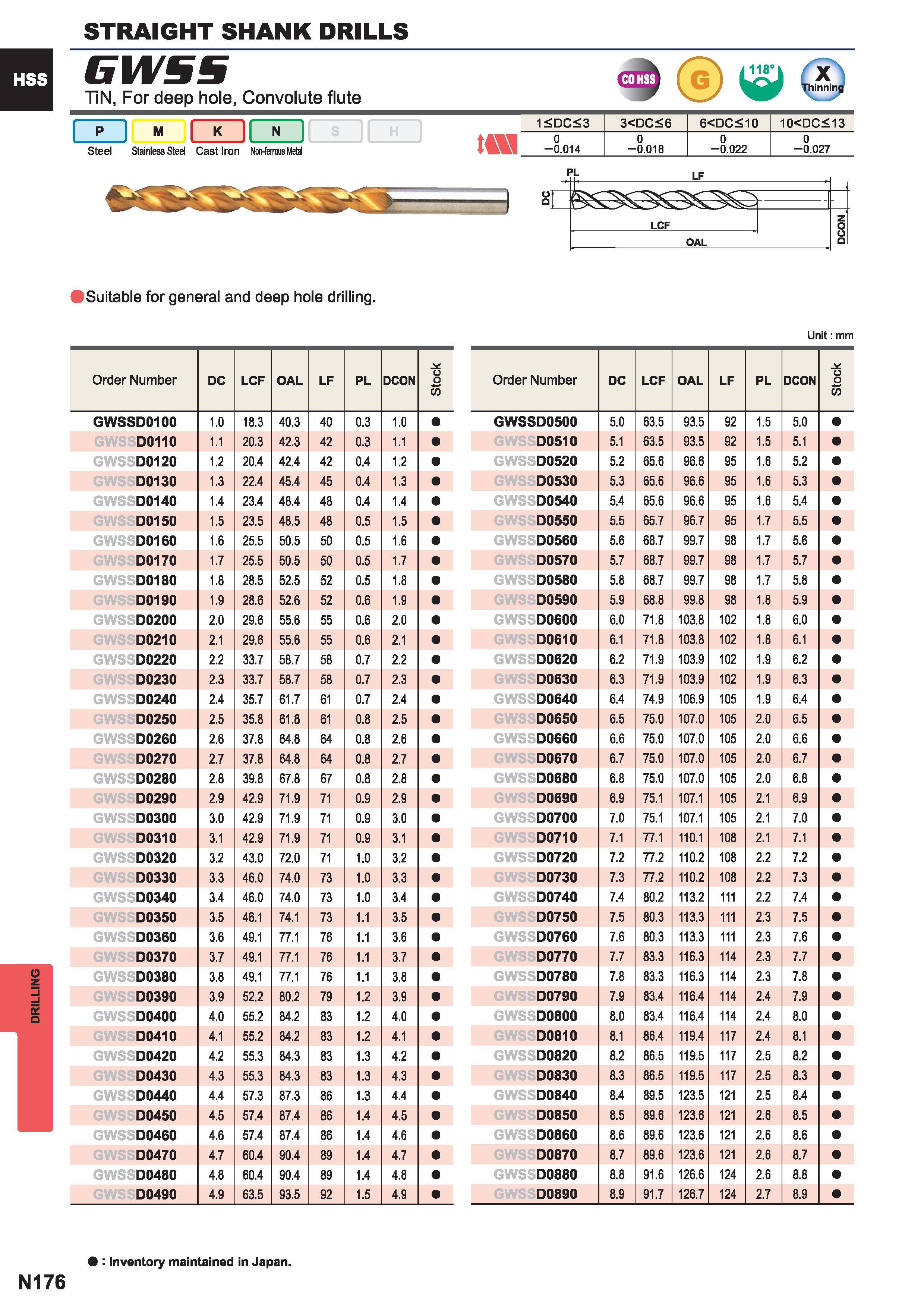

DRILLING STRAIGHT SHANK DRILLS GWSS TiN For deep hole Convolute flute 1DC3 3DC6 6DC10 10DC13 -0.014 -0.018 -0.022 -0.027 M N JLjlJ Steel Stainless Steel Cast Iron Non-ferrous Metal tin Suitable for general and deep hole drilling. Unit mm Order Number DC LCF OAL LF PL DCON Stock GWSSD0500 5.0 63.5 93.5 92 1.5 5.0 5 D0510 5.1 63.5 93.5 92 1.5 5.1 3 D0520 5.2 65.6 96.6 95 1.6 5.2 3 D0530 5.3 65.6 96.6 95 1.6 5.3 3 D0540 5.4 65.6 96.6 95 1.6 5.4 3 D0550 5.5 65.7 96.7 95 1.7 5.5 31 D0560 5.6 68.7 99.7 98 1.7 5.6 31 D0570 5.7 68.7 99.7 98 1.7 5.7 3 D0580 5.8 68.7 99.7 98 1.7 5.8 3 D0590 5.9 68.8 99.8 98 1.8 5.9 3 D0600 6.0 71.8 103.8 102 1.8 6.0 3 D0610 6.1 71.8 103.8 102 1.8 6.1 3 D0620 6.2 71.9 103.9 102 1.9 6.2 31 D0630 6.3 71.9 103.9 102 1.9 6.3 31 D0640 6.4 74.9 106.9 105 1.9 6.4 3 D0650 6.5 75.0 107.0 105 2.0 6.5 3 D0660 6.6 75.0 107.0 105 2.0 6.6 3 D0670 6.7 75.0 107.0 105 2.0 6.7 3 D0680 6.8 75.0 107.0 105 2.0 6.8 3 D0690 6.9 75.1 107.1 105 2.1 6.9 5SD0700 7.0 75.1 107.1 105 2.1 7.0 D0710 7.1 77.1 110.1 108 2.1 7.1 3 D0720 7.2 77.2 110.2 108 2.2 7.2 3 D0730 7.3 77.2 110.2 108 2.2 7.3 3 D0740 7.4 80.2 113.2 111 2.2 7.4 3 D0750 7.5 80.3 113.3 111 2.3 7.5 31 D0760 7.6 80.3 113.3 111 2.3 7.6 3 D0770 7.7 83.3 116.3 114 2.3 7.7 3 D0780 7.8 83.3 116.3 114 2.3 7.8 3 D0790 7.9 83.4 116.4 114 2.4 7.9 3 D0800 8.0 83.4 116.4 114 2.4 8.0 3 D0810 8.1 86.4 119.4 117 2.4 8.1 3 D0820 8.2 86.5 119.5 117 2.5 8.2 31 D0830 8.3 86.5 119.5 117 2.5 8.3 3 D0840 8.4 89.5 123.5 121 2.5 8.4 D0850 8.5 89.6 123.6 121 2.6 8.5 3 D0860 8.6 89.6 123.6 121 2.6 8.6 3 D0870 8.7 89.6 123.6 121 2.6 8.7 3 D0880 8.8 91.6 126.6 124 2.6 8.8 D0890 8.9 91.7 126.7 124 2.7 8.9 Order Number DC LCF OAL LF PL DCON Stock GWSSD0100 1.0 18.3 40.3 40 0.3 1.0 3 D0110 1.1 20.3 42.3 42 0.3 1.1 D0120 1.2 20.4 42.4 42 0.4 1.2 3 D0130 1.3 22.4 45.4 45 0.4 1.3 3 D0140 1.4 23.4 48.4 48 0.4 1.4 3 D0150 1.5 23.5 48.5 48 0.5 1.5 3 D0160 1.6 25.5 50.5 50 0.5 1.6 3 D0170 1.7 25.5 50.5 50 0.5 1.7 3 D0180 1.8 28.5 52.5 52 0.5 1.8 3 D0190 1.9 28.6 52.6 52 0.6 1.9 0200 2.0 29.6 55.6 55 0.6 2.0 3 D0210 2.1 29.6 55.6 55 0.6 2.1 0220 2.2 33.7 58.7 58 0.7 2.2 3 D0230 2.3 33.7 58.7 58 0.7 2.3 3 D0240 2.4 35.7 61.7 61 0.7 2.4 3 D0250 2.5 35.8 61.8 61 0.8 2.5 3 D0260 2.6 37.8 64.8 64 0.8 2.6 3 D0270 2.7 37.8 64.8 64 0.8 2.7 3 D0280 2.8 39.8 67.8 67 0.8 PO 3 D0290 2.9 42.9 71.9 71 0.9 2.9 3 D0300 3.0 42.9 71.9 71 0.9 3.0 3 D0310 3.1 42.9 71.9 71 0.9 3.1 3 D0320 3.2 43.0 72.0 71 1.0 3.2 3 D0330 3.3 46.0 74.0 73 1.0 3.3 5 D0340 3.4 46.0 74.0 73 1.0 3.4 3 D0350 3.5 46.1 74.1 73 1.1 3.5 3 D0360 3.6 49.1 77.1 76 1.1 3.6 3 D0370 3.7 49.1 77.1 76 1.1 3.7 3 D0380 3.8 49.1 77.1 76 1.1 3.8 3 D0390 3.9 52.2 80.2 79 1.2 3.9 3 D0400 4.0 55.2 84.2 83 1.2 4.0 3 D0410 4.1 55.2 84.2 83 1.2 4.1 3 D0420 4.2 55.3 84.3 83 1.3 4.2 3 D0430 4.3 55.3 84.3 83 1.3 4.3 3 D0440 4.4 57.3 87.3 86 1.3 4.4 3 D0450 4.5 57.4 87.4 86 1.4 4.5 3 D0460 4.6 57.4 87.4 86 1.4 4.6 3 D0470 4.7 60.4 90.4 89 1.4 4.7 3 D0480 4.8 60.4 90.4 89 1.4 4.8 D0490 4.9 63.5 93.5 92 1.5 4.9 Inventory maintained in Japan. N176
