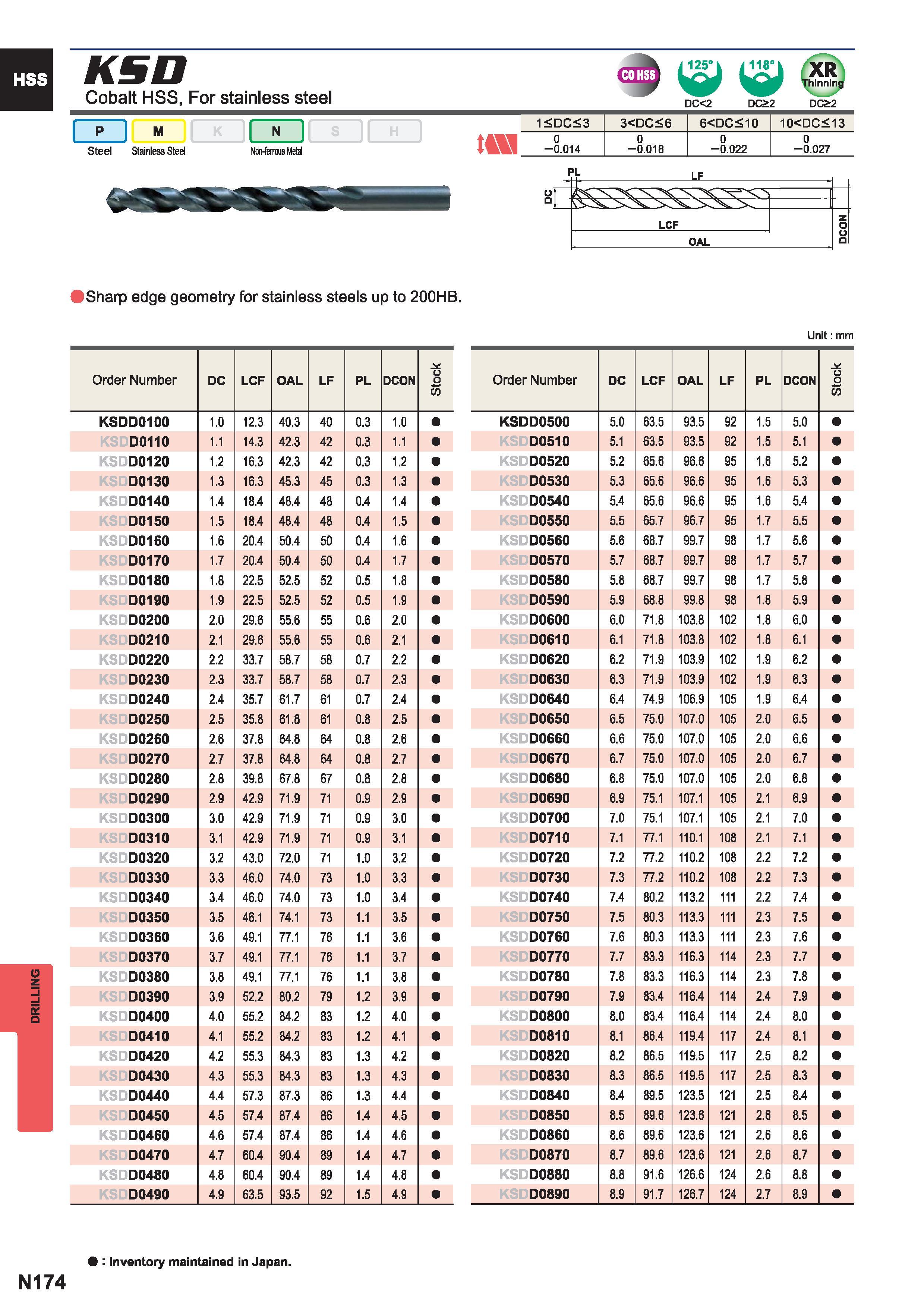

KSO Cobalt HSS For stainless steel DC2 DC 2 DC&2 P 1 M S Steel Stainless Steel Non-ferrous Metal tin 1DC3 3DC6 6DC10 10DC13 -0.014 -0.018 -0.022 -0.027 PL LF LCF z o OAL u Q Sharp edge geometry for stainless steels up to 200HB. Unit mm Order Number DC LCF OAL LF PL DCON Stock KSDD0100 1.0 12.3 40.3 40 0.3 1.0 3DD0110 1.1 14.3 42.3 42 0.3 1.1 D0120 1.2 16.3 42.3 42 0.3 1.2 0130 1.3 16.3 45.3 45 0.3 1.3 D0140 1.4 18.4 48.4 48 0.4 1.4 D0150 1.5 18.4 48.4 48 0.4 1.5 D0160 1.6 20.4 50.4 50 0.4 1.6 D0170 1.7 20.4 50.4 50 0.4 1.7 D0180 1.8 22.5 52.5 52 0.5 1.8 D0190 1.9 22.5 52.5 52 0.5 1.9 0200 2.0 29.6 55.6 55 0.6 2.0 D0210 2.1 29.6 55.6 55 0.6 2.1 0220 2.2 33.7 58.7 58 0.7 CM Csj 0230 2.3 33.7 58.7 58 0.7 2.3 0240 2.4 35.7 61.7 61 0.7 2.4 0250 2.5 35.8 61.8 61 0.8 2.5 D0260 2.6 37.8 64.8 64 0.8 2.6 0270 2.7 37.8 64.8 64 0.8 2.7 0280 2.8 39.8 67.8 67 0.8 PO 0290 2.9 42.9 71.9 71 0.9 2.9 0300 3.0 42.9 71.9 71 0.9 3.0 0310 3.1 42.9 71.9 71 0.9 3.1 D0320 3.2 43.0 72.0 71 1.0 3.2 0330 3.3 46.0 74.0 73 1.0 3.3 D0340 3.4 46.0 74.0 73 1.0 3.4 0350 3.5 46.1 74.1 73 1.1 3.5 0360 3.6 49.1 77.1 76 1.1 3.6 0370 3.7 49.1 77.1 76 1.1 3.7 0380 3.8 49.1 77.1 76 1.1 3.8 D0390 3.9 52.2 80.2 79 1.2 3.9 0400 4.0 55.2 84.2 83 1.2 4.0 D0410 4.1 55.2 84.2 83 1.2 4.1 D0420 4.2 55.3 84.3 83 1.3 4.2 D0430 4.3 55.3 84.3 83 1.3 4.3 0440 4.4 57.3 87.3 86 1.3 4.4 D0450 4.5 57.4 87.4 86 1.4 4.5 0460 4.6 57.4 87.4 86 1.4 4.6 D0470 4.7 60.4 90.4 89 1.4 4.7 0480 4.8 60.4 90.4 89 1.4 4.8 D0490 4.9 63.5 93.5 92 1.5 4.9 Order Number DC LCF OAL LF PL DCON Stock KSDD0500 5.0 63.5 93.5 92 1.5 5.0 D0510 5.1 63.5 93.5 92 1.5 5.1 D0520 5.2 65.6 96.6 95 1.6 5.2 D0530 5.3 65.6 96.6 95 1.6 5.3 D0540 5.4 65.6 96.6 95 1.6 5.4 0550 5.5 65.7 96.7 95 1.7 5.5 D0560 5.6 68.7 99.7 98 1.7 5.6 D0570 5.7 68.7 99.7 98 1.7 5.7 D0580 5.8 68.7 99.7 98 1.7 5.8 D0590 5.9 68.8 99.8 98 1.8 5.9 D0600 6.0 71.8 103.8 102 1.8 6.0 D0610 6.1 71.8 103.8 102 1.8 6.1 D0620 6.2 71.9 103.9 102 1.9 6.2 D0630 6.3 71.9 103.9 102 1.9 6.3 D0640 6.4 74.9 106.9 105 1.9 6.4 D0650 6.5 75.0 107.0 105 2.0 6.5 D0660 6.6 75.0 107.0 105 2.0 6.6 D0670 6.7 75.0 107.0 105 2.0 6.7 0680 6.8 75.0 107.0 105 2.0 6.8 D0690 6.9 75.1 107.1 105 2.1 6.9 D0700 7.0 75.1 107.1 105 2.1 7.0 D0710 7.1 77.1 110.1 108 2.1 7.1 D0720 7.2 77.2 110.2 108 2.2 7.2 D0730 7.3 77.2 110.2 108 2.2 7.3 D0740 7.4 80.2 113.2 111 2.2 7.4 D0750 7.5 80.3 113.3 111 2.3 7.5 D0760 7.6 80.3 113.3 111 2.3 7.6 D0770 7.7 83.3 116.3 114 2.3 7.7 D0780 7.8 83.3 116.3 114 2.3 7.8 D0790 7.9 83.4 116.4 114 2.4 7.9 D0800 8.0 83.4 116.4 114 2.4 8.0 D0810 8.1 86.4 119.4 117 2.4 8.1 D0820 8.2 86.5 119.5 117 2.5 8.2 D0830 8.3 86.5 119.5 117 2.5 8.3 D0840 8.4 89.5 123.5 121 2.5 8.4 D0850 8.5 89.6 123.6 121 2.6 8.5 D0860 8.6 89.6 123.6 121 2.6 8.6 D0870 8.7 89.6 123.6 121 2.6 8.7 0880 8.8 91.6 126.6 124 2.6 8.8 D0890 8.9 91.7 126.7 124 2.7 8.9 Inventory maintained in Japan.
