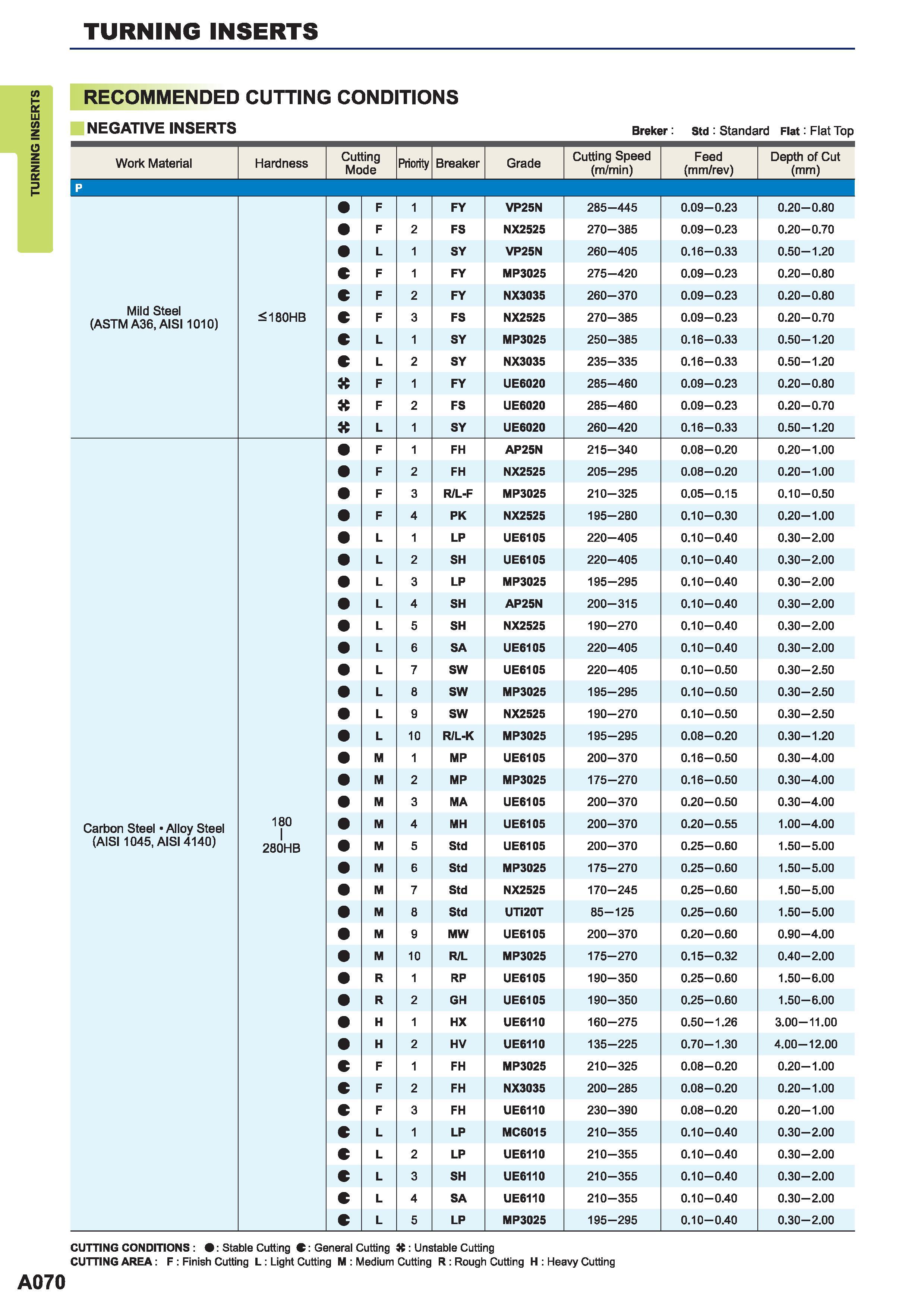

Negative turning inserts Mitsubishi Recommended cutting conditions Table Work Material Hardness Cutting Mode Priority Breaker Grade Cutting Speed (m/min) Feed (mm/rev) Depth of Cut (mm) F 1 FY VP25N 285-445 0.09-0.23 0.20-0.80 F 2 FS NX2525 270-385 0.09-0.23 0.20-0.70 L 1 SY VP25N 260-405 0.16-0.33 0.50-1.20 C F 1 FY MP3025 275-420 0.09-0.23 0.20-0.80 Mild Steel (ASTM A36 AISI 1010) e F 2 FY NX3035 260-370 0.09-0.23 0.20-0.80 180HB e F 3 FS NX2525 270-385 0.09-0.23 0.20-0.70 e L 1 SY MP3025 250-385 0.16-0.33 0.50-1.20 c L 2 SY NX3035 235-335 0.16-0.33 0.50-1.20 F 1 FY UE6020 285-460 0.09-0.23 0.20-0.80 F 2 FS UE6020 285-460 0.09-0.23 0.20-0.70 L 1 SY UE6020 260-420 0.16-0.33 0.50-1.20 F 1 FH AP25N 215-340 0.08-0.20 0.20-1.00 F 2 FH NX2525 205-295 0.08-0.20 0.20-1.00 F 3 R L-F MP3025 210-325 0.05-0.15 0.10-0.50 F 4 PK NX2525 195-280 0.10-0.30 0.20-1.00 L 1 LP UE6105 220-405 0.10-0.40 0.30-2.00 L 2 SH UE6105 220-405 0.10-0.40 0.30-2.00 L 3 LP MP3025 195-295 0.10-0.40 0.30-2.00 L 4 SH AP25N 200-315 0.10-0.40 0.30-2.00 L 5 SH NX2525 190-270 0.10-0.40 0.30-2.00 L 6 SA UE6105 220-405 0.10-0.40 0.30-2.00 L 7 SW UE6105 220-405 0.10-0.50 0.30-2.50 L 8 SW MP3025 195-295 0.10-0.50 0.30-2.50 L g SW NX2525 190-270 0.10-0.50 0.30-2.50 L 10 R L-K MP3025 195-295 0.08-0.20 0.30-1.20 M 1 MP UE6105 200-370 0.16-0.50 0.30-4.00 M 2 MP MP3025 175-270 0.16-0.50 0.30-4.00 M 3 MA UE6105 200-370 0.20-0.50 0.30-4.00 Carbon Steel Alloy Steel 180 M 4 MH UE6105 200-370 0.20-0.55 1.00-4.00 (AISI 1045 AISI 4140) 280HB M 5 Std UE6105 200-370 0.25-0.60 1.50-5.00 M 6 Std MP3025 175-270 0.25-0.60 1.50-5.00 M 7 Std NX2525 170-245 0.25-0.60 1.50-5.00 M 8 Std UTi20T 85-125 0.25-0.60 1.50-5.00 M 9 MW UE6105 200-370 0.20-0.60 0.90-4.00 M 10 R L MP3025 175-270 0.15-0.32 0.40-2.00 R 1 RP UE6105 190-350 0.25-0.60 1.50-6.00 R 2 GH UE6105 190-350 0.25-0.60 1.50-6.00 H 1 HX UE6110 160-275 0.50-1.26 3.00-11.00 H 2 HV UE6110 135-225 0.70-1.30 4.00-12.00 e F 1 FH MP3025 210-325 0.08-0.20 0.20-1.00 e F 2 FH NX3035 200-285 0.08-0.20 0.20-1.00 e F 3 FH UE6110 230-390 0.08-0.20 0.20-1.00 c L 1 LP MC6015 210-355 0.10-0.40 0.30-2.00 c L 2 LP UE6110 210-355 0.10-0.40 0.30-2.00 c L 3 SH UE6110 210-355 0.10-0.40 0.30-2.00 c L 4 SA UE6110 210-355 0.10-0.40 0.30-2.00 e L 5 LP MP3025 195-295 0.10-0.40 0.30-2.00 CUTTING CONDITIONS Stable Cutting C General Cutting W Unstable Cutting CUTTING AREA F Finish Cutting L Light Cutting M Medium Cutting R Rough Cutting H Heavy Cutting A070 TURNING INSERTS TURNING INSERTS RECOMMENDED CUTTING CONDITIONS NEGATIVE INSERTS Breker Std Standard Flat Flat Top
