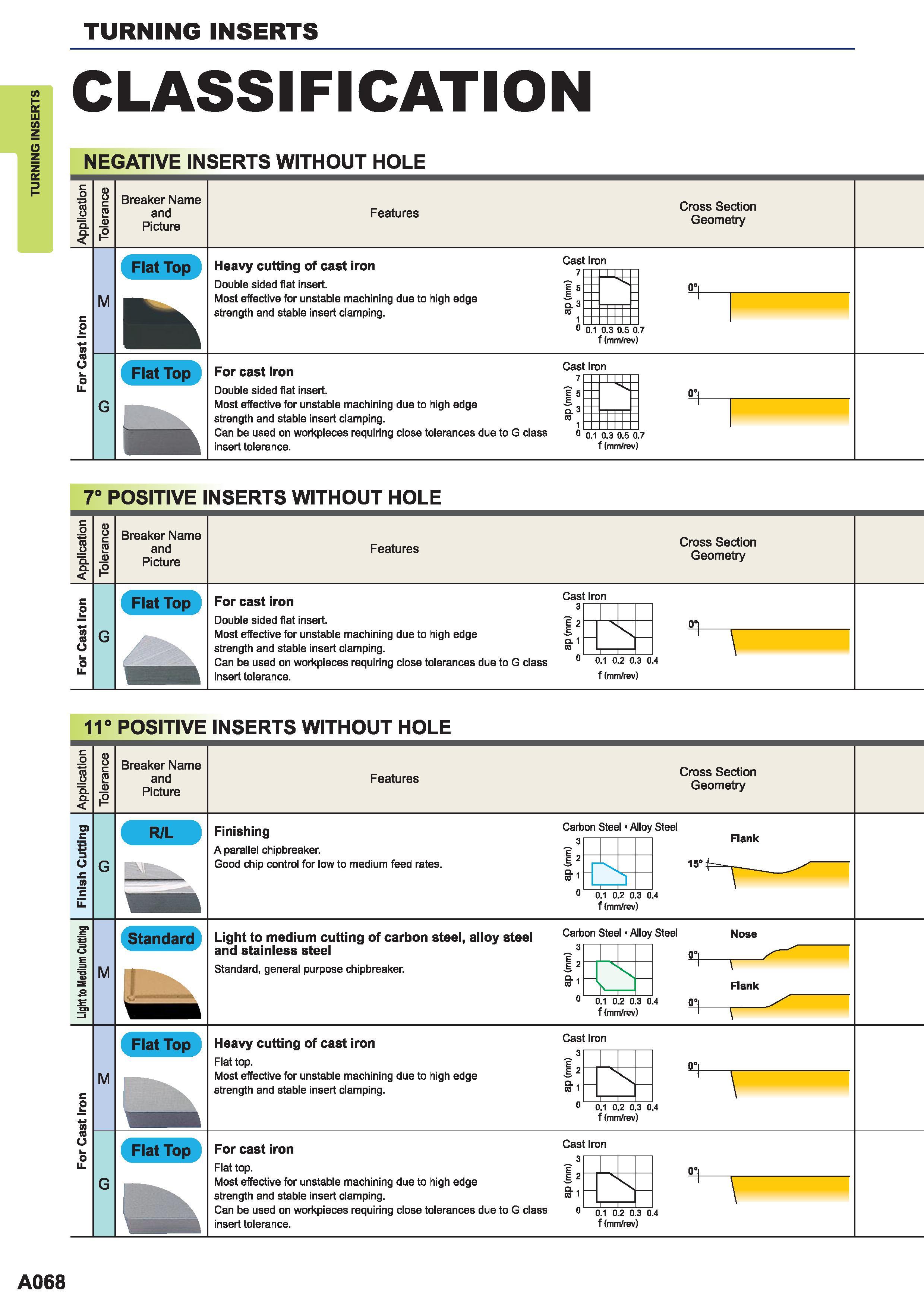

TURNING INSERTS TURNING INSERTS CLASSIFICATION NEGATIVE INSERTS WITHOUT HOLE g cl a. Breaker Name and Picture Features Cross Section Geometry M Heavy cutting of cast iron Double sided flat insert. Most effective for unstable machining due to high edge strength and stable insert clamping. Cast Iron 7 I5 3 1 0 0.1 0.3 0.5 0.7 f (mm/rev) For cast iron Double sided flat insert. Most effective for unstable machining due to high edge strength and stable insert clamping. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 7 I5 0 0.1 0.3 0.5 0.7 f (mm/rev) 7 POSITIVE INSERTS WITHOUT HOLE Breaker Name and Picture Features Cross Section Geometry Flat Top For cast iron Double sided flat insert. Most effective for unstable machining due to high edge strength and stable insert clamping. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 3 r I2 1 TO 0 0.1 0.2 0.3 0.4 f (mm/rev) 11 POSITIVE INSERTS WITHOUT HOLE Breaker Name and Picture Features Cross Section Geometry O) c 5 3 o RIL Finishing A parallel chipbreaker. Good chip control for low to medium feed rates. Carbon Steel Alloy Steel 3 r Flank 0 0.1 0.2 0.3 0.4 f (mm/rev) Standard M Light to medium cutting of carbon steel alloy steel and stainless steel Standard general purpose chipbreaker. Carbon Steel Alloy Steel 3r 2 Nose 1 - Flank 0.1 0.2 0.3 0.4 f (mm/rev) Flat Top M Heavy cutting of cast iron Flat top. Most effective for unstable machining due to high strength and stable insert clamping. Cast Iron 3r h ra 1 0.1 0.2 0.3 0.4 f (mm/rev) For cast iron Flat top. Most effective for unstable machining due to high edge strength and stable insert clamping. Can be used on workpieces requiring close tolerances due to G class insert tolerance. Cast Iron 3r I2 1 0 0.1 0.2 0.3 0.4 f (mm/rev) A068
