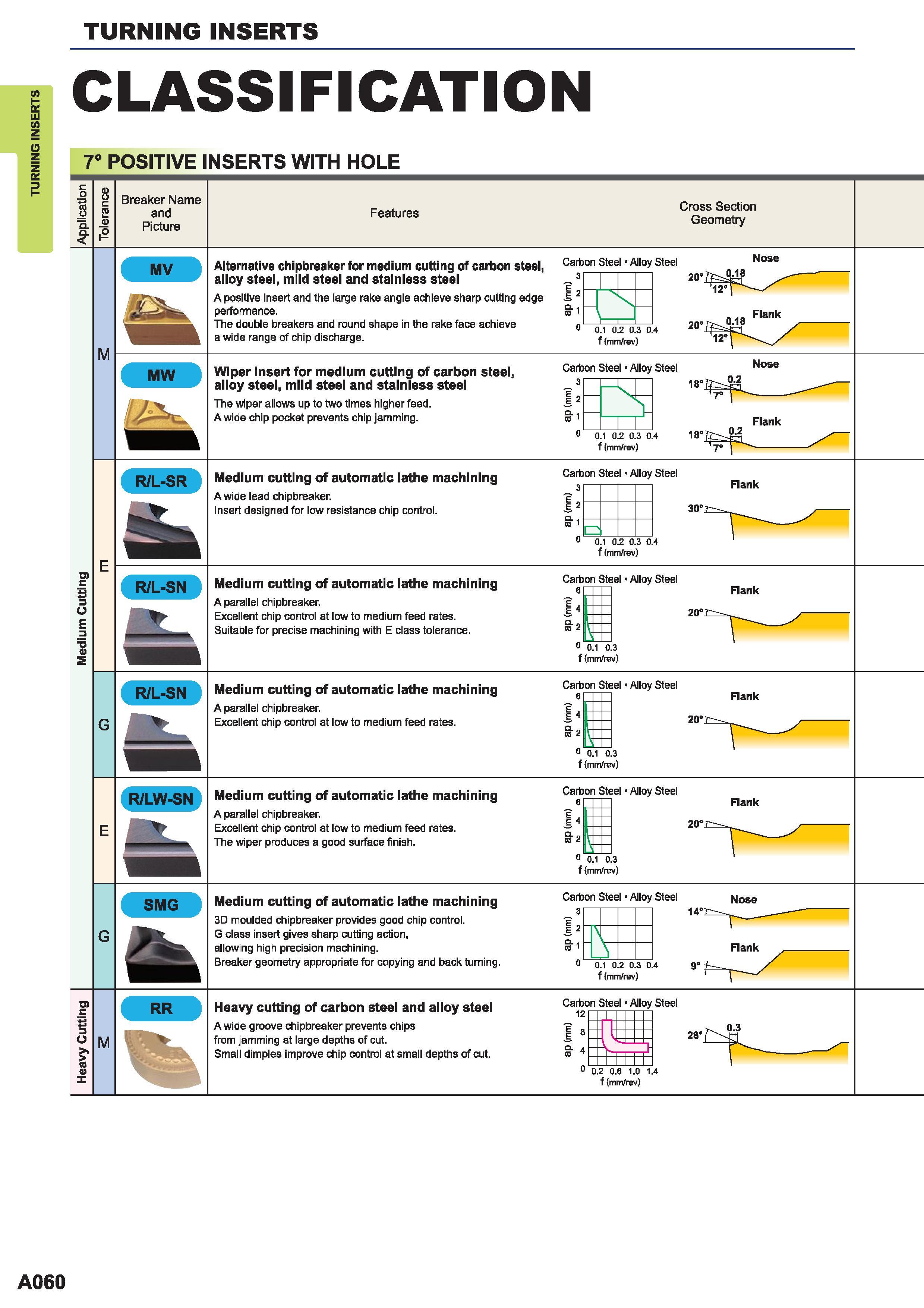

TURNING INSERTS TURNING INSERTS CLASSIFICATION 7 POSITIVE INSERTS WITH HOLE g a. a. Breaker Name and Picture Features Cross Section Geometry MV Alternative chipbreaker for medium cutting of carbon steel alloy steel mild steel and stainless steel A positive insert and the large rake angle achieve sharp cutting edge performance. The double breakers and round shape in the rake face achieve a wide range of chip discharge. Carbon Steel Alloy Steel 3T 2 Nose M 0 0.1 0.2 0.3 0.4 f (mm/rev) MW Wiper insert for medium cutting of carbon steel alloy steel mild steel and stainless steel The wiper allows up to two times higher feed. A wide chip pocket prevents chip jamming. Carbon Steel Alloy Steel 3T 1 2 Nose 0 0.1 0.2 0.3 0.4 f (mm/rev) 18' Flank Medium cutting of automatic lathe machining A wide lead chipbreaker. Insert designed for low resistance chip control. Carbon Steel Alloy Steel 3r 2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) Medium cutting of automatic lathe machining A parallel chipbreaker. Excellent chip control at low to medium feed rates. Suitable for precise machining with E class tolerance. Carbon Steel Alloy Steel 4 m2 Flank 0 0.1 0.3 f (mm/rev) Medium cutting of automatic lathe machining A parallel chipbreaker. Excellent chip control at low to medium feed rates. Carbon Steel Alloy Steel 4 m2 Flank 0 0.1 0.3 f (mm/rev) Medium cutting of automatic lathe machining A parallel chipbreaker. Excellent chip control at low to medium feed rates. The wiper produces a good surface finish. Carbon Steel Alloy Steel 4 m2 Flank 0 0.1 0.3 f (mm/rev) Medium cutting of automatic lathe machining 3D moulded chipbreaker provides good chip control. G class insert gives sharp cutting action allowing high precision machining. Breaker geometry appropriate for copying and back turning. Carbon Steel Alloy Steel 3r 0 Nose Flank U. U.Z U.O f (mm/rev) M Heavy cutting of carbon steel and alloy steel A wide groove chipbreaker prevents chips from jamming at large depths of cut. Small dimples improve chip control at small depths of cut. Carbon Steel Alloy Steel 12 r Ftt Tfl 0 0.2 0.6 1.0 1.4 f (mm/rev) A060
