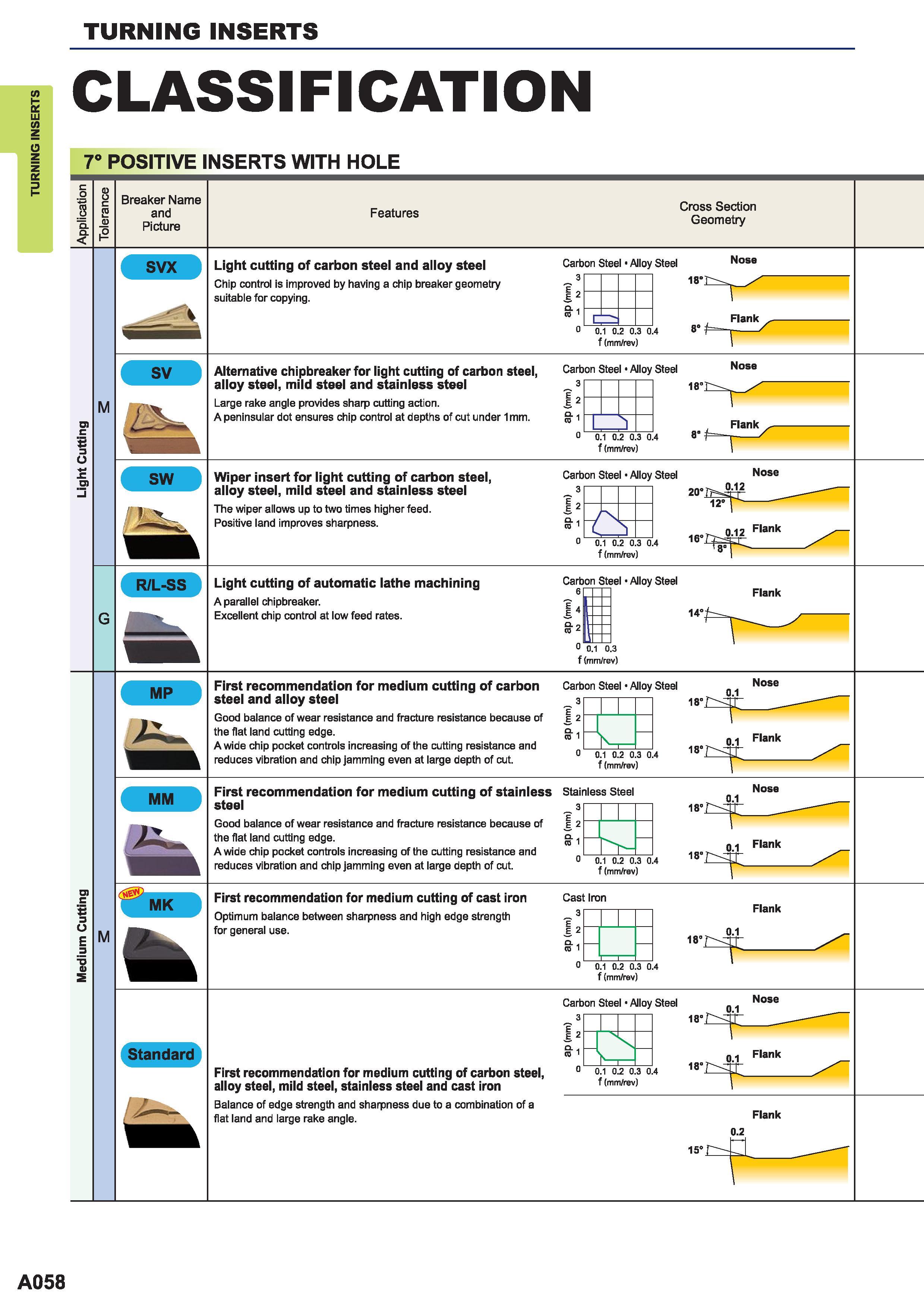

TURNING INSERTS TURNING INSERTS CLASSIFICATION 7 POSITIVE INSERTS WITH HOLE g a. a. Breaker Name and Picture Features Cross Section Geometry svx Light cutting of carbon steel and alloy steel Chip control is improved by having a chip breaker geometry suitable for copying. Carbon Steel Alloy Steel sr 2 Nose 18 o 0.1 0.2 0.3 0.4 f (mm/rev) Flank 8 M O) c e 3 o Alternative chipbreaker for light cutting of carbon steel alloy steel mild steel and stainless steel Large rake angle provides sharp cutting action. A peninsular dot ensures chip control at depths of cut under 1 mm. Carbon Steel Alloy Steel 3 2 Nose "1 18 o 0.1 0.2 0.3 0.4 f (mm/rev) Flank r - -' Wiper insert for light cutting of carbon steel alloy steel mild steel and stainless steel The wiper allows up to two times higher feed. Positive land improves sharpness. Carbon Steel Alloy Steel 3r Nose o 0.1 0.2 0.3 0.4 f (mm/rev) 16' 012 Flank Light cutting of automatic lathe machining A parallel chipbreaker. Excellent chip control at low feed rates. Carbon Steel Alloy Steel Flank 0 0.1 0.3 f (mm/rev) First recommendation for medium cutting of carbon steel and alloy steel Good balance of wear resistance and fracture resistance because of the flat land cutting edge. A wide chip pocket controls increasing of the cutting resistance and reduces vibration and chip jamming even at large depth of cut. Carbon Steel Alloy Steel 3r U TO 1 0 0.1 0.2 0.3 0.4 f (mm/rev) 0.1 Nose Flank First recommendation for medium cutting of stainless Stainless steel steel 3 Good balance of wear resistance and fracture resistance because of the flat land cutting edge. A wide chip pocket controls increasing of the cutting resistance and reduces vibration and chip jamming even at large depth of cut. 2 1 o 0.1 0.2 0.3 0.4 f (mm/rev) 18 Nose 01 Flank O) c C 3 o M First recommendation for medium cutting of cast iron Optimum balance between sharpness and high edge strength for general use. Cast Iron ra 1 0.1 0 1 0.2 0 (mm/rev 3 0 First recommendation for medium cutting of carbon steel alloy steel mild steel stainless steel and cast iron Balance of edge strength and sharpness due to a combination of a flat land and large rake angle. Carbon Steel Alloy Steel 3 0 Nose 0.1 0.2 0.3 0.4 f (mm/rev) 18-r r 0.1 i8r C Flank Flank A058
