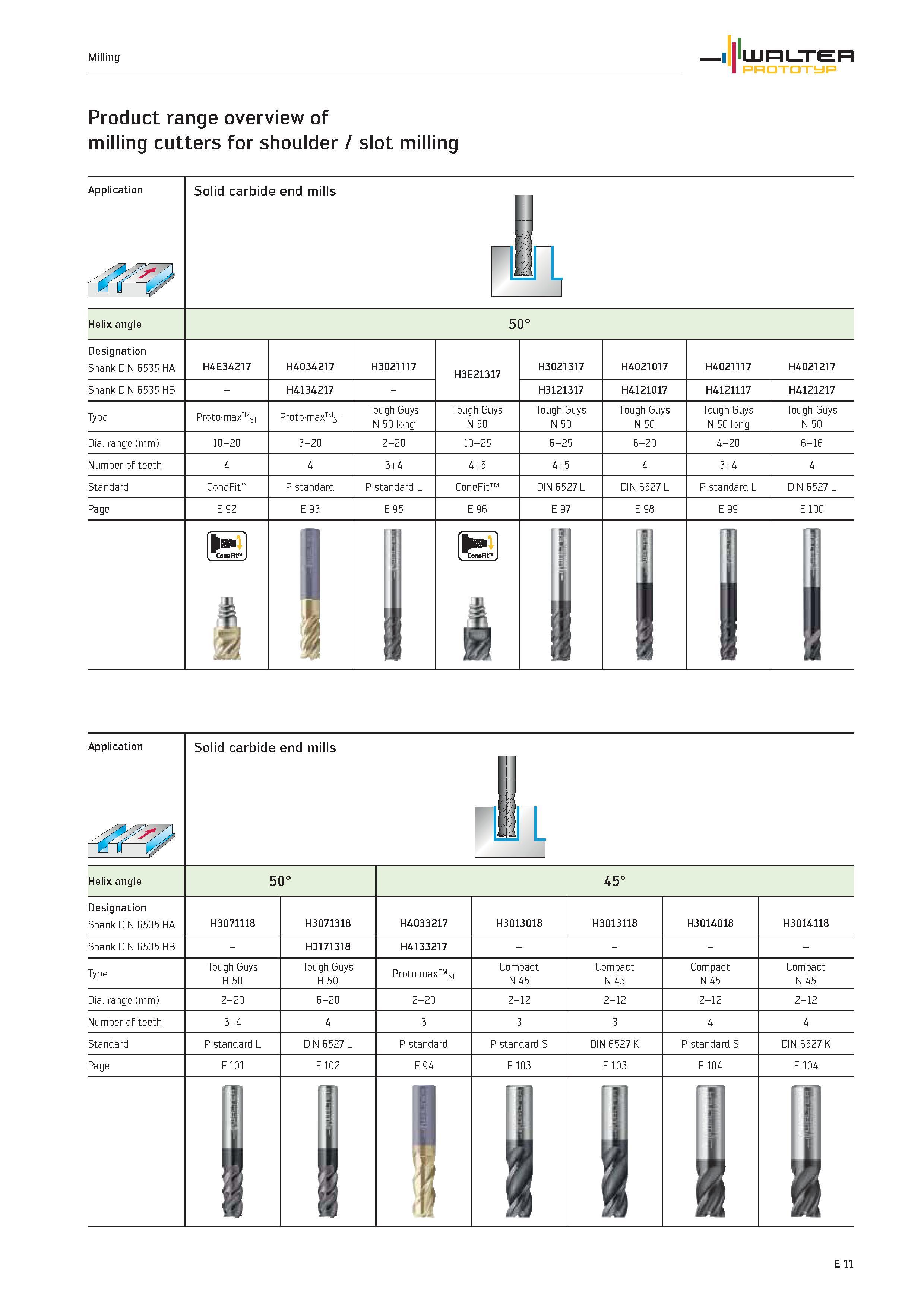

Milling WALTER PROTOTYP Product range overview of milling cutters for shoulder / slot milling Application Solid carbide end mills ll Helix angle

Milling WALTER PROTOTYP Product range overview of milling cutters for shoulder / slot milling Application Solid carbide end mills ll Helix angle 50° Designation Shank DIN 6535 HA H4E34217 H4034217 H3021117 H3E21317 H3021317 H4021017 H4021117 H4021217 Shank DIN 6535 HB H4134217 H3121317 H4121017 H4121117 H4121217 Type Proto-maxTMST Proto-maxTMST Tough Guys N 50 long Tough Guys N 50 Tough Guys N 50 Tough Guys N 50 Tough Guys N 50 long Tough Guys N 50 Dia. range (mm) 10-20 3-20 2-20 10-25 6-25 6-20 4-20 6-16 Number of teeth 4 4 3+4 4+5 4+5 4 3+4 4 Standard ConeFit P standard P standard L ConeFit DIN 6527 L DIN 6527 L P standard L DIN 6527 L Page E 92 E 93 E 95 E 96 E 97 E 98 E 99 E 100 1 i j I ConeFit N" ConeFit 1 Application Solid carbide end mills -i Helix angle 50° 45° Designation Shank DIN 6535 HA H3071118 H3071318 H4033217 H3013018 H3013118 H3014018 H3014118 Shank DIN 6535 HB H3171318 H4133217 Type Tough Guys H 50 Tough Guys H 50 Protomax ST Compact N 45 Compact N 45 Compact N 45 Compact N 45 Dia. range (mm) 2-20 6-20 2-20 2-12 2-12 2-12 2-12 Number of teeth 3+4 4 3 3 3 4 4 Standard P standard L DIN 6527 L P standard P standard S DIN 6527 K P standard S DIN 6527 K Page E 101 E 102 E 94 E 103 E 103 E 104 E 104 E 11
