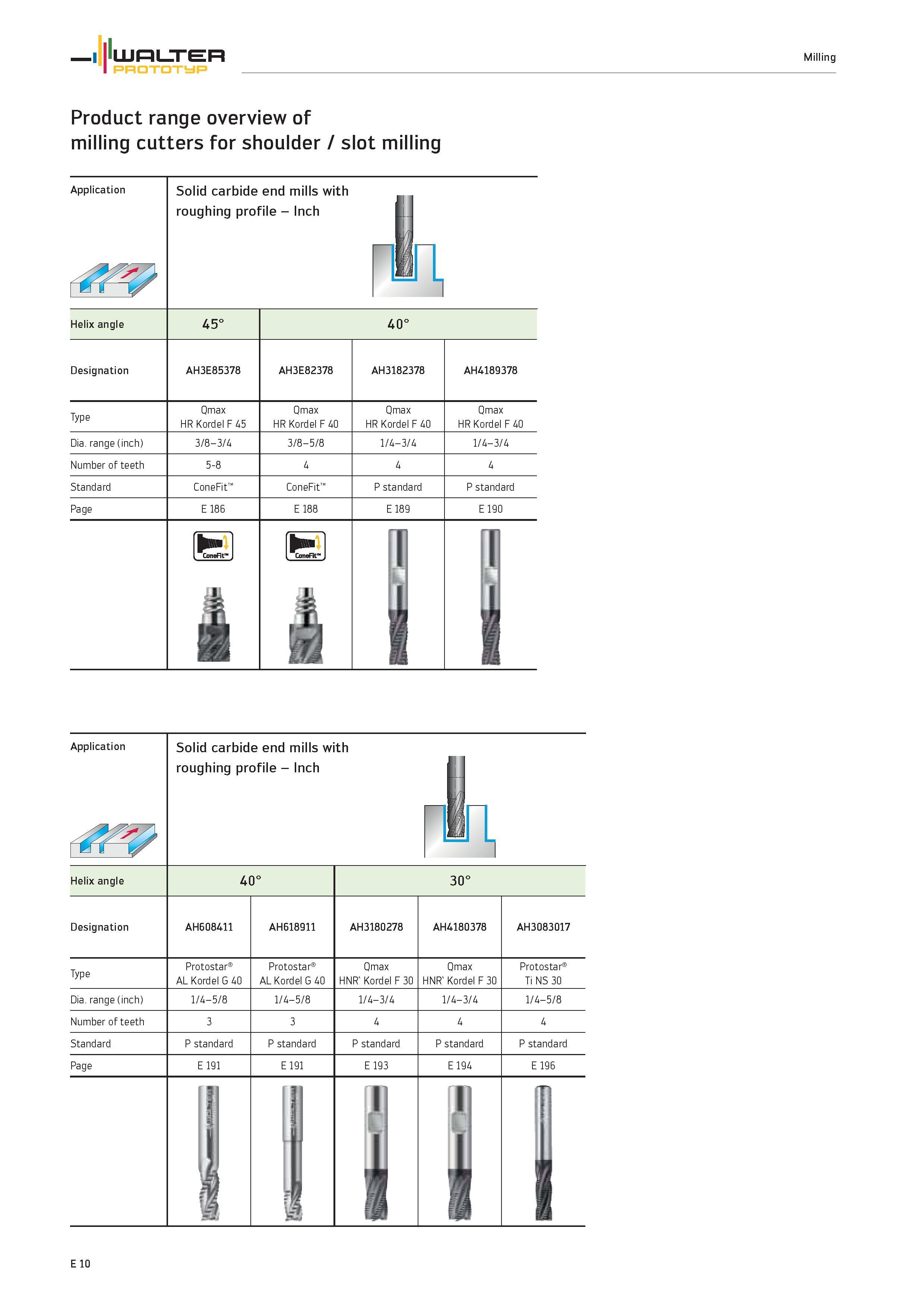

Milling Product range overview of milling cutters WALTER PROTOTYP for shoulder / slot milling Application Solid carbide end mills with roughing profile Inch Helix angle 45° 40° Designation AH3E85378 AH3E82378 AH3182378 AH4189378 Type Qmax HR Kordel F 45 Qmax HR Kordel F 40 Qmax HR Kordel F 40 Qmax HR Kordel F 40 Dia. range (inch) 3/8-3/4 3/8-5/8 1/4-3/4 1/4-3/4 Number of teeth 5-8 Standard ConeFit ConeFit P standard P standard Page E 186 E 188 E 189 E 190 I T 4 4 4 Application Solid carbide end mills with roughing profile Inch k Helix angle 0 4 0 3 Designation AH608411 AH618911 AH3180278 AH4180378 AH3083017 Type Protostar AL Kordel G 40 Protostar AL Kordel G 40 Qmax HNR' Kordel F 30 Qmax HNR' Kordel F 30 Protostar Ti NS 30 Dia. range (inch) 1/4-5/8 1/4-5/8 1/4-3/4 1/4-3/4 1/4-5/8 Number of teeth 3 3 4 4 4 Standard P standard P standard P standard P standard P standard Page E 191 E 191 E 193 E 194 E 196 l tsab E 10
