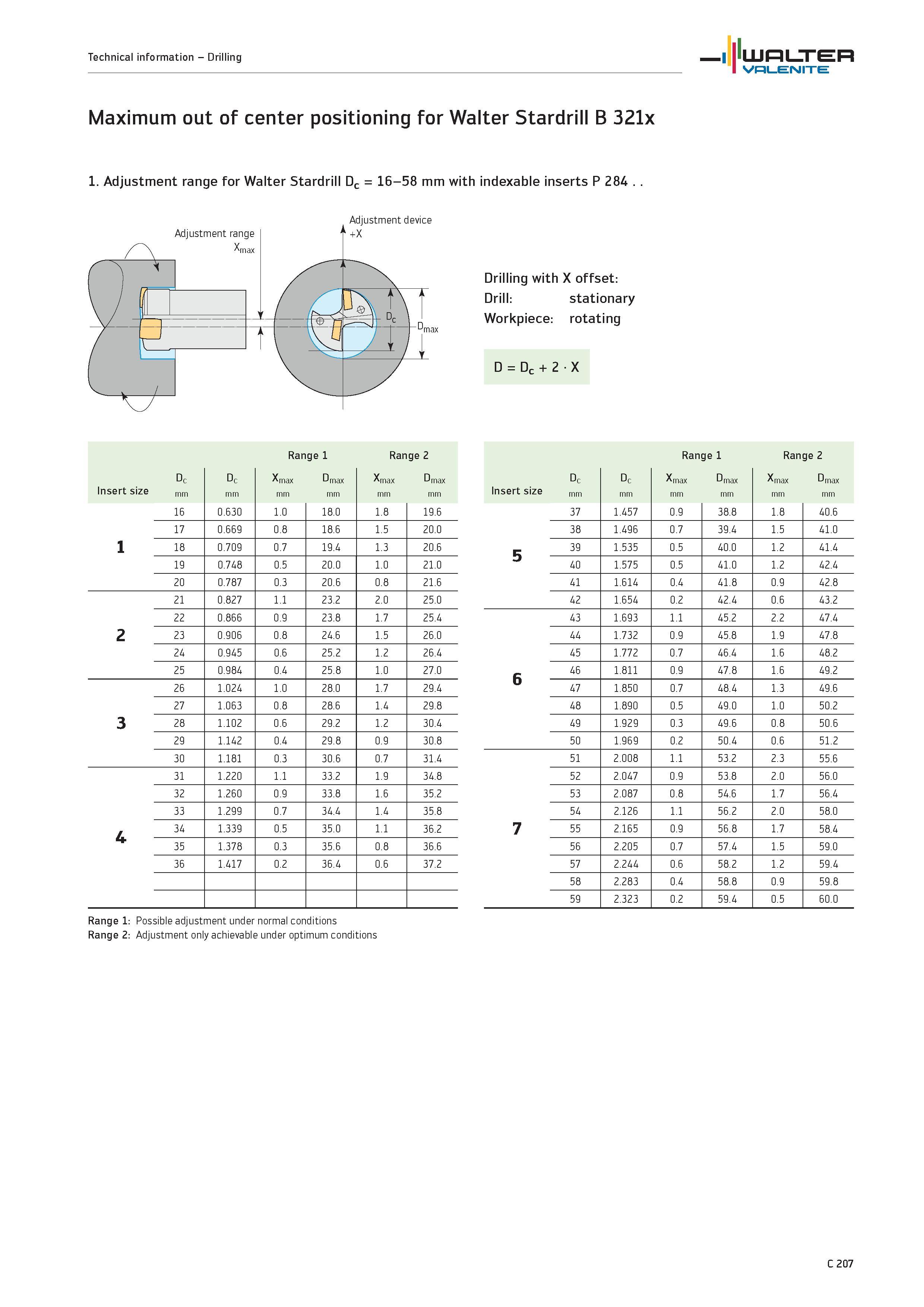

Maximum out of center positioning for Walter Stardrill B 321x 1 Adjustment range for Walter Stardrill Dc 16-58 mm with indexable inserts P 284 Dr

Maximum out of center positioning for Walter Stardrill B 321x 1. Adjustment range for Walter Stardrill Dc 16-58 mm with indexable inserts P 284 Drilling with X offset Drill stationary Workpiece rotating D Dc + 2 X Range 1 Range 2 Dc Insert size mm Dc mm Xmax Dmax mm Xmax Dmax mm 16 0.630 1.0 18.0 1.8 19.6 17 0.669 0.8 18.6 1.5 20.0 1 18 0.709 0.7 19.4 1.3 20.6 19 0.748 0.5 20.0 1.0 21.0 20 0.787 0.3 20.6 0.8 21.6 21 0.827 1.1 23.2 2.0 25.0 22 0.866 0.9 23.8 1.7 25.4 3 2 2 0.906 0.8 24.6 1.5 26.0 24 0.945 0.6 25.2 1.2 26.4 25 0.984 0.4 25.8 1.0 27.0 26 1.024 1.0 28.0 1.7 29.4 27 1.063 0.8 28.6 1.4 29.8 3 2 1.102 0.6 29.2 1.2 30.4 29 1.142 0.4 29.8 0.9 30.8 30 1.181 0.3 30.6 0.7 31.4 31 1.220 1.1 33.2 1.9 34.8 32 1.260 0.9 33.8 1.6 35.2 33 1.299 0.7 34.4 1.4 35.8 4 34 1.339 0.5 35.0 1.1 36.2 4 35 1.378 0.3 35.6 0.8 36.6 36 1.417 0.2 36.4 0.6 37.2 Range 1 Possible adjustment under normal conditions Range 2 Adjustment only achievable under optimum conditions Range 1 Range 2 Dc Insert size mm Dc mm Xmax Dmax mm Xmax Dmax mm 37 1.457 0.9 38.8 1.8 40.6 38 1.496 0.7 39.4 1.5 41.0 5 39 1.535 0.5 40.0 1.2 41.4 5 40 1.575 0.5 41.0 1.2 42.4 41 1.614 0.4 41.8 0.9 42.8 42 1.654 0.2 42.4 0.6 43.2 43 1.693 1.1 45.2 2.2 47.4 44 1.732 0.9 45.8 1.9 47.8 45 1.772 0.7 46.4 1.6 48.2 6 46 1.811 0.9 47.8 1.6 49.2 6 47 1.850 0.7 48.4 1.3 49.6 48 1.890 0.5 49.0 1.0 50.2 49 1.929 0.3 49.6 0.8 50.6 50 1.969 0.2 50.4 0.6 51.2 51 2.008 1.1 53.2 2.3 55.6 52 2.047 0.9 53.8 2.0 56.0 53 2.087 0.8 54.6 1.7 56.4 54 2.126 1.1 56.2 2.0 58.0 7 55 2.165 0.9 56.8 1.7 58.4 56 2.205 0.7 57.4 1.5 59.0 57 2.244 0.6 58.2 1.2 59.4 58 2.283 0.4 58.8 0.9 59.8 59 2.323 0.2 59.4 0.5 60.0 C 207 Technical information Drilling WALTER Valenite
