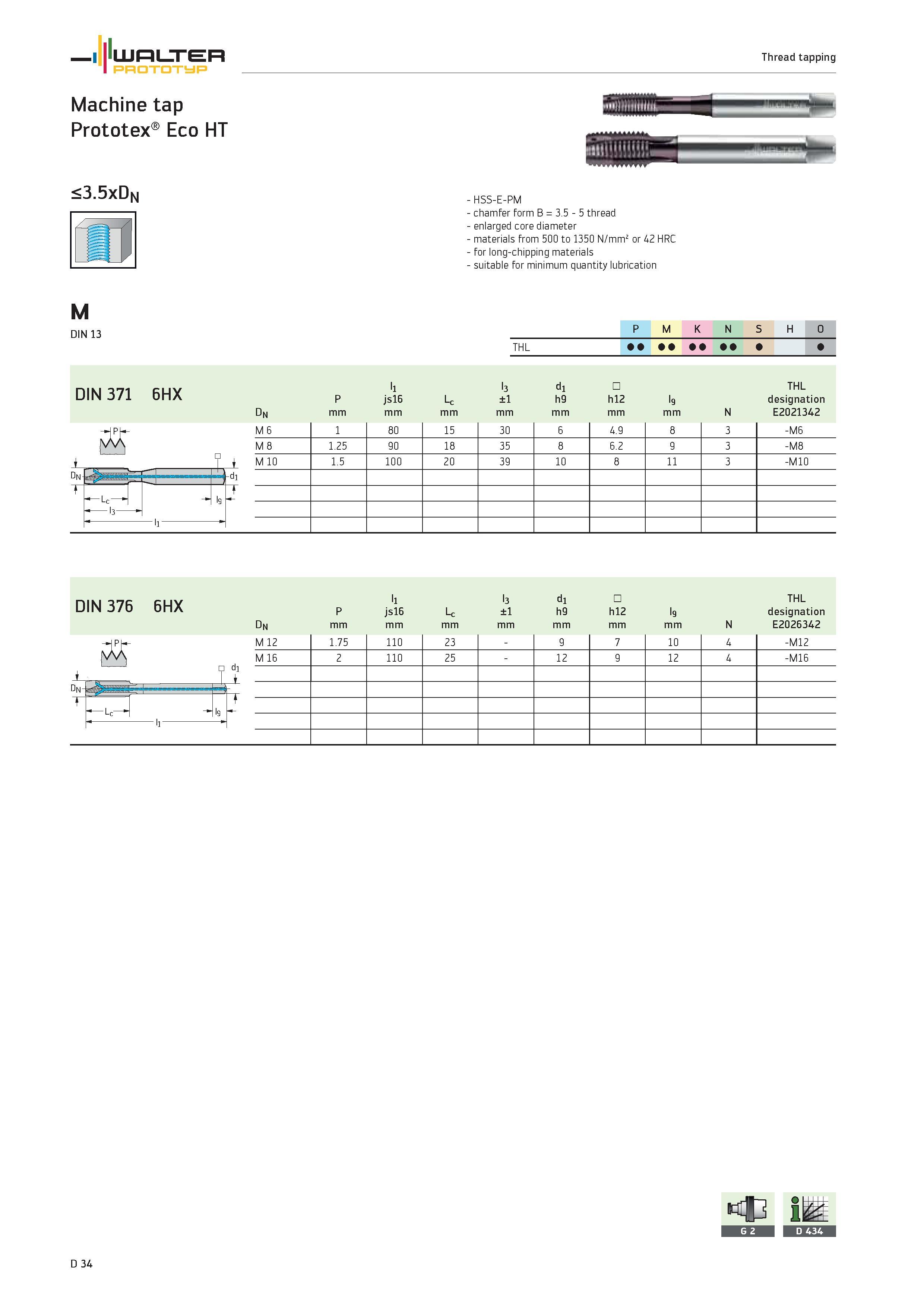

Machine tap WALTER Prototyp Prototex Eco HT Thread tapping <3.5xDn HSS-E-PM chamfer form B 3.5 5 thread enlarged core diameter materials from 500 to 1350 N/mm2 or 42 HRC for long-chipping materials suitable for minimum quantity lubrication M DIN 13 1 P M K N S H O THL DIN 371 6HX Dn P mm l1 js16 mm Lc mm l3 ±1 mm 19 m dhm h12 mm l9 mm N THL designation E2021342 A z M 6 1 80 15 30 6 4.9 8 3 -M6 M 8 1.25 90 18 35 8 6.2 9 3 -M8 I J M 10 1.5 100 20 39 10 8 11 3 -M10 1 di t T 13 ll DIN 376 6HX P l1 js16 Lc l3 ±1 19 dh h12 l9 THL designation Dn mm N E2026342 M 12 1.75 110 23 9 7 10 4 -M12 M 16 2 110 25 12 9 12 4 -M16 D 34
