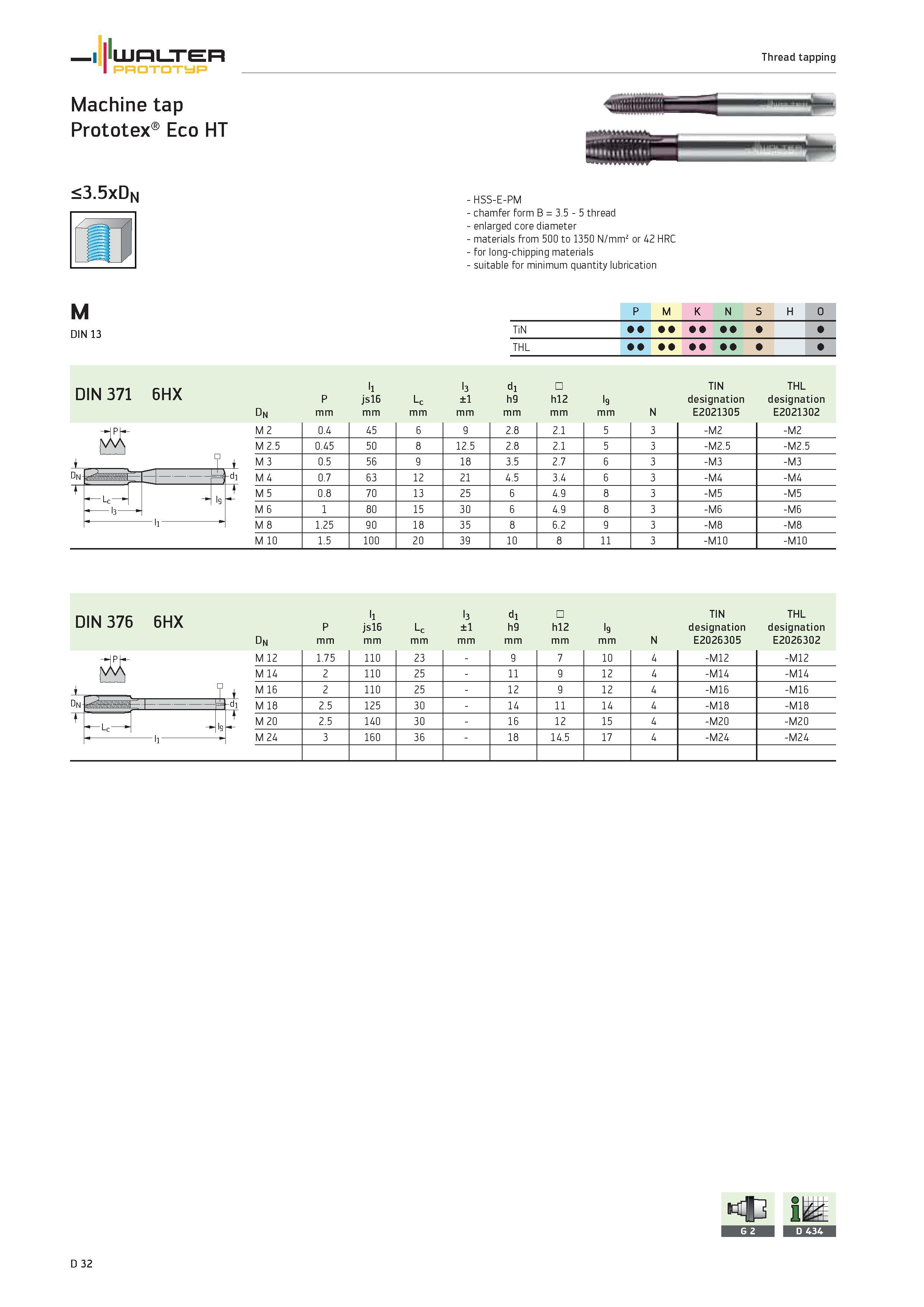

Machine tap WALTER Prototyp Prototex Eco HT <3 5xDn HSS-E-PM chamfer form B 3 5 5 thread enlarged core diameter materials from 500 to 1350 N/mm2

Machine tap WALTER Prototyp Prototex Eco HT <3.5xDn HSS-E-PM chamfer form B 3.5 5 thread enlarged core diameter materials from 500 to 1350 N/mm2 or 42 HRC for long-chipping materials suitable for minimum quantity lubrication M DIN 13 1 P M K N S H O TiN THL din 371 6HX ll l3 d1 TIN THL P js16 Lc ±1 h9 h12 l9 designation designation Dn mm N E2021305 E2021302 M 2 0.4 45 6 9 2.8 2.1 5 3 -M2 -M2 M 2.5 0.45 50 8 12.5 2.8 2.1 5 3 -M2.5 -M2.5 M 3 0.5 56 9 18 3.5 2.7 6 3 -M3 -M3 M 4 0.7 63 12 21 4.5 3.4 6 3 -M4 -M4 M 5 0.8 70 13 25 6 4.9 8 3 -M5 -M5 M 6 1 80 15 30 6 4.9 8 3 -M6 -M6 M 8 1.25 90 18 35 8 6.2 9 3 -M8 -M8 M 10 1.5 100 20 39 10 8 11 3 -M10 -M10 DIN 376 6HX Dn P mm l1 js16 mm Lc mm l3 ±1 mm 19 m dhm h12 mm l9 mm N TIN designation E2026305 THL designation E2026302 z M 12 1.75 110 23 9 7 10 4 -M12 -M12 M 14 2 110 25 11 9 12 4 -M14 -M14 M 16 2 110 25 12 9 12 4 -M16 -M16 Dn H d M 18 2.5 125 30 14 11 14 4 -M18 -M18 Lc M 20 2.5 140 30 16 12 15 4 -M20 -M20 l M 24 3 160 36 18 14.5 17 4 -M24 -M24 D 32 iH Thread tapping
