Концевые фрезы Derek AHU с режущими сменными пластинами из твердого сплава AHU Right Angle Shoulder Milling Cutter

Концевые фрезы Derek AHU с режущими сменными пластинами из твердого сплава AHU Right Angle Shoulder Milling Cutter

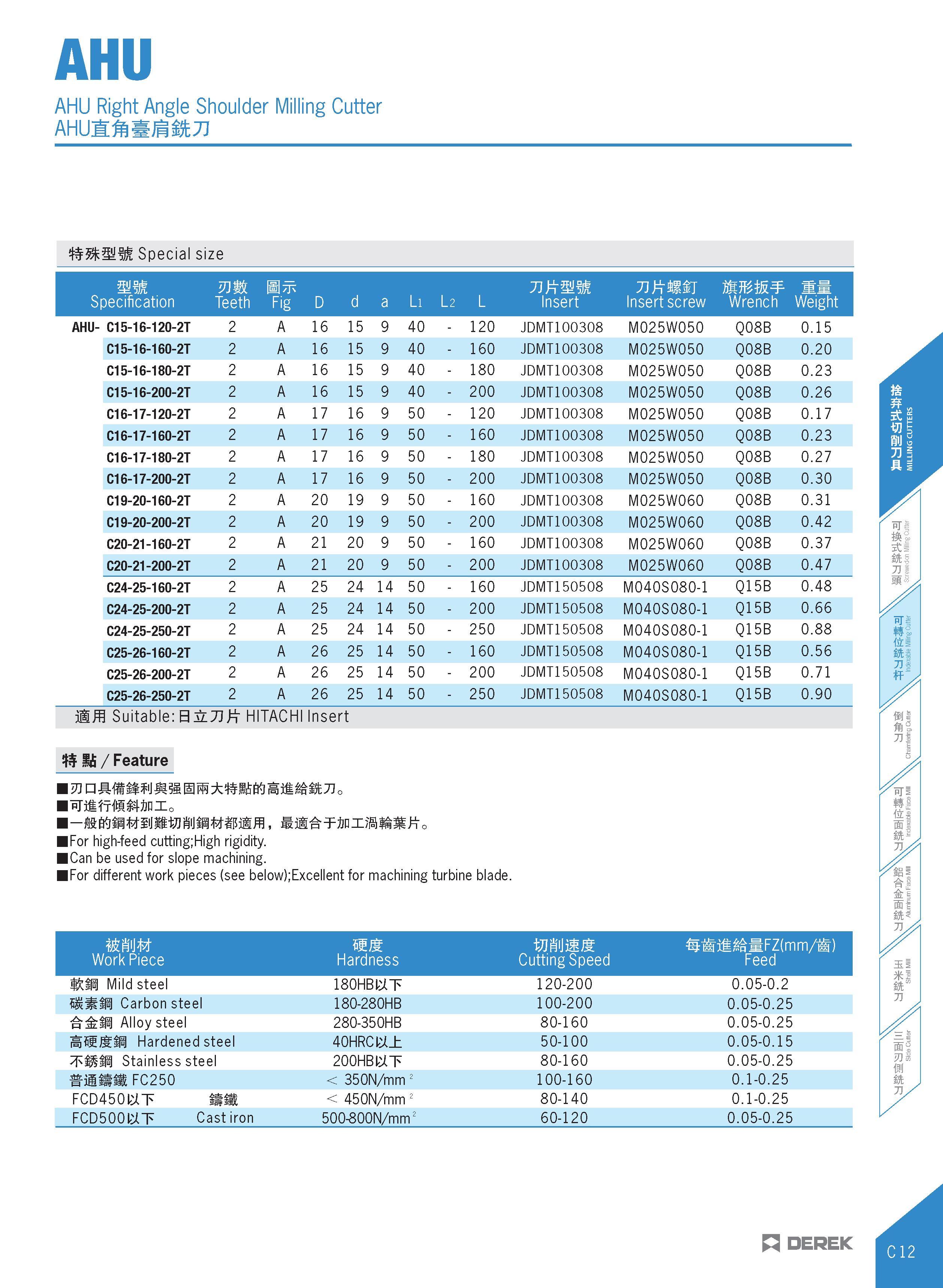

Концевые фрезы Derek AHU с режущими сменными пластинами из твердого сплава AHU Right Angle Shoulder Milling Cutter _ AHUifcM&JJ Special size mm Bttc jixmm TJttSSj WMW ff Specification Teeth Fig D d a Li L2 L Insert Insert screw Wrench Weight AHU- C15-16-120-2T 2 A 16 15 9 40 - 120 JDMT100308 M025W050 Q08B 0.15 C15-16-160-2T 2 A 16 15 9 40 - 160 JDMT100308 M025W050 Q08B 0.20 C15-16-180-2T 2 A 16 15 9 40 - 180 JDMT100308 M025W050 Q08B 0.23 C15-16-200-2T 2 A 16 15 9 40 - 200 JDMT100308 M025W050 Q08B 0.26 C16-17-120-2T 2 A 17 16 9 50 - 120 JDMT100308 M025W050 Q08B 0.17 C16-17-160-2T 2 A 17 16 9 50 - 160 JDMT100308 M025W050 Q08B 0.23 C16-17-180-2T 2 A 17 16 9 50 - 180 JDMT100308 M025W050 Q08B 0.27 C16-17-200-2T 2 A 17 16 9 50 - 200 JDMT100308 M025W050 Q08B 0.30 C19-20-160-2T 2 A 20 19 9 50 - 160 JDMT100308 M025W060 Q08B 0.31 C19-20-200-2T 2 A 20 19 9 50 - 200 JDMT100308 M025W060 Q08B 0.42 C20-21-160-2T 2 A 21 20 9 50 - 160 JDMT100308 M025W060 Q08B 0.37 C20-21-200-2T 2 A 21 20 9 50 - 200 JDMT100308 M025W060 Q08B 0.47 C24-25-160-2T 2 A 25 24 14 50 - 160 JDMT150508 M040S080-1 Q15B 0.48 C24-25-200-2T 2 A 25 24 14 50 - 200 JDMT150508 M040S080-1 Q15B 0.66 C24-25-250-2T 2 A 25 24 14 50 - 250 JDMT150508 M040S080-1 Q15B 0.88 C25-26-160-2T 2 A 26 25 14 50 - 160 JDMT150508 M040S080-1 Q15B 0.56 C25-26-200-2T 2 A 26 25 14 50 - 200 JDMT150508 M040S080-1 Q15B 0.71 C25-26-250-2T 2 A 26 25 14 50 - 250 JDMT150508 M040S080-1 Q15B 0.90 jlffl Suitable: R±L7 ft HITACHI Insert S li / Feature nlii \tfS 4in i o u-mmnmmmmwnmm, For high-feed cutting;High rigidity. Can be used for slope machining. For different work pieces (see below);Excellent for machining turbine blade. Work Piece 5f it Hardness EJilM Cutting Speed ttii,tpilFZ(mm/if) Feed Mild steel 180HBUIT 120-200 0.05-0.2 Carbon steel 180-280HB 100-200 0.05-0.25 Alloy steel 280-350HB 80-160 0.05-0.25 Hardened steel 40HRCUl± 50-100 0.05-0.15 Stainless steel 200HBUIT 80-160 0.05-0.25 FC250 < 350N/mm ; 100-160 0.1-0.25 FCD450WT tilt < 450N/mm ; 80-140 0.1-0.25 FCD500WF Cast iron 500-800N/mnr 60-120 0.05-0.25 DEPEK
