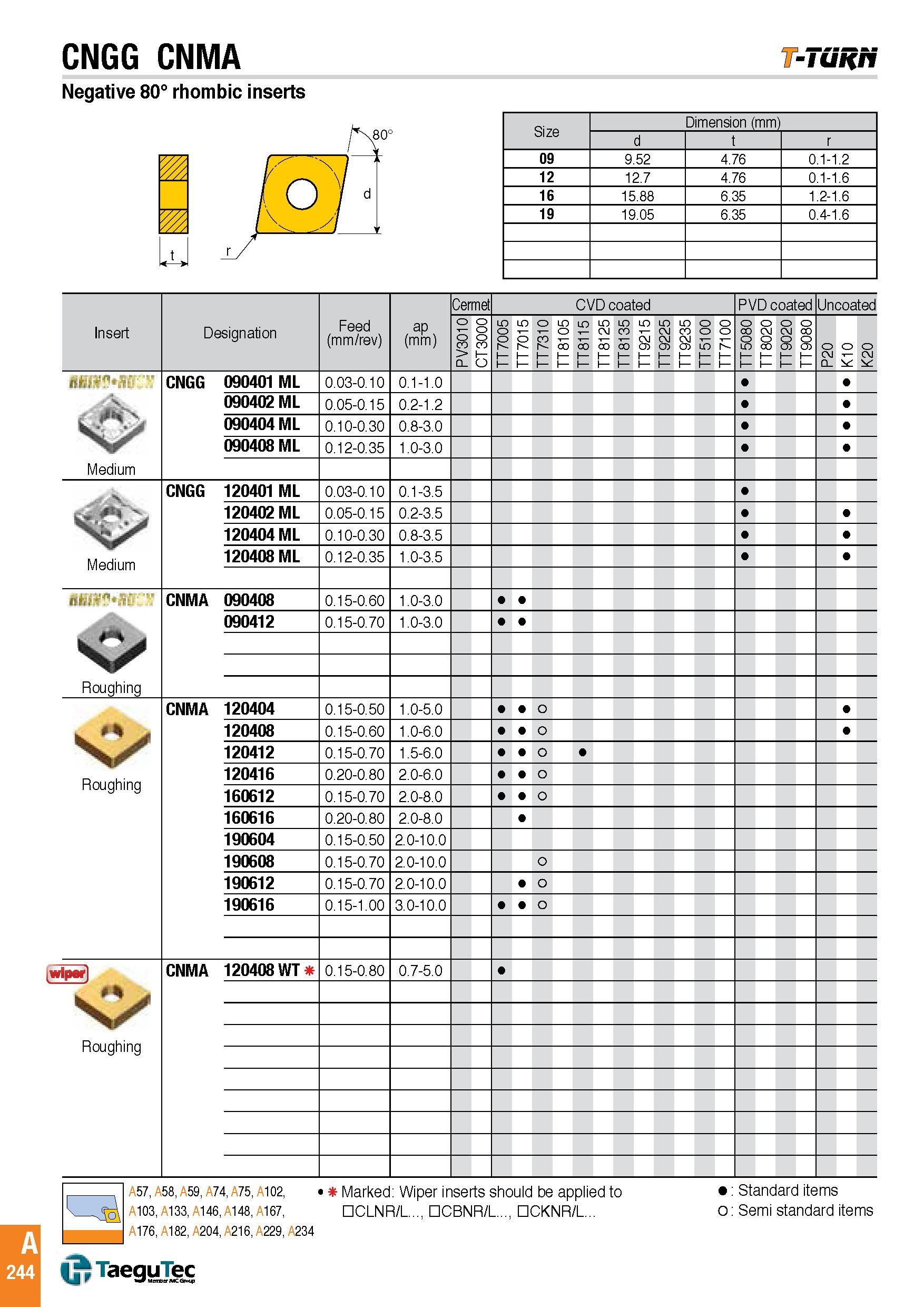

CNGG CNMA v-tgrh Negative 80° rhombic inserts Size Dimension (mm) d t r 09 9.52 4.76 0.1-1.2 12 12.7 4.76 0.1-1.6 16 15.88 6.35 1.2-1.6 19 19.05 6.35 0.4-1.6 Insert Designation Feed (mm/rev) ap (mm) Cermet CVD coated PVD coated Uncoatec o o CO CL o o o 3 1 o TT7005 TT7015 TT7310 TT8105 TT8115 TT8125 TT8135 TT9215 TT9225 TT9235 TT5100 O o TT 1 TT5080I TT8020 TT9020 O 8 o TT 1 o CM CL O o 2 Medium CNGG 090401 ML 0.03-0.10 0.1-1.0 090402 ML 0.05-0.15 0.2-1.2 090404 ML 0.10-0.30 0.8-3.0 090408 ML 0.12-0.35 1.0-3.0 Medium CNGG 120401 ML 0.03-0.10 0.1-3.5 120402 ML 0.05-0.15 0.2-3.5 120404 ML 0.10-0.30 0.8-3.5 120408 ML 0.12-0.35 1.0-3.5 o Roughing CNMA 090408 0.15-0.60 1.0-3.0 090412 0.15-0.70 1.0-3.0 Roughing CNMA 120404 0.15-0.50 1.0-5.0 o 120408 0.15-0.60 1.0-6.0 o 120412 0.15-0.70 1.5-6.0 o 120416 0.20-0.80 2.0-6.0 o 160612 0.15-0.70 2.0-8.0 o 160616 0.20-0.80 2.0-8.0 190604 0.15-0.50 2.0-10.0 190608 0.15-0.70 2.0-10.0 o 190612 0.15-0.70 2.0-10.0 o 190616 0.15-1.00 3.0-10.0 o Roughing CNMA 120408 WT 0.15-0.80 0.7-5.0 A57, A58, A59, A74, A75, A102, A103, A133, A146, A148, A167, A176, A182, A204, A216, A229, A234 ' Marked Wiper inserts should be applied to CLNR/L..., CBNR/L..., CKNR/L Standard items o Semi standard items U TaeguTec
