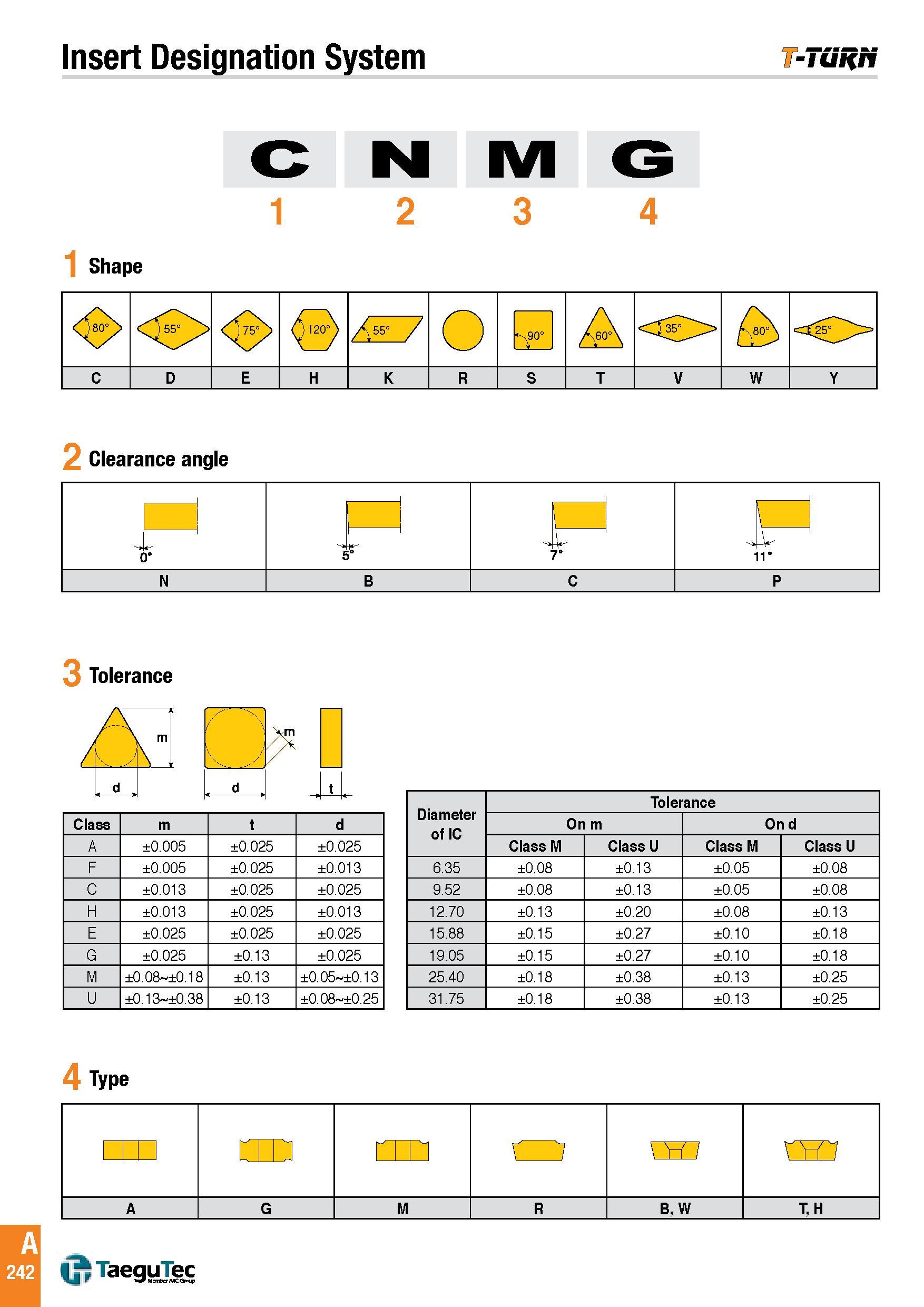

Insert Designation System -Tuh/t CNMG 4 1 Shape <0> <8> A55" / O ‘°00O° A <35> T> C D E H K R S T V W Y 2 Clearance angle 3 Tolerance - , d , _L Class m t d A ±0.005 ±0.025 ±0.025 F ±0.005 ±0.025 ±0.013 C ±0.013 ±0.025 ±0.025 H ±0.013 ±0.025 ±0.013 E ±0.025 ±0.025 ±0.025 G ±0.025 ±0.13 ±0.025 M ±0.08 ±0.18 ±0.13 ±0.05 ±0.13 U ±0.13 ±0.38 ±0.13 ±0.08 ±0.25 Diameter of IC Tolerance On m On d Class M Class U Class M Class U 6.35 ±0.08 ±0.13 ±0.05 ±0.08 9.52 ±0.08 ±0.13 ±0.05 ±0.08 12.70 ±0.13 ±0.20 ±0.08 ±0.13 15.88 ±0.15 ±0.27 ±0.10 ±0.18 19.05 ±0.15 ±0.27 ±0.10 ±0.18 25.40 ±0.18 ±0.38 ±0.13 ±0.25 31.75 ±0.18 ±0.38 ±0.13 ±0.25 4 Type tm OD \ w / YYT1 A G M R B, W T, H A 242 TaeguTec
