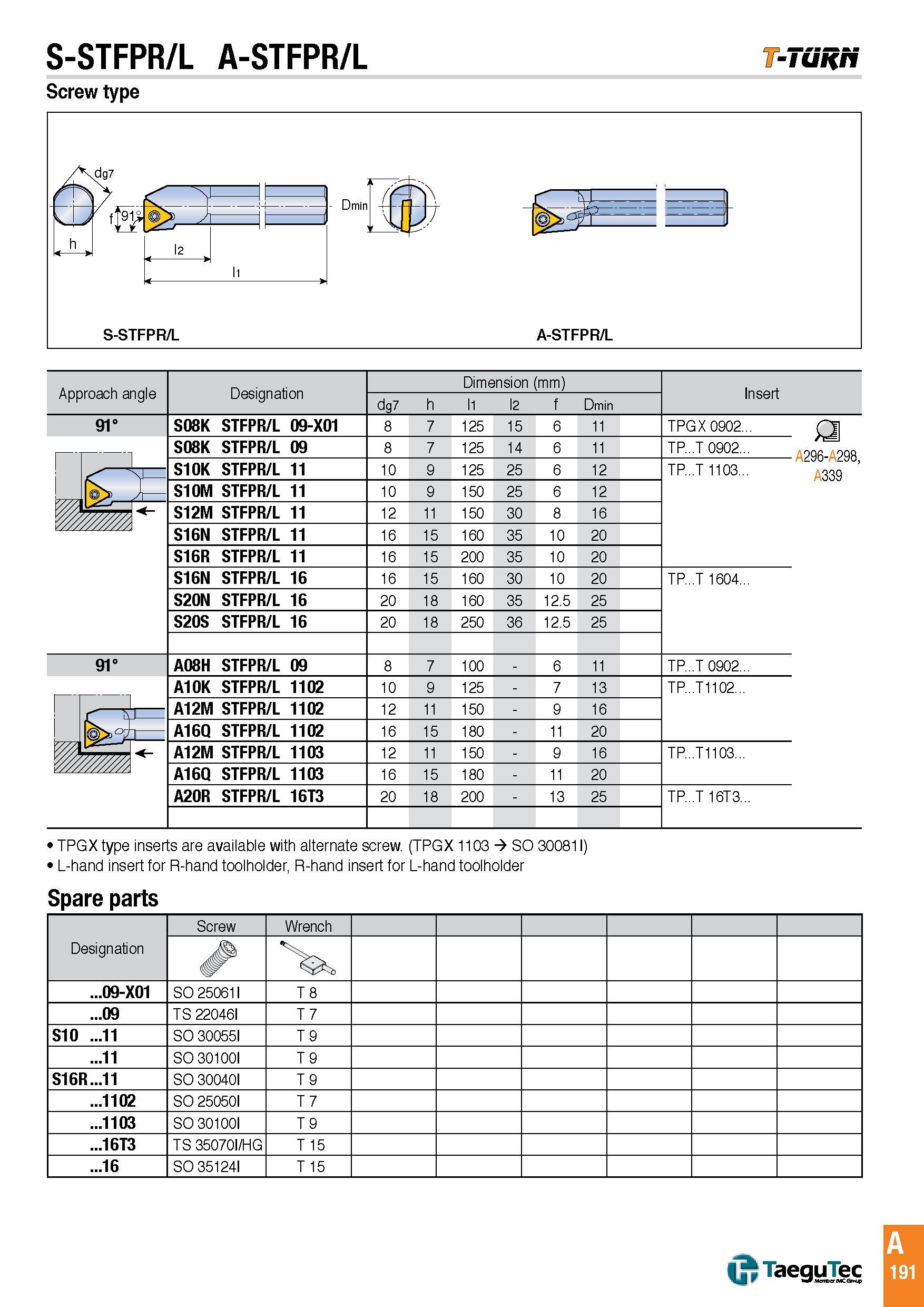

S-STFPR/L A-STFPR/L -Tunri Screw type Approach angle Designation Dimension (mm) Insert dg7 h l1 l2 f Dmin 91° S08K STFPR/L 09-X01 8 7 125 15 6 11 TPGX 0902 £T v- S08K STFPR/L 09 8 7 125 14 6 11 S10K STFPR/L 11 10 9 125 25 6 12 TR..T 1103 339 ’ S10M STFPR/L 11 10 9 150 25 6 12 k// S12M STFPR/L 11 12 11 150 30 8 16 S16N STFPR/L 11 16 15 160 35 10 20 S16R STFPR/L 11 16 15 200 35 10 20 S16N STFPR/L 16 16 15 160 30 10 20 TP...T 1604 S20N STFPR/L 16 20 18 160 35 12.5 25 S20S STFPR/L 16 20 18 250 36 12.5 25 91° A08H STFPR/L 09 8 7 100 - 6 11 TP...T 0902 A10K STFPR/L 1102 10 9 125 - 7 13 TP...T1102 A12M STFPR/L 1102 12 11 150 - 9 16 II A16Q STFPR/L 1102 16 15 180 - 11 20 VV// 77777771 A12M STFPR/L 1103 12 11 150 - 9 16 TP...T1103 //////////// A16Q STFPR/L 1103 16 15 180 - 11 20 A20R STFPR/L 16T3 20 18 200 - 13 25 TP...T 16T3 TPGX type inserts are available with alternate screw. (TPGX 1103 SO 30081I) L-hand insert for R-hand toolholder, R-hand insert for L-hand toolholder Spare parts
