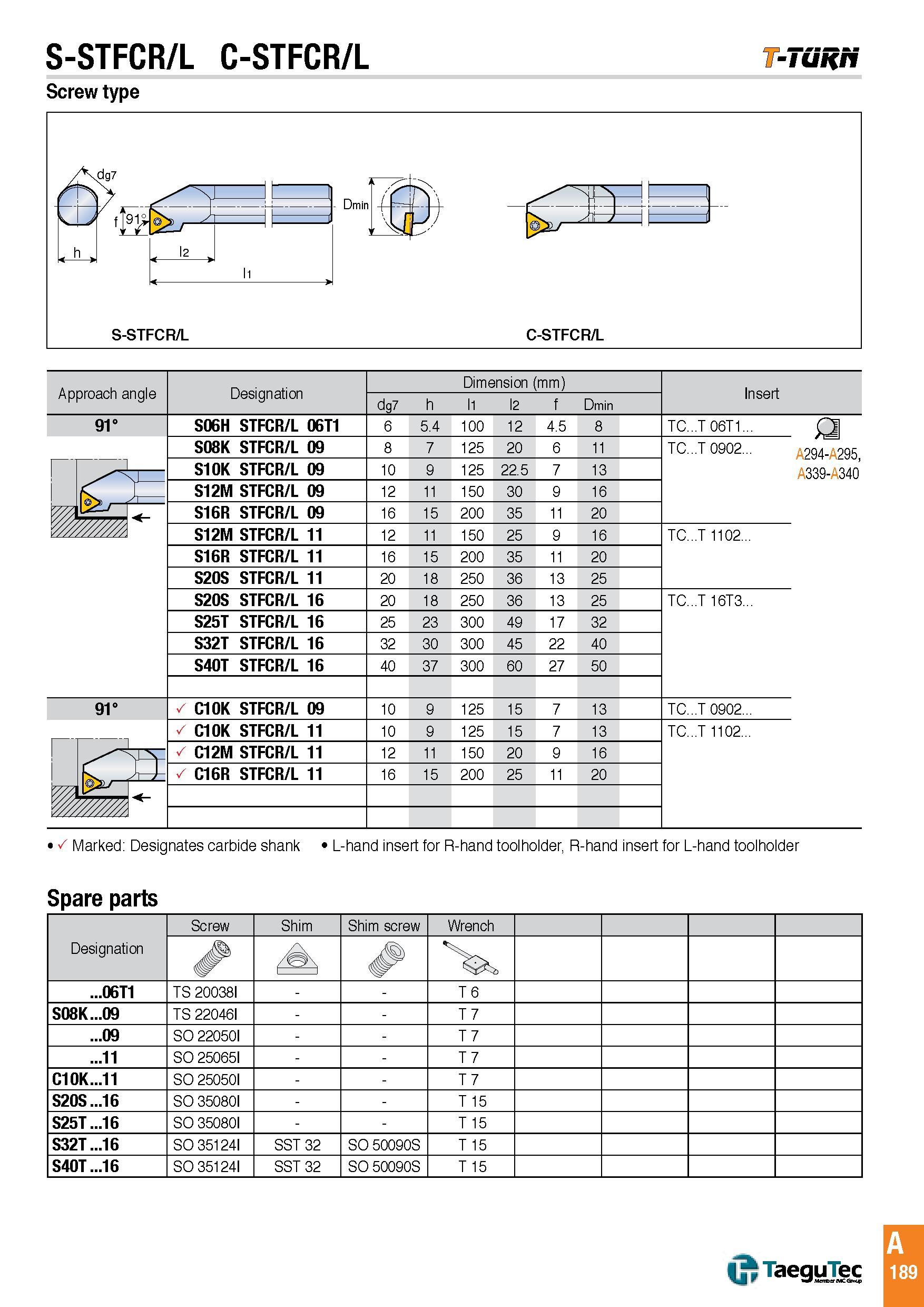

192 Каталог TAEGUTEC 2016 Инструмент для токарных станков Резцы Державки Пластины Сверла Стр.A189

Каталог TAEGUTEC 2016 Инструмент токарный Стр. A189 0192 ENG Lab2u

S-STFCR/L C-STFCR/L Screw type -Tunri Approach angle Designation Dimension (mm) Insert dg7 h l1 l2 f Dmin 91° S06H STFCR/L 06T1 6 5.4 100 12 4.5 8 TC...T 06T1 g S08K STFCR/L 09 8 7 125 20 6 11 TC...T 0902 A294-A295, A339-A340 S' S10K STFCR/L 09 10 9 125 22.5 7 13 S12M STFCR/L 09 12 11 150 30 9 16 g>j S16R STFCR/L 09 16 15 200 35 11 20 v///////////y S12M STFCR/L 11 12 11 150 25 9 16 TC...T 1102 S16R STFCR/L 11 16 15 200 35 11 20 S20S STFCR/L 11 20 18 250 36 13 25 S20S STFCR/L 16 20 18 250 36 13 25 TC...T 16T3 S25T STFCR/L 16 25 23 300 49 17 32 S32T STFCR/L 16 32 30 300 45 22 40 S40T STFCR/L 16 40 37 300 60 27 50 91° / C10K STFCR/L 09 10 9 125 15 7 13 TC...T 0902 'fV / C10K STFCR/L 11 10 9 125 15 7 13 TC...T 1102 / C12M STFCR/L 11 12 11 150 20 9 16 JrT / C16R STFCR/L 11 16 15 200 25 11 20 / Marked Designates carbide shank L-hand insert for R-hand toolholder, R-hand insert for L-hand toolholder Spare parts
