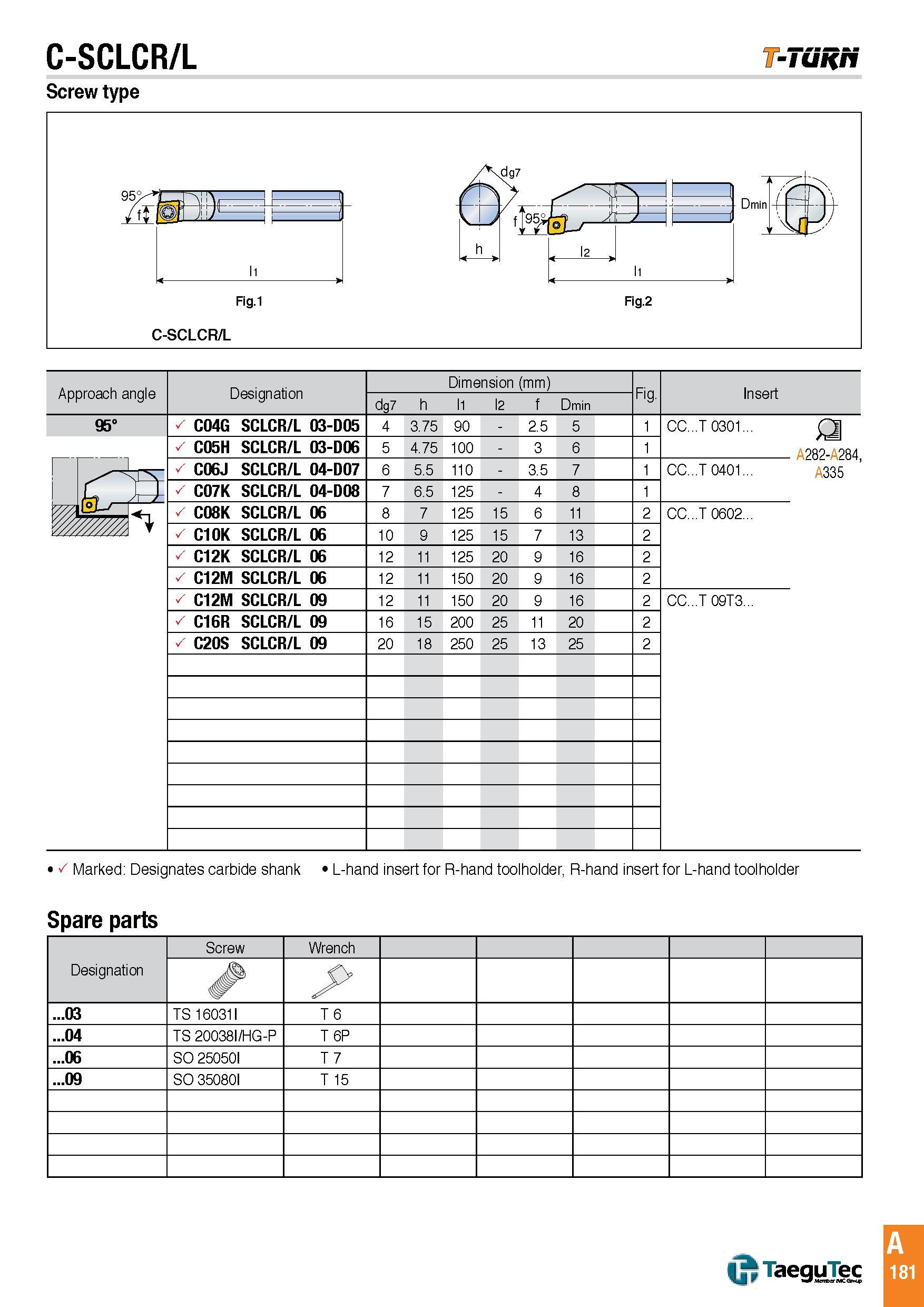

C-SCLCR/L -Tunri Screw type Approach angle Designation dg7 h Dimension (mm) l1 l2 f Dmin Fig. Insert 95° C04G SCLCR/L 03-D05 4 3.75 90 - 2.5 5 1 CC...T 0301 £J 282- 284 C05H SCLCR/L 03-D06 5 4.75 100 - 3 6 1 C06J SCLCR/L 04-D07 6 5.5 110 - 3.5 7 1 CC...T 0401 A335 u C07K SCLCR/L 04-D08 7 6.5 125 - 4 8 1 (o£_y T C08K SCLCR/L 06 8 7 125 15 6 11 2 CC...T 0602 V//////////Z C10K SCLCR/L 06 10 9 125 15 7 13 2 C12K SCLCR/L 06 12 11 125 20 9 16 2 C12M SCLCR/L 06 12 11 150 20 9 16 2 C12M SCLCR/L 09 12 11 150 20 9 16 2 CC...T 09T3 C16R SCLCR/L 09 16 15 200 25 11 20 2 C20S SCLCR/L 09 20 18 250 25 13 25 2 / Marked Designates carbide shank L-hand insert for R-hand toolholder, R-hand insert for L-hand toolholder Spare parts
