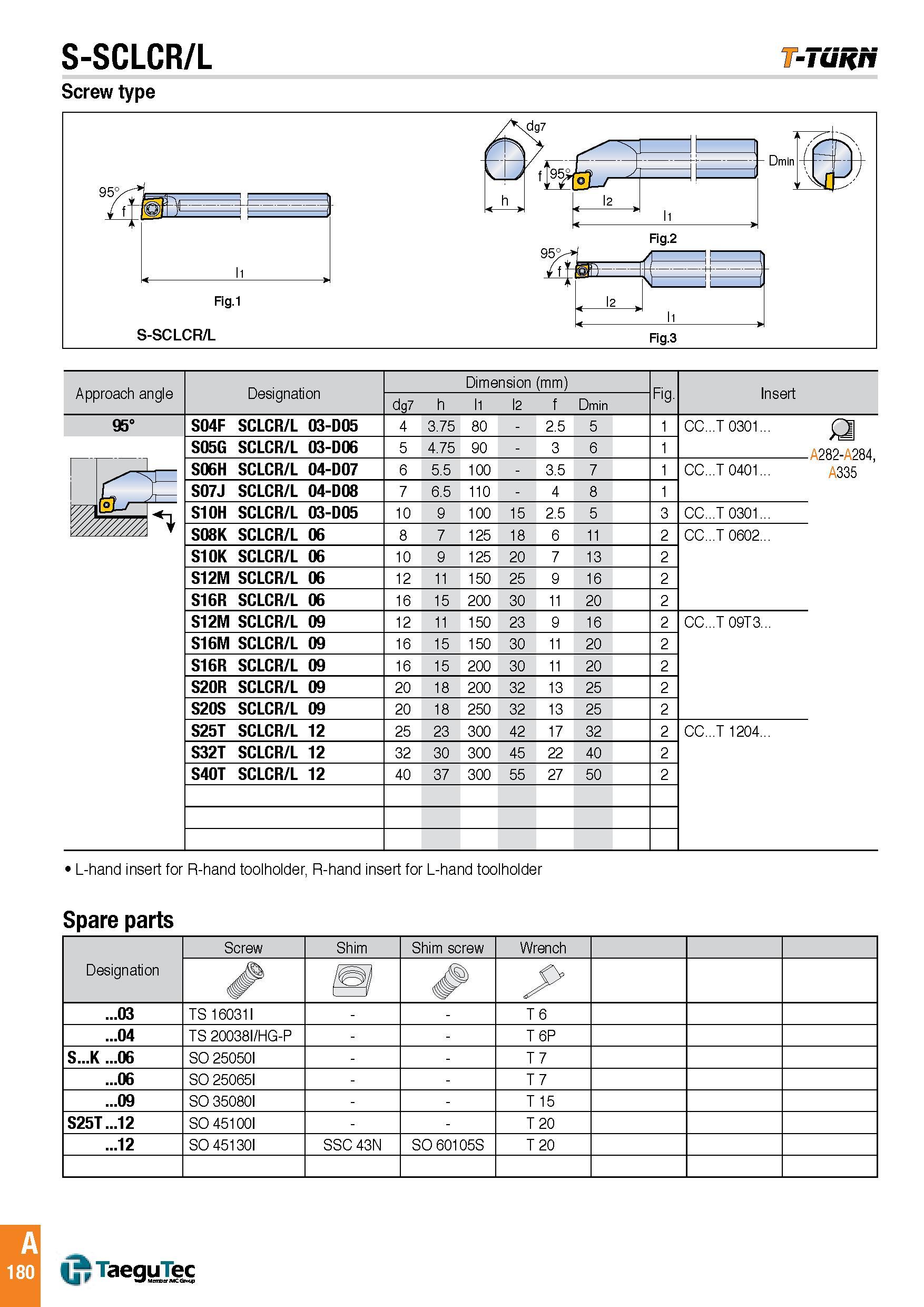

S-SCLCR/L -Tuh/t Screw type Approach angle Designation dg7 h Dimension (mm) l1 l2 f Dmin Fig. Insert 95° S04F SCLCR/L 03-D05 4 3.75 80 - 2.5 5 1 CC...T 0301 £2 A282- 284 S05G SCLCR/L 03-D06 5 4.75 90 - 3 6 1 S06H SCLCR/L 04-D07 6 5.5 100 - 3.5 7 1 CC...T 0401 A335 C, S07J SCLCR/L 04-D08 7 6.5 110 - 4 8 1 S10H SCLCR/L 03-D05 10 9 100 15 2.5 5 3 CC...T 0301 V/////////A V S08K SCLCR/L 06 8 7 125 18 6 11 2 CC...T 0602 S10K SCLCR/L 06 10 9 125 20 7 13 2 S12M SCLCR/L 06 12 11 150 25 9 16 2 S16R SCLCR/L 06 16 15 200 30 11 20 2 S12M SCLCR/L 09 12 11 150 23 9 16 2 CC...T 09T3 S16M SCLCR/L 09 16 15 150 30 11 20 2 S16R SCLCR/L 09 16 15 200 30 11 20 2 S20R SCLCR/L 09 20 18 200 32 13 25 2 S20S SCLCR/L 09 20 18 250 32 13 25 2 S25T SCLCR/L 12 25 23 300 42 17 32 2 CC...T 1204 S32T SCLCR/L 12 32 30 300 45 22 40 2 S40T SCLCR/L 12 40 37 300 55 27 50 2 L-hand insert for R-hand toolholder, R-hand insert for L-hand toolholder Spare parts
