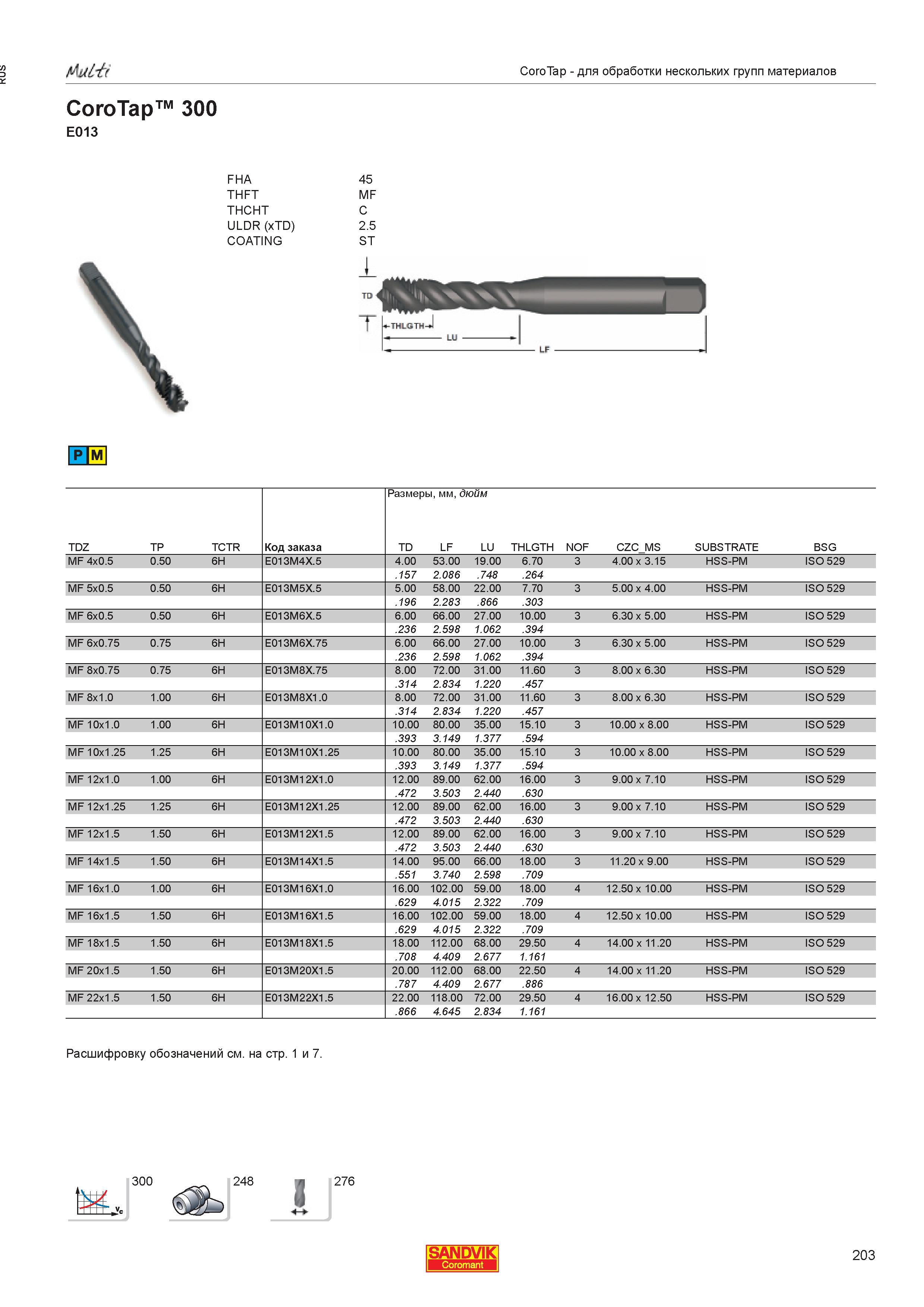

205 Каталог SANDVIK COROMANT 2013 Метчики и оснастка для резьбонарезания Стр.203

Каталог SANDVIK COROMANT 2013 Метчики Стр. 203 0205 Lab2u

CoroTap для обработки нескольких групп материалов CoroTap 300 E013 FHA THFT THCHT ULDR (xTD) COATING TDZ TP TCTR Код заказа Размеры мм дюйм TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG MF 4x0.5 0.50 6H E013M4X.5 4.00 53.00 19.00 6.70 3 4.00 x 3.15 HSS-PM ISO 529 .157 2.086 .748 .264 MF 5x0.5 0.50 6H E013M5X.5 5.00 58.00 22.00 7.70 3 5.00 x 4.00 HSS-PM ISO 529 .196 2.283 .866 .303 MF 6x0.5 0.50 6H E013M6X.5 6.00 66.00 27.00 10.00 3 6.30 x 5.00 HSS-PM ISO 529 .236 2.598 1.062 .394 MF 6x0.75 0.75 6H E013M6X.75 6.00 66.00 27.00 10.00 3 6.30 x 5.00 HSS-PM ISO 529 .236 2.598 1.062 .394 MF 8x0.75 0.75 6H E013M8X.75 8.00 72.00 31.00 11.60 3 8.00 x 6.30 HSS-PM ISO 529 .314 2.834 1.220 .457 MF 8x1.0 1.00 6H E013M8X1.0 8.00 72.00 31.00 11.60 3 8.00 x 6.30 HSS-PM ISO 529 .314 2.834 1.220 .457 MF 10x1.0 1.00 6H E013M10X1.0 10.00 80.00 35.00 15.10 3 10.00 x 8.00 HSS-PM ISO 529 .393 3.149 1.377 .594 MF 10x1.25 1.25 6H E013M10X1.25 10.00 80.00 35.00 15.10 3 10.00 x 8.00 HSS-PM ISO 529 .393 3.149 1.377 .594 MF 12x1.0 1.00 6H E013M12X1.0 12.00 89.00 62.00 16.00 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.440 .630 MF 12x1.25 1.25 6H E013M12X1.25 12.00 89.00 62.00 16.00 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.440 .630 MF 12x1.5 1.50 6H E013M12X1.5 12.00 89.00 62.00 16.00 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.440 .630 MF 14x1.5 1.50 6H E013M14X1.5 14.00 95.00 66.00 18.00 3 11.20 x 9.00 HSS-PM ISO 529 .551 3.740 2.598 .709 MF 16x1.0 1.00 6H E013M16X1.0 16.00 102.00 59.00 18.00 4 12.50 x 10.00 HSS-PM ISO 529 .629 4.015 2.322 .709 MF 16x1.5 1.50 6H E013M16X1.5 16.00 102.00 59.00 18.00 4 12.50 x 10.00 HSS-PM ISO 529 .629 4.015 2.322 .709 MF 18x1.5 1.50 6H E013M18X1.5 18.00 112.00 68.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .708 4.409 2.677 1.161 MF 20x1.5 1.50 6H E013M20X1.5 20.00 112.00 68.00 22.50 4 14.00 x 11.20 HSS-PM ISO 529 .787 4.409 2.677 .886 MF 22x1.5 1.50 6H E013M22X1.5 22.00 118.00 72.00 29.50 4 16.00 x 12.50 HSS-PM ISO 529 .866 4.645 2.834 1.161 Расшифровку обозначений см. на стр. 1 и 7. SANDVIK Coromant 203
