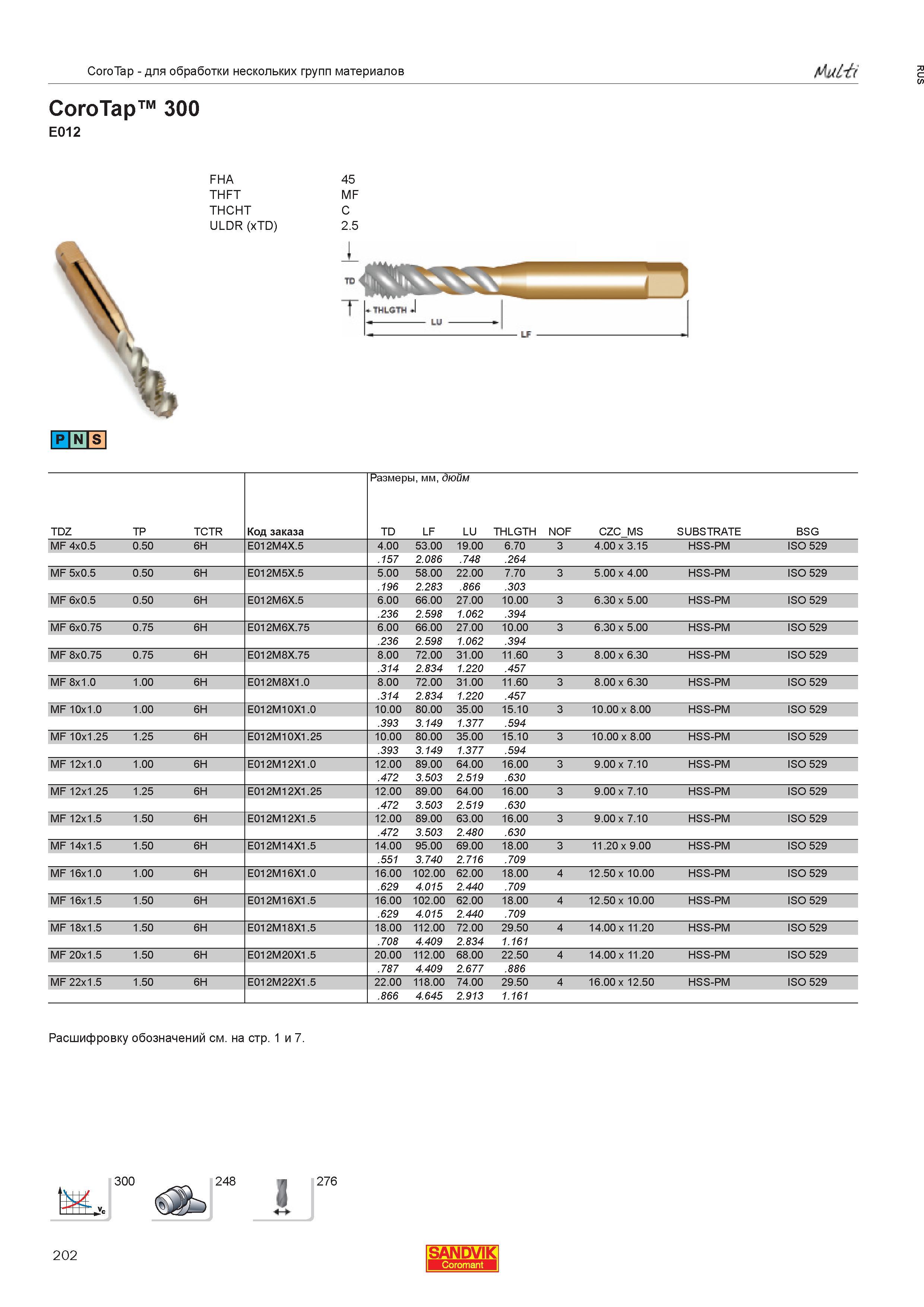

CoroTap для обработки нескольких групп материалов Multi CoroTap 300 E012 FHA THFT THCHT ULDR (xTD) 45 MF C 2.5 Размеры мм дюйм TDZ TP TCTR Код заказа TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG MF 4x0.5 0.50 6H E012M4X.5 4.00 53.00 19.00 6.70 3 4.00 x 3.15 HSS-PM ISO 529 .157 2.086 .748 .264 MF 5x0.5 0.50 6H E012M5X.5 5.00 58.00 22.00 7.70 3 5.00 x 4.00 HSS-PM ISO 529 .196 2.283 .866 .303 MF 6x0.5 0.50 6H E012M6X.5 6.00 66.00 27.00 10.00 3 6.30 x 5.00 HSS-PM ISO 529 .236 2.598 1.062 .394 MF 6x0.75 0.75 6H E012M6X.75 6.00 66.00 27.00 10.00 3 6.30 x 5.00 HSS-PM ISO 529 .236 2.598 1.062 .394 MF 8x0.75 0.75 6H E012M8X.75 8.00 72.00 31.00 11.60 3 8.00 x 6.30 HSS-PM ISO 529 .314 2.834 1.220 .457 MF 8x1.0 1.00 6H E012M8X1.0 8.00 72.00 31.00 11.60 3 8.00 x 6.30 HSS-PM ISO 529 .314 2.834 1.220 .457 MF 10x1.0 1.00 6H E012M10X1.0 10.00 80.00 35.00 15.10 3 10.00 x 8.00 HSS-PM ISO 529 .393 3.149 1.377 .594 MF 10x1.25 1.25 6H E012M10X1.25 10.00 80.00 35.00 15.10 3 10.00 x 8.00 HSS-PM ISO 529 .393 3.149 1.377 .594 MF 12x1.0 1.00 6H E012M12X1.0 12.00 89.00 64.00 16.00 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.519 .630 MF 12x1.25 1.25 6H E012M12X1.25 12.00 89.00 64.00 16.00 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.519 .630 MF 12x1.5 1.50 6H E012M12X1.5 12.00 89.00 63.00 16.00 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.480 .630 MF 14x1.5 1.50 6H E012M14X1.5 14.00 95.00 69.00 18.00 3 11.20 x 9.00 HSS-PM ISO 529 .551 3.740 2.716 .709 MF 16x1.0 1.00 6H E012M16X1.0 16.00 102.00 62.00 18.00 4 12.50 x 10.00 HSS-PM ISO 529 .629 4.015 2.440 .709 MF 16x1.5 1.50 6H E012M16X1.5 16.00 102.00 62.00 18.00 4 12.50 x 10.00 HSS-PM ISO 529 .629 4.015 2.440 .709 MF 18x1.5 1.50 6H E012M18X1.5 18.00 112.00 72.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .708 4.409 2.834 1.161 MF 20x1.5 1.50 6H E012M20X1.5 20.00 112.00 68.00 22.50 4 14.00 x 11.20 HSS-PM ISO 529 .787 4.409 2.677 .886 MF 22x1.5 1.50 6H E012M22X1.5 22.00 118.00 74.00 29.50 4 16.00 x 12.50 HSS-PM ISO 529 .866 4.645 2.913 1.161 Расшифровку обозначений см. на стр. 1 и 7. SANDVIK Coromant
