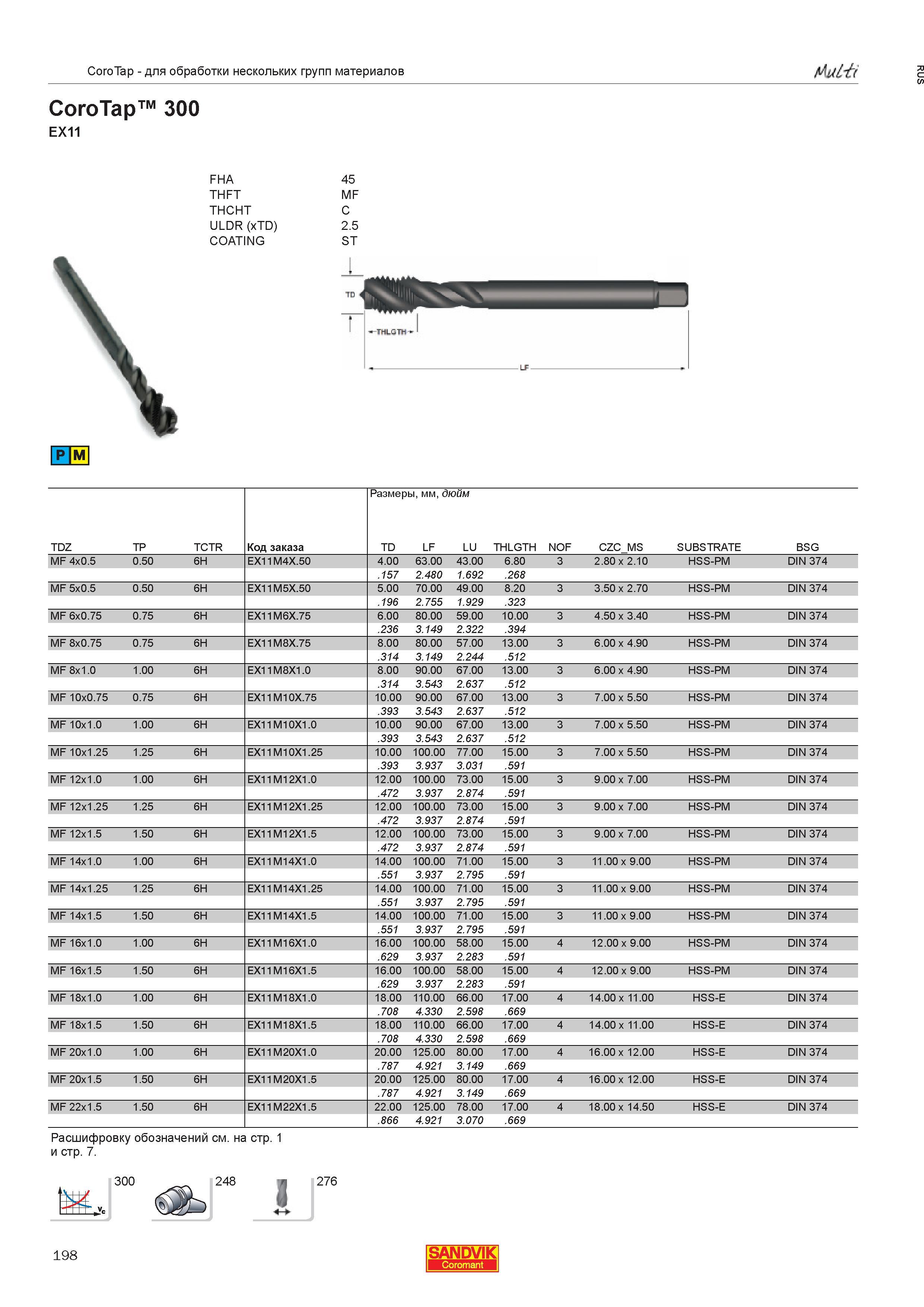

200 Каталог SANDVIK COROMANT 2013 Метчики и оснастка для резьбонарезания Стр.198

Каталог SANDVIK COROMANT 2013 Метчики Стр. 198 0200 Lab2u

CoroTap для обработки нескольких групп материалов CoroTap 300 EX11 FHA THFT THCHT ULDR (xTD) COATING TDZ TP TCTR Код заказа Размеры мм дюйм TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG MF 4x0.5 0.50 6H EX11M4X.50 4.00 63.00 43.00 6.80 3 2.80 x 2.10 HSS-PM DIN 374 .157 2.480 1.692 .268 MF 5x0.5 0.50 6H EX11M5X.50 5.00 70.00 49.00 8.20 3 3.50 x 2.70 HSS-PM DIN 374 .196 2.755 1.929 .323 MF 6x0.75 0.75 6H EX11M6X.75 6.00 80.00 59.00 10.00 3 4.50 x 3.40 HSS-PM DIN 374 .236 3.149 2.322 .394 MF 8x0.75 0.75 6H EX11M8X.75 8.00 80.00 57.00 13.00 3 6.00 x 4.90 HSS-PM DIN 374 .314 3.149 2.244 .512 MF 8x1.0 1.00 6H EX11M8X1.0 8.00 90.00 67.00 13.00 3 6.00 x 4.90 HSS-PM DIN 374 .314 3.543 2.637 .512 MF 10x0.75 0.75 6H EX11 M10X.75 10.00 90.00 67.00 13.00 3 7.00 x 5.50 HSS-PM DIN 374 .393 3.543 2.637 .512 MF 10x1.0 1.00 6H EX11M10X1.0 10.00 90.00 67.00 13.00 3 7.00 x 5.50 HSS-PM DIN 374 .393 3.543 2.637 .512 MF 10x1.25 1.25 6H EX11 M10X1.25 10.00 100.00 77.00 15.00 3 7.00 x 5.50 HSS-PM DIN 374 .393 3.937 3.031 .591 MF 12x1.0 1.00 6H EX11M12X1.0 12.00 100.00 73.00 15.00 3 9.00 x 7.00 HSS-PM DIN 374 .472 3.937 2.874 .591 MF 12x1.25 1.25 6H EX11M12X1.25 12.00 100.00 73.00 15.00 3 9.00 x 7.00 HSS-PM DIN 374 .472 3.937 2.874 .591 MF 12x1.5 1.50 6H EX11M12X1.5 12.00 100.00 73.00 15.00 3 9.00 x 7.00 HSS-PM DIN 374 .472 3.937 2.874 .591 MF 14x1.0 1.00 6H EX11M14X1.0 14.00 100.00 71.00 15.00 3 11.00 x 9.00 HSS-PM DIN 374 .551 3.937 2.795 .591 MF 14x1.25 1.25 6H EX11 M14X1.25 14.00 100.00 71.00 15.00 3 11.00 x 9.00 HSS-PM DIN 374 .551 3.937 2.795 .591 MF 14x1.5 1.50 6H EX11M14X1.5 14.00 100.00 71.00 15.00 3 11.00 x 9.00 HSS-PM DIN 374 .551 3.937 2.795 .591 MF 16x1.0 1.00 6H EX11M16X1.0 16.00 100.00 58.00 15.00 4 12.00 x 9.00 HSS-PM DIN 374 .629 3.937 2.283 .591 MF 16x1.5 1.50 6H EX11M16X1.5 16.00 100.00 58.00 15.00 4 12.00 x 9.00 HSS-PM DIN 374 .629 3.937 2.283 .591 MF 18x1.0 1.00 6H EX11M18X1.0 18.00 110.00 66.00 17.00 4 14.00 x 11.00 HSS-E DIN 374 .708 4.330 2.598 .669 MF 18x1.5 1.50 6H EX11M18X1.5 18.00 110.00 66.00 17.00 4 14.00 x 11.00 HSS-E DIN 374 .708 4.330 2.598 .669 MF 20x1.0 1.00 6H EX11M20X1.0 20.00 125.00 80.00 17.00 4 16.00 x 12.00 HSS-E DIN 374 .787 4.921 3.149 .669 MF 20x1.5 1.50 6H EX11M20X1.5 20.00 125.00 80.00 17.00 4 16.00 x 12.00 HSS-E DIN 374 .787 4.921 3.149 .669 MF 22x1.5 1.50 6H EX11M22X1.5 22.00 125.00 78.00 17.00 4 18.00 x 14.50 HSS-E DIN 374 .866 4.921 3.070 .669 Расшифровку обозначений см. на стр. 1 и стр. 7. SANDVIK Coromant
