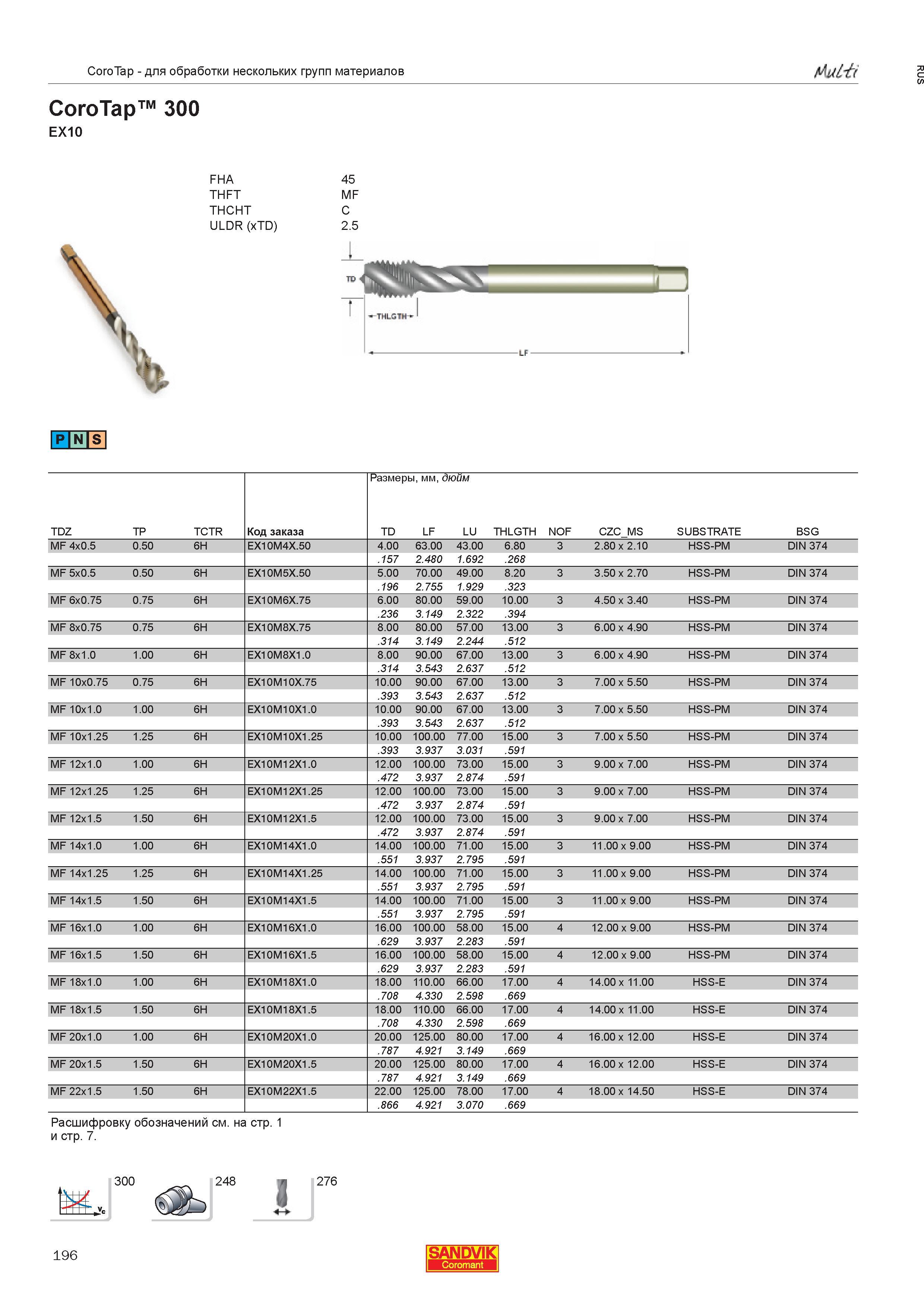

CoroTap для обработки нескольких групп материалов Multi CoroTap 300 EX10 FHA 45 THFT MF THCHT C ULDR (xTD) 2.5 Размеры мм дюйм TDZ TP TCTR Код заказа TD LF LU THLGTH NOF CZC MS SUBSTRATE BSG MF 4x0.5 0.50 6H EX10M4X.50 4.00 63.00 43.00 6.80 3 2.80 x 2.10 HSS-PM DIN 374 .157 2.480 1.692 .268 MF 5x0.5 0.50 6H EX10M5X.50 5.00 70.00 49.00 8.20 3 3.50 x 2.70 HSS-PM DIN 374 .196 2.755 1.929 .323 MF 6x0.75 0.75 6H EX10M6X.75 6.00 80.00 59.00 10.00 3 4.50 x 3.40 HSS-PM DIN 374 .236 3.149 2.322 .394 MF 8x0.75 0.75 6H EX10M8X.75 8.00 80.00 57.00 13.00 3 6.00 x 4.90 HSS-PM DIN 374 .314 3.149 2.244 .512 MF 8x1.0 1.00 6H EX10M8X1.0 8.00 90.00 67.00 13.00 3 6.00 x 4.90 HSS-PM DIN 374 .314 3.543 2.637 .512 MF 10x0.75 0.75 6H EX10M10X.75 10.00 90.00 67.00 13.00 3 7.00 x 5.50 HSS-PM DIN 374 .393 3.543 2.637 .512 MF 10x1.0 1.00 6H EX10M10X1.0 10.00 90.00 67.00 13.00 3 7.00 x 5.50 HSS-PM DIN 374 .393 3.543 2.637 .512 MF 10x1.25 1.25 6H EX10M10X1.25 10.00 100.00 77.00 15.00 3 7.00 x 5.50 HSS-PM DIN 374 .393 3.937 3.031 .591 MF 12x1.0 1.00 6H EX10M12X1.0 12.00 100.00 73.00 15.00 3 9.00 x 7.00 HSS-PM DIN 374 .472 3.937 2.874 .591 MF 12x1.25 1.25 6H EX10M12X1.25 12.00 100.00 73.00 15.00 3 9.00 x 7.00 HSS-PM DIN 374 .472 3.937 2.874 .591 MF 12x1.5 1.50 6H EX10M12X1.5 12.00 100.00 73.00 15.00 3 9.00 x 7.00 HSS-PM DIN 374 .472 3.937 2.874 .591 MF 14x1.0 1.00 6H EX10M14X1.0 14.00 100.00 71.00 15.00 3 11.00 x 9.00 HSS-PM DIN 374 .551 3.937 2.795 .591 MF 14x1.25 1.25 6H EX10M14X1.25 14.00 100.00 71.00 15.00 3 11.00 x 9.00 HSS-PM DIN 374 .551 3.937 2.795 .591 MF 14x1.5 1.50 6H EX10M14X1.5 14.00 100.00 71.00 15.00 3 11.00 x 9.00 HSS-PM DIN 374 .551 3.937 2.795 .591 MF 16x1.0 1.00 6H EX10M16X1.0 16.00 100.00 58.00 15.00 4 12.00 x 9.00 HSS-PM DIN 374 .629 3.937 2.283 .591 MF 16x1.5 1.50 6H EX10M16X1.5 16.00 100.00 58.00 15.00 4 12.00 x 9.00 HSS-PM DIN 374 .629 3.937 2.283 .591 MF 18x1.0 1.00 6H EX10M18X1.0 18.00 110.00 66.00 17.00 4 14.00 x 11.00 HSS-E DIN 374 .708 4.330 2.598 .669 MF 18x1.5 1.50 6H EX10M18X1.5 18.00 110.00 66.00 17.00 4 14.00 x 11.00 HSS-E DIN 374 .708 4.330 2.598 .669 MF 20x1.0 1.00 6H EX10M20X1.0 20.00 125.00 80.00 17.00 4 16.00 x 12.00 HSS-E DIN 374 .787 4.921 3.149 .669 MF 20x1.5 1.50 6H EX10M20X1.5 20.00 125.00 80.00 17.00 4 16.00 x 12.00 HSS-E DIN 374 .787 4.921 3.149 .669 MF 22x1.5 1.50 6H EX10M22X1.5 22.00 125.00 78.00 17.00 4 18.00 x 14.50 HSS-E DIN 374 .866 4.921 3.070 .669 Расшифровку обозначений см. на стр. 1 и стр. 7. SANDVIK Coromant
