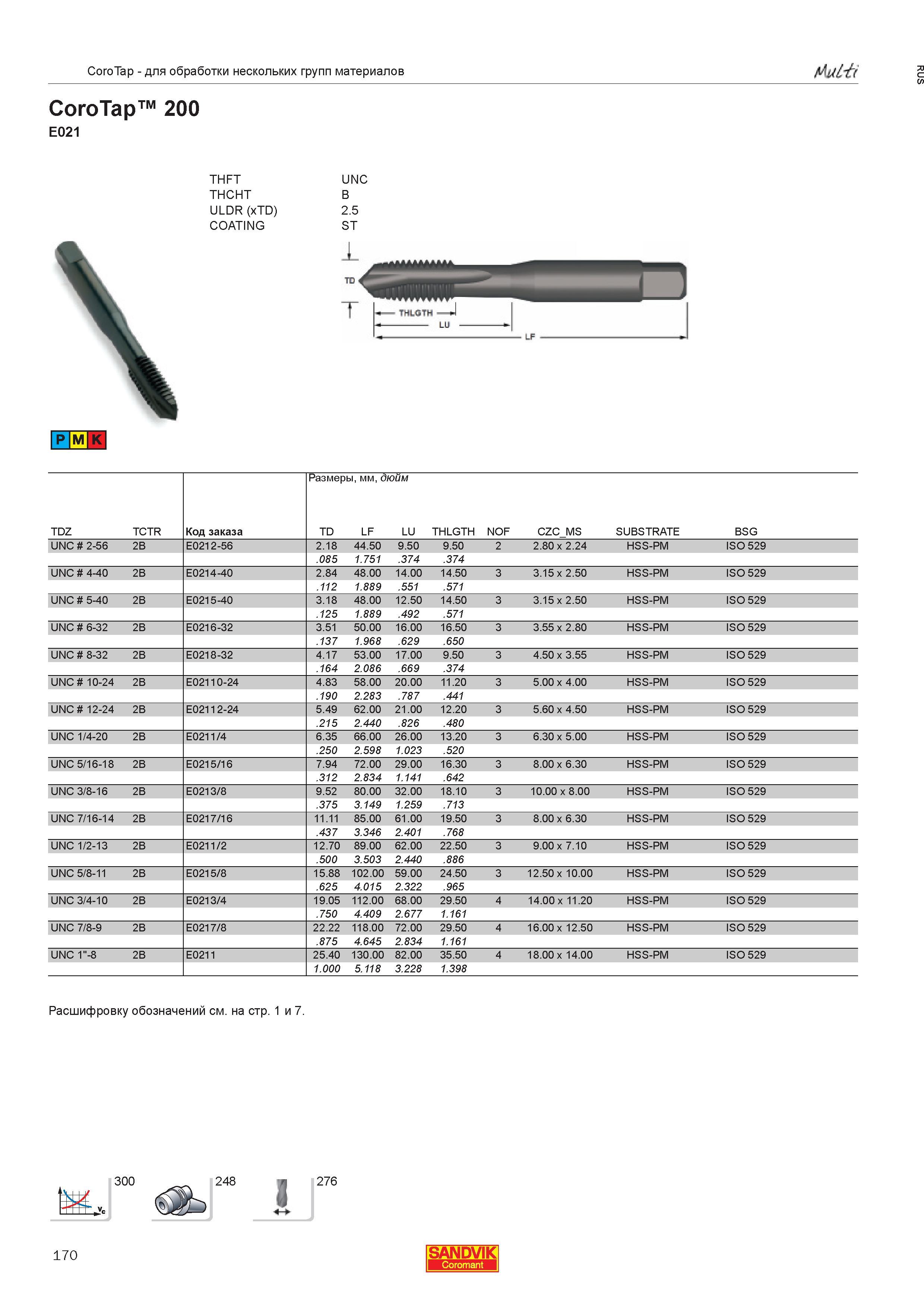

172 Каталог SANDVIK COROMANT 2013 Метчики и оснастка для резьбонарезания Стр.170

Каталог SANDVIK COROMANT 2013 Метчики Стр. 170 0172 Lab2u

CoroTap для обработки нескольких групп материалов Multi CoroTap 200 E021 THFT UNC THCHT B ULDR (xTD) 2.5 COATING ST Размеры мм дюйм TDZ TCTR Код заказа TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG UNC 2-56 2B E0212-56 2.18 44.50 9.50 9.50 2 2.80 x 2.24 HSS-PM ISO 529 .085 1.751 .374 .374 UNC 4-40 2B E0214-40 2.84 48.00 14.00 14.50 3 3.15 x 2.50 HSS-PM ISO 529 .112 1.889 .551 .571 UNC 5-40 2B E0215-40 3.18 48.00 12.50 14.50 3 3.15 x 2.50 HSS-PM ISO 529 .125 1.889 .492 .571 UNC 6-32 2B E0216-32 3.51 50.00 16.00 16.50 3 3.55 x 2.80 HSS-PM ISO 529 .137 1.968 .629 .650 UNC 8-32 2B E0218-32 4.17 53.00 17.00 9.50 3 4.50 x 3.55 HSS-PM ISO 529 .164 2.086 .669 .374 UNC 10-24 2B E02110-24 4.83 58.00 20.00 11.20 3 5.00 x 4.00 HSS-PM ISO 529 .190 2.283 .787 .441 UNC 12-24 2B E02112-24 5.49 62.00 21.00 12.20 3 5.60 x 4.50 HSS-PM ISO 529 .215 2.440 .826 .480 UNC 1 4-20 2B E0211 4 6.35 66.00 26.00 13.20 3 6.30 x 5.00 HSS-PM ISO 529 .250 2.598 1.023 .520 UNC 5 16-18 2B E0215 16 7.94 72.00 29.00 16.30 3 8.00 x 6.30 HSS-PM ISO 529 .312 2.834 1.141 .642 UNC 3 8-16 2B E0213 8 9.52 80.00 32.00 18.10 3 10.00 x 8.00 HSS-PM ISO 529 .375 3.149 1.259 .713 UNC 7 16-14 2B E0217 16 11.11 85.00 61.00 19.50 3 8.00 x 6.30 HSS-PM ISO 529 .437 3.346 2.401 .768 UNC 1 2-13 2B E0211 2 12.70 89.00 62.00 22.50 3 9.00 x 7.10 HSS-PM ISO 529 .500 3.503 2.440 .886 UNC 5 8-11 2B E0215 8 15.88 102.00 59.00 24.50 3 12.50 x 10.00 HSS-PM ISO 529 .625 4.015 2.322 .965 UNC 3 4-10 2B E0213 4 19.05 112.00 68.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .750 4.409 2.677 1.161 UNC 7 8-9 2B E0217 8 22.22 118.00 72.00 29.50 4 16.00 x 12.50 HSS-PM ISO 529 .875 4.645 2.834 1.161 UNC 1"-8 2B E0211 25.40 130.00 82.00 35.50 4 18.00 x 14.00 HSS-PM ISO 529 1.000 5.118 3.228 1.398 Расшифровку обозначений см. на стр. 1 и 7. SANDVIK Coromant
