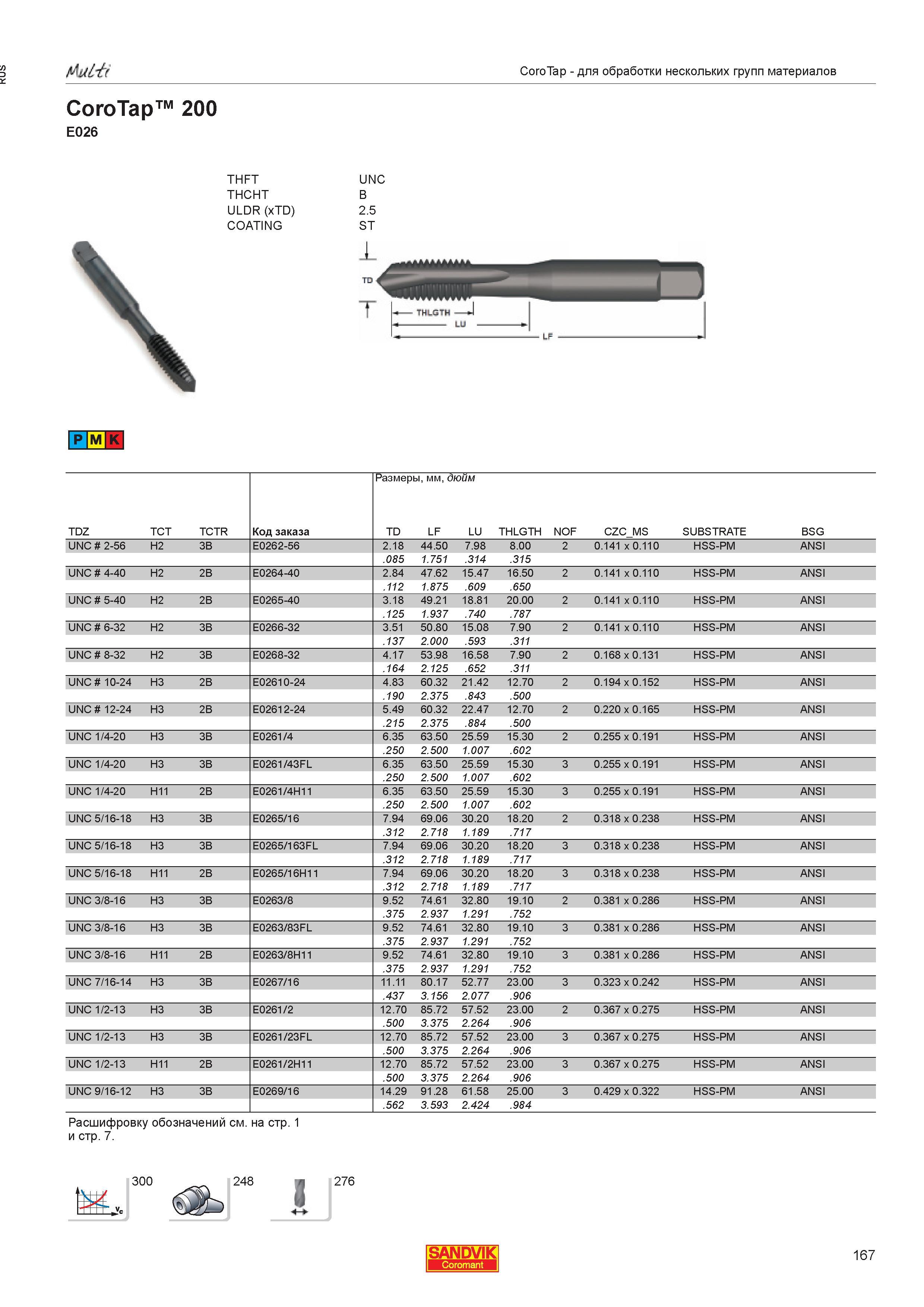

CoroTap для обработки нескольких групп материалов CoroTap 200 E026 THFT THCHT ULDR (xTD) COATING UNC B 2.5 ST PM К Размеры мм дюйм TDZ TCT TCTR Код заказа TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG UNC 2-56 H2 3B E0262-56 2.18 44.50 7.98 8.00 2 0.141 x 0.110 HSS-PM ANSI .085 1.751 .314 .315 UNC 4-40 H2 2B E0264-40 2.84 47.62 15.47 16.50 2 0.141 x 0.110 HSS-PM ANSI .112 1.875 .609 .650 UNC 5-40 H2 2B E0265-40 3.18 49.21 18.81 20.00 2 0.141 x 0.110 HSS-PM ANSI .125 1.937 .740 .787 UNC 6-32 H2 3B E0266-32 3.51 50.80 15.08 7.90 2 0.141 x 0.110 HSS-PM ANSI .137 2.000 .593 .311 UNC 8-32 H2 3B E0268-32 4.17 53.98 16.58 7.90 2 0.168 x 0.131 HSS-PM ANSI .164 2.125 .652 .311 UNC 10-24 H3 2B E02610-24 4.83 60.32 21.42 12.70 2 0.194 x 0.152 HSS-PM ANSI .190 2.375 .843 .500 UNC 12-24 H3 2B E02612-24 5.49 60.32 22.47 12.70 2 0.220 x 0.165 HSS-PM ANSI .215 2.375 .884 .500 UNC 1 4-20 H3 3B E0261 4 6.35 63.50 25.59 15.30 2 0.255 x 0.191 HSS-PM ANSI .250 2.500 1.007 .602 UNC 1 4-20 H3 3B E0261 43FL 6.35 63.50 25.59 15.30 3 0.255 x 0.191 HSS-PM ANSI .250 2.500 1.007 .602 UNC 1 4-20 H11 2B E0261 4H11 6.35 63.50 25.59 15.30 3 0.255 x 0.191 HSS-PM ANSI .250 2.500 1.007 .602 UNC 5 16-18 H3 3B E0265 16 7.94 69.06 30.20 18.20 2 0.318 x 0.238 HSS-PM ANSI .312 2.718 1.189 .717 UNC 5 16-18 H3 3B E0265 163FL 7.94 69.06 30.20 18.20 3 0.318 x 0.238 HSS-PM ANSI .312 2.718 1.189 .717 UNC 5 16-18 H11 2B E0265 16H11 7.94 69.06 30.20 18.20 3 0.318 x 0.238 HSS-PM ANSI .312 2.718 1.189 .717 UNC 3 8-16 H3 3B E0263 8 9.52 74.61 32.80 19.10 2 0.381 x 0.286 HSS-PM ANSI .375 2.937 1.291 .752 UNC 3 8-16 H3 3B E0263 83FL 9.52 74.61 32.80 19.10 3 0.381 x 0.286 HSS-PM ANSI .375 2.937 1.291 752 UNC 3 8-16 H11 2B E0263 8H11 9.52 74.61 32.80 19.10 3 0.381 x 0.286 HSS-PM ANSI .375 2.937 1.291 752 UNC 7 16-14 H3 3B E0267 16 11.11 80.17 52.77 23.00 3 0.323 x 0.242 HSS-PM ANSI .437 3.156 2.077 .906 UNC 1 2-13 H3 3B E0261 2 12.70 85.72 57.52 23.00 2 0.367 x 0.275 HSS-PM ANSI .500 3.375 2.264 .906 UNC 1 2-13 H3 3B E0261 23FL 12.70 85.72 57.52 23.00 3 0.367 x 0.275 HSS-PM ANSI .500 3.375 2.264 .906 UNC 1 2-13 H11 2B E0261 2H11 12.70 85.72 57.52 23.00 3 0.367 x 0.275 HSS-PM ANSI .500 3.375 2.264 .906 UNC 9 16-12 H3 3B E0269 16 14.29 91.28 61.58 25.00 3 0.429 x 0.322 HSS-PM ANSI .562 3.593 2.424 .984 Расшифровку обозначений см. на стр. 1 и стр. 7. SANDVIK Coromant 167
