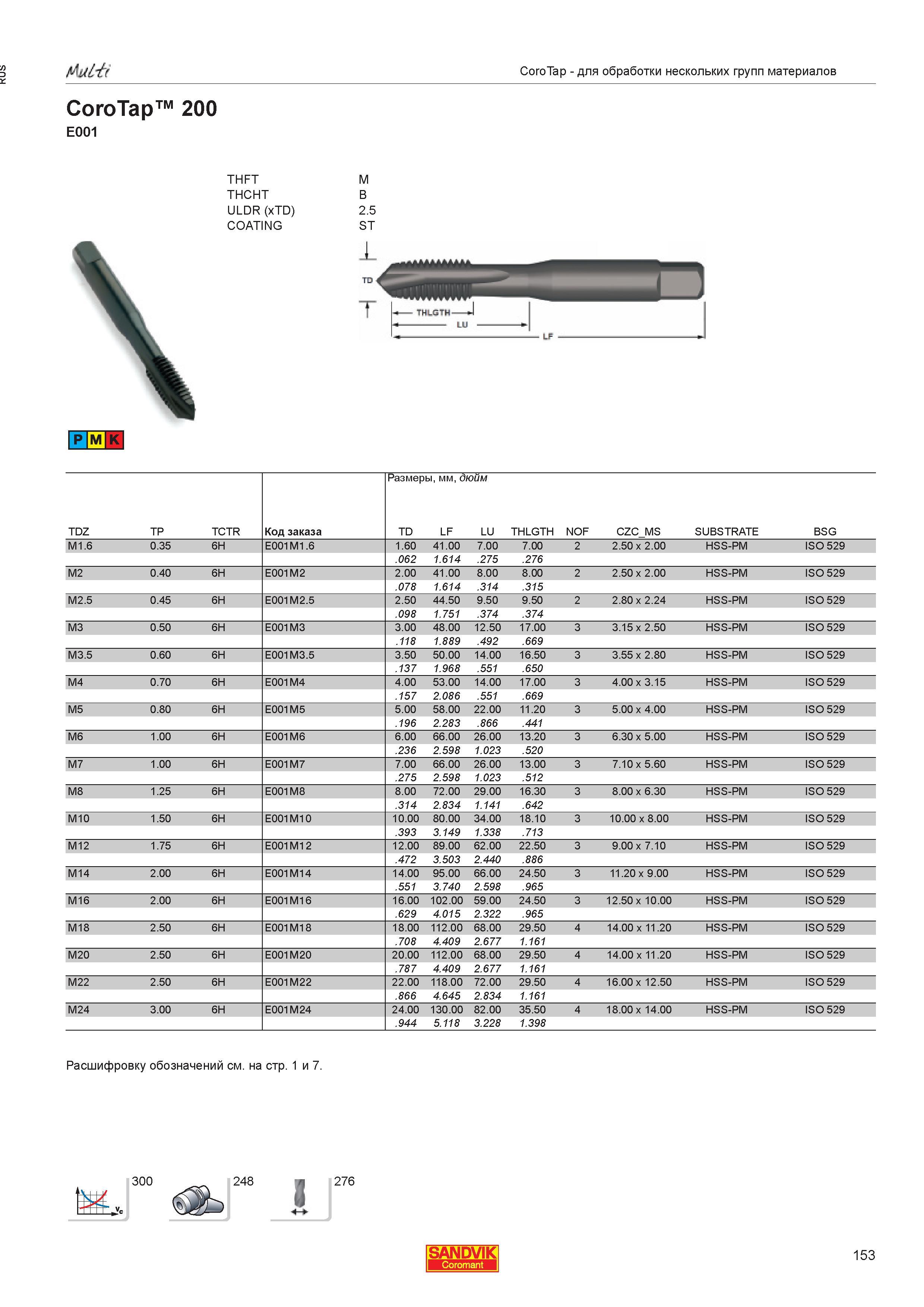

CoroTap для обработки нескольких групп материалов CoroTap 200 E001 THFT M THCHT B ULDR (xTD) 2.5 COATING ST F1 Размеры мм дюйм TDZ TP TCTR Код заказа TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG M1.6 0.35 6H E001M1.6 1.60 41.00 7.00 7.00 2 2.50 x 2.00 HSS-PM ISO 529 .062 1.614 .275 .276 M2 0.40 6H E001M2 2.00 41.00 8.00 8.00 2 2.50 x 2.00 HSS-PM ISO 529 .078 1.614 .314 .315 M2.5 0.45 6H E001M2.5 2.50 44.50 9.50 9.50 2 2.80 x 2.24 HSS-PM ISO 529 .098 1.751 .374 .374 M3 0.50 6H E001M3 3.00 48.00 12.50 17.00 3 3.15 x 2.50 HSS-PM ISO 529 .118 1.889 .492 .669 M3.5 0.60 6H E001M3.5 3.50 50.00 14.00 16.50 3 3.55 x 2.80 HSS-PM ISO 529 .137 1.968 .551 .650 M4 0.70 6H E001M4 4.00 53.00 14.00 17.00 3 4.00 x 3.15 HSS-PM ISO 529 .157 2.086 .551 .669 M5 0.80 6H E001M5 5.00 58.00 22.00 11.20 3 5.00 x 4.00 HSS-PM ISO 529 .196 2.283 .866 .441 M6 1.00 6H E001M6 6.00 66.00 26.00 13.20 3 6.30 x 5.00 HSS-PM ISO 529 .236 2.598 1.023 .520 M7 1.00 6H E001M7 7.00 66.00 26.00 13.00 3 7.10 x 5.60 HSS-PM ISO 529 .275 2.598 1.023 .512 M8 1.25 6H E001M8 8.00 72.00 29.00 16.30 3 8.00 x 6.30 HSS-PM ISO 529 .314 2.834 1.141 .642 M10 1.50 6H E001M10 10.00 80.00 34.00 18.10 3 10.00 x 8.00 HSS-PM ISO 529 .393 3.149 1.338 .713 M12 1.75 6H E001M12 12.00 89.00 62.00 22.50 3 9.00 x 7.10 HSS-PM ISO 529 .472 3.503 2.440 .886 M14 2.00 6H E001M14 14.00 95.00 66.00 24.50 3 11.20 x 9.00 HSS-PM ISO 529 .551 3.740 2.598 .965 M16 2.00 6H E001M16 16.00 102.00 59.00 24.50 3 12.50 x 10.00 HSS-PM ISO 529 .629 4.015 2.322 .965 M18 2.50 6H E001M18 18.00 112.00 68.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .708 4.409 2.677 1.161 M20 2.50 6H E001M20 20.00 112.00 68.00 29.50 4 14.00 x 11.20 HSS-PM ISO 529 .787 4.409 2.677 1.161 M22 2.50 6H E001M22 22.00 118.00 72.00 29.50 4 16.00 x 12.50 HSS-PM ISO 529 .866 4.645 2.834 1.161 M24 3.00 6H E001M24 24.00 130.00 82.00 35.50 4 18.00 x 14.00 HSS-PM ISO 529 .944 5.118 3.228 1.398 Расшифровку обозначений см. на стр. 1 и 7. SANDVIK Coromant 153
