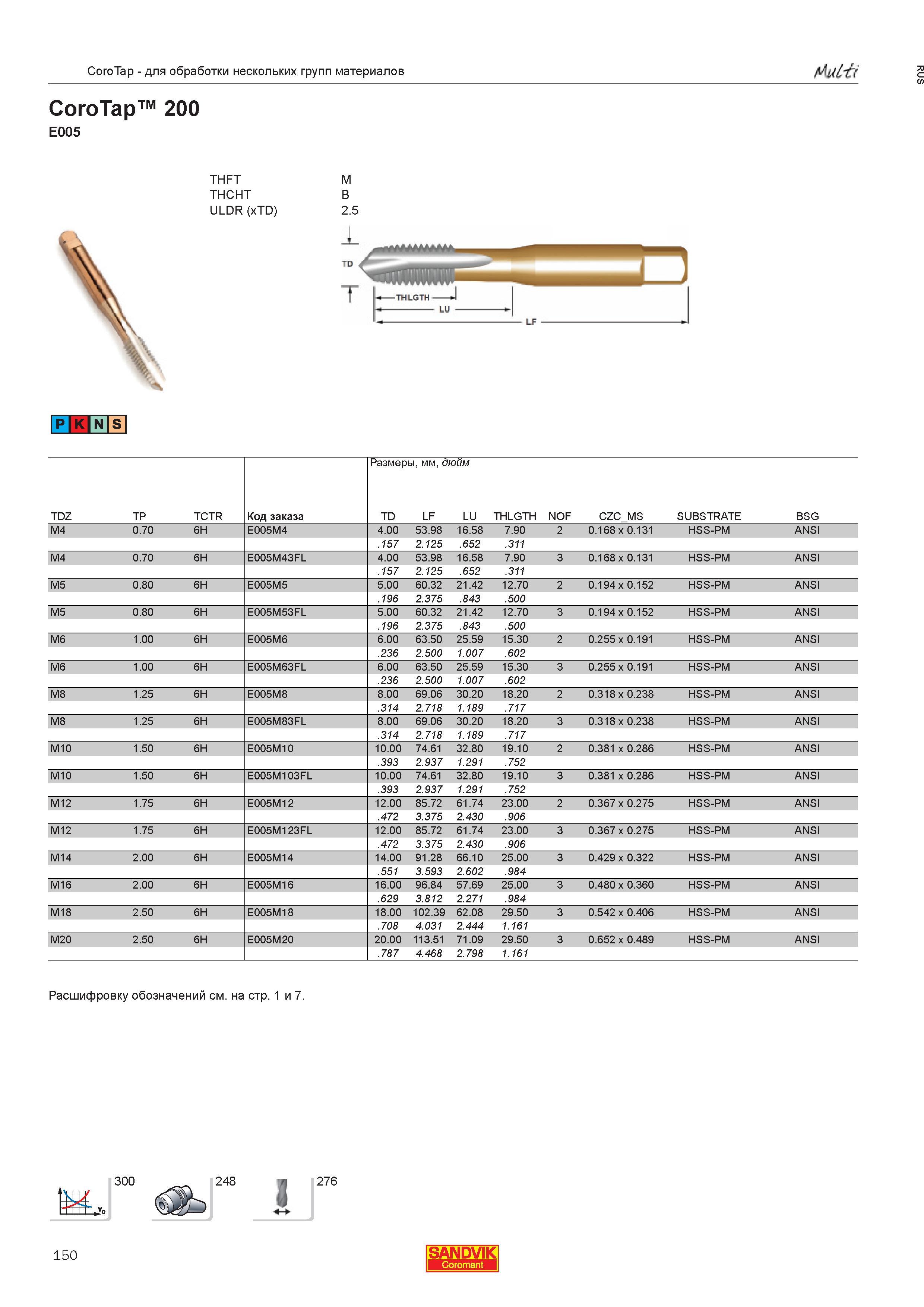

CoroTap для обработки нескольких групп материалов CoroTap 200 E005 THFT THCHT ULDR (xTD) M B 2.5 P K N S TDZ TP TCTR Код заказа Размеры мм дюйм TD LF LU THLGTH NOF CZCMS SUBSTRATE BSG M4 0.70 6H E005M4 4.00 53.98 16.58 7.90 2 0.168 x 0.131 HSS-PM ANSI .157 2.125 .652 .311 M4 0.70 6H E005M43FL 4.00 53.98 16.58 7.90 3 0.168 x 0.131 HSS-PM ANSI .157 2.125 .652 .311 M5 0.80 6H E005M5 5.00 60.32 21.42 12.70 2 0.194 x 0.152 HSS-PM ANSI .196 2.375 .843 .500 M5 0.80 6H E005M53FL 5.00 60.32 21.42 12.70 3 0.194 x 0.152 HSS-PM ANSI .196 2.375 .843 .500 M6 1.00 6H E005M6 6.00 63.50 25.59 15.30 2 0.255 x 0.191 HSS-PM ANSI .236 2.500 1.007 .602 M6 1.00 6H E005M63FL 6.00 63.50 25.59 15.30 3 0.255 x 0.191 HSS-PM ANSI .236 2.500 1.007 .602 M8 1.25 6H E005M8 8.00 69.06 30.20 18.20 2 0.318 x 0.238 HSS-PM ANSI .314 2.718 1.189 .717 M8 1.25 6H E005M83FL 8.00 69.06 30.20 18.20 3 0.318 x 0.238 HSS-PM ANSI .314 2.718 1.189 .717 M10 1.50 6H E005M10 10.00 74.61 32.80 19.10 2 0.381 x 0.286 HSS-PM ANSI .393 2.937 1.291 .752 M10 1.50 6H E005M103FL 10.00 74.61 32.80 19.10 3 0.381 x 0.286 HSS-PM ANSI .393 2.937 1.291 .752 M12 1.75 6H E005M12 12.00 85.72 61.74 23.00 2 0.367 x 0.275 HSS-PM ANSI .472 3.375 2.430 .906 M12 1.75 6H E005M123FL 12.00 85.72 61.74 23.00 3 0.367 x 0.275 HSS-PM ANSI .472 3.375 2.430 .906 M14 2.00 6H E005M14 14.00 91.28 66.10 25.00 3 0.429 x 0.322 HSS-PM ANSI .551 3.593 2.602 .984 M16 2.00 6H E005M16 16.00 96.84 57.69 25.00 3 0.480 x 0.360 HSS-PM ANSI .629 3.812 2.271 .984 M18 2.50 6H E005M18 18.00 102.39 62.08 29.50 3 0.542 x 0.406 HSS-PM ANSI .708 4.031 2.444 1.161 M20 2.50 6H E005M20 20.00 113.51 71.09 29.50 3 0.652 x 0.489 HSS-PM ANSI .787 4.468 2.798 1.161 Расшифровку обозначений см. на стр. 1 и 7. 300 248 276 150 SANDVIK
