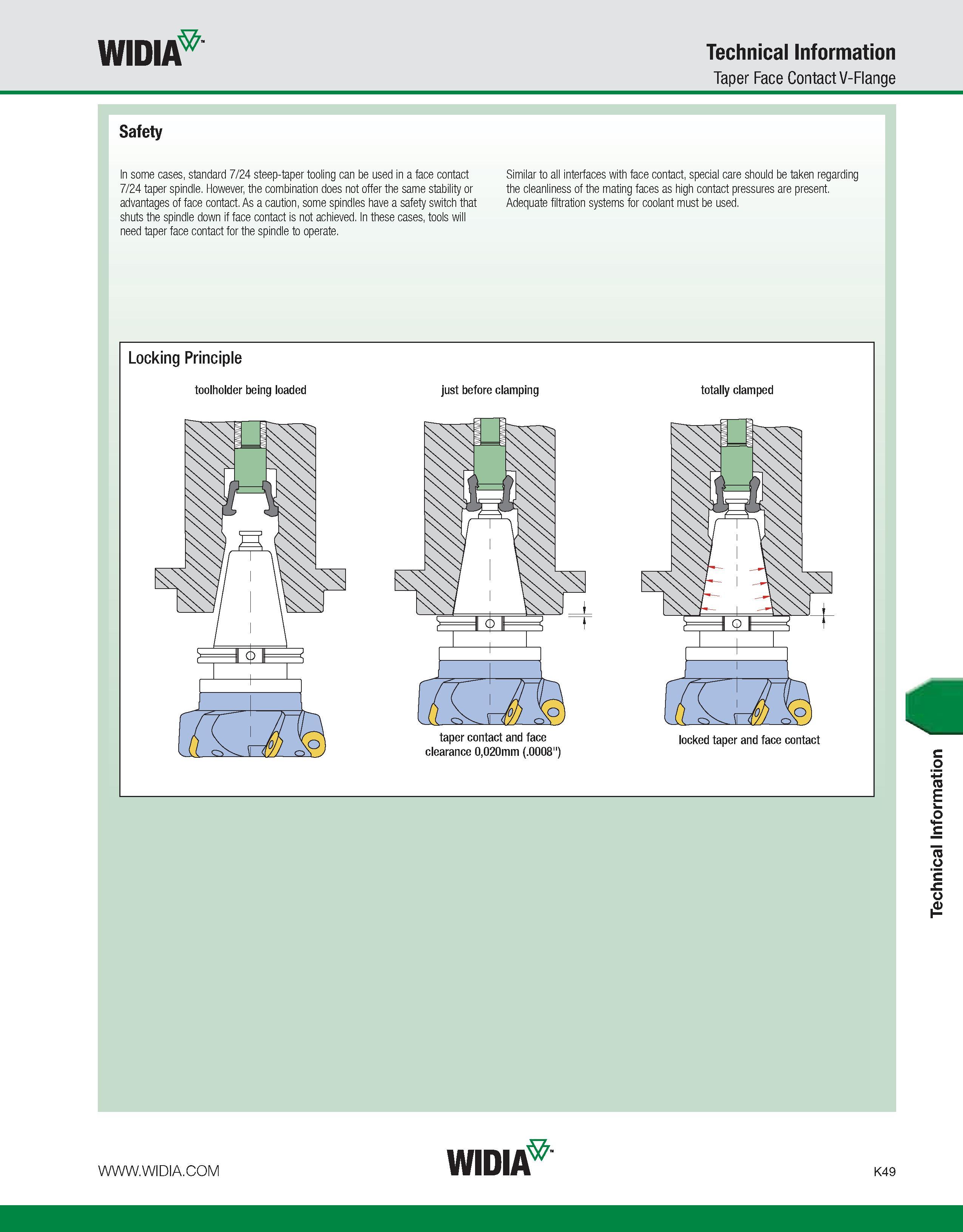

WIDIA Technical Information Taper Face Contact V-Flange Safety In some cases, standard 7/24 steep-taper tooling can be used in a face contact 7/24 taper spindle. However, the combination does not offer the same stability or advantages of face contact. As a caution, some spindles have a safety switch that shuts the spindle down if face contact is not achieved. In these cases, tools will need taper face contact for the spindle to operate. Similar to all interfaces with face contact, special care should be taken regarding the cleanliness of the mating faces as high contact pressures are present. Adequate filtration systems for coolant must be used. Locking Principle toolholder being loaded just before clamping totally clamped taper contact and face clearance 0,020mm (.0008") WIDIA K49 Technical Information
