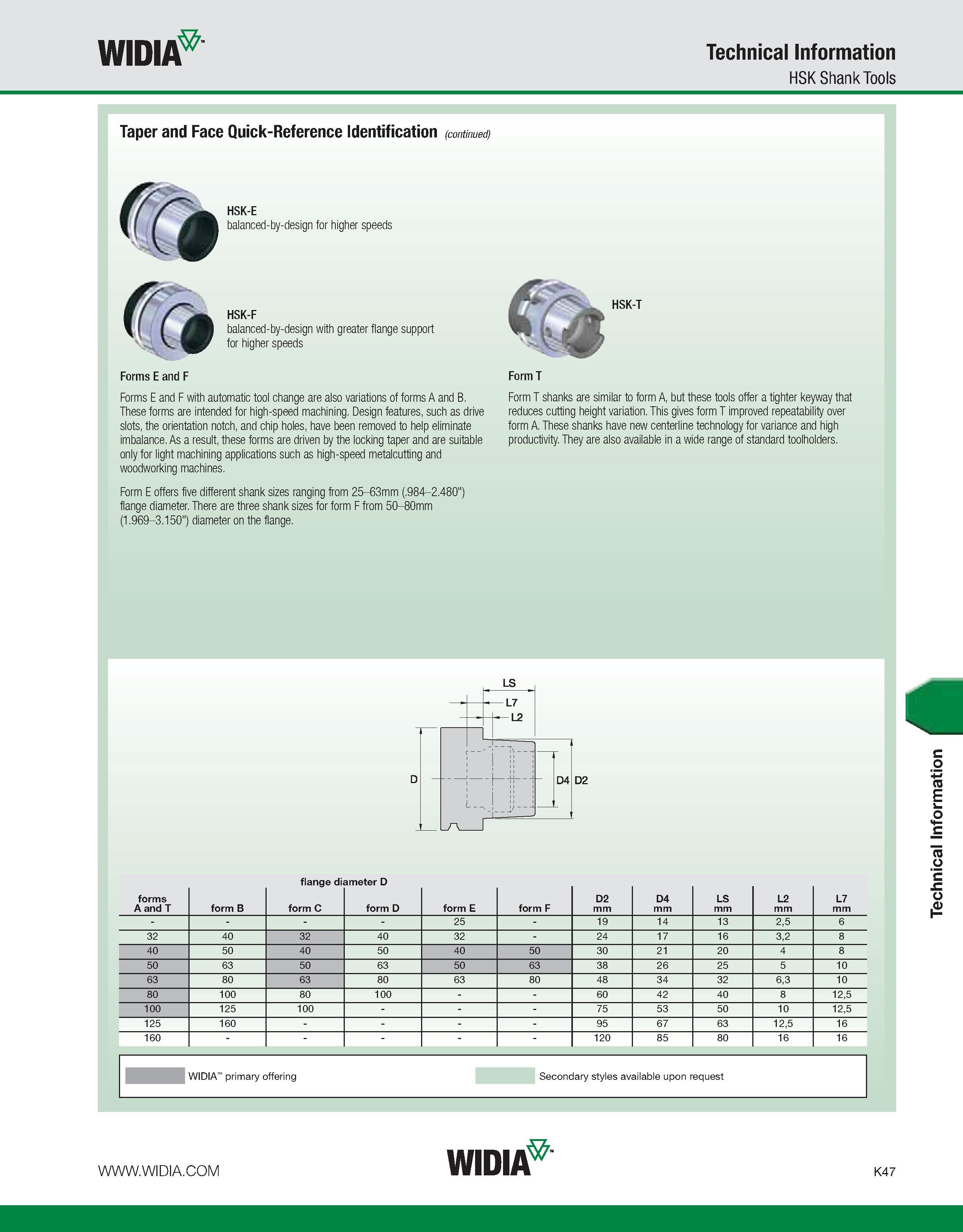

WIDIA Technical Information HSK Shank Tools Taper and Face Quick-Reference Identification (continued) HSK-E balanced-by-design for higher speeds HSK-F balanced-by-design with greater flange support for higher speeds Forms E and F Forms E and F with automatic tool change are also variations of forms A and B. These forms are intended for high-speed machining. Design features, such as drive slots, the orientation notch, and chip holes, have been removed to help eliminate imbalance. As a result, these forms are driven by the locking taper and are suitable only for light machining applications such as high-speed metalcutting and woodworking machines. Form E offers five different shank sizes ranging from 25-63mm (.984-2.480") flange diameter. There are three shank sizes for form F from 50-80mm (1.969-3.150") diameter on the flange. HSK-T Form T Form T shanks are similar to form A, but these tools offer a tighter keyway that reduces cutting height variation. This gives form T improved repeatability over form A. These shanks have new centerline technology for variance and high productivity. They are also available in a wide range of standard toolholders. flange diameter D forms A and T form B form C form D form E form F D2 mm D4 mm LS mm L2 mm L7 mm - 25 19 14 13 2,5 6 32 40 32 40 32 24 17 16 3,2 8 40 50 40 50 40 50 30 21 20 4 8 50 63 50 63 50 63 38 26 25 5 10 63 80 63 80 63 80 48 34 32 6,3 10 80 100 80 100 60 42 40 8 12,5 100 125 100 75 53 50 10 12,5 125 160 95 67 63 12,5 16 160 120 85 80 16 16 WIDIA K47 Technical Information
