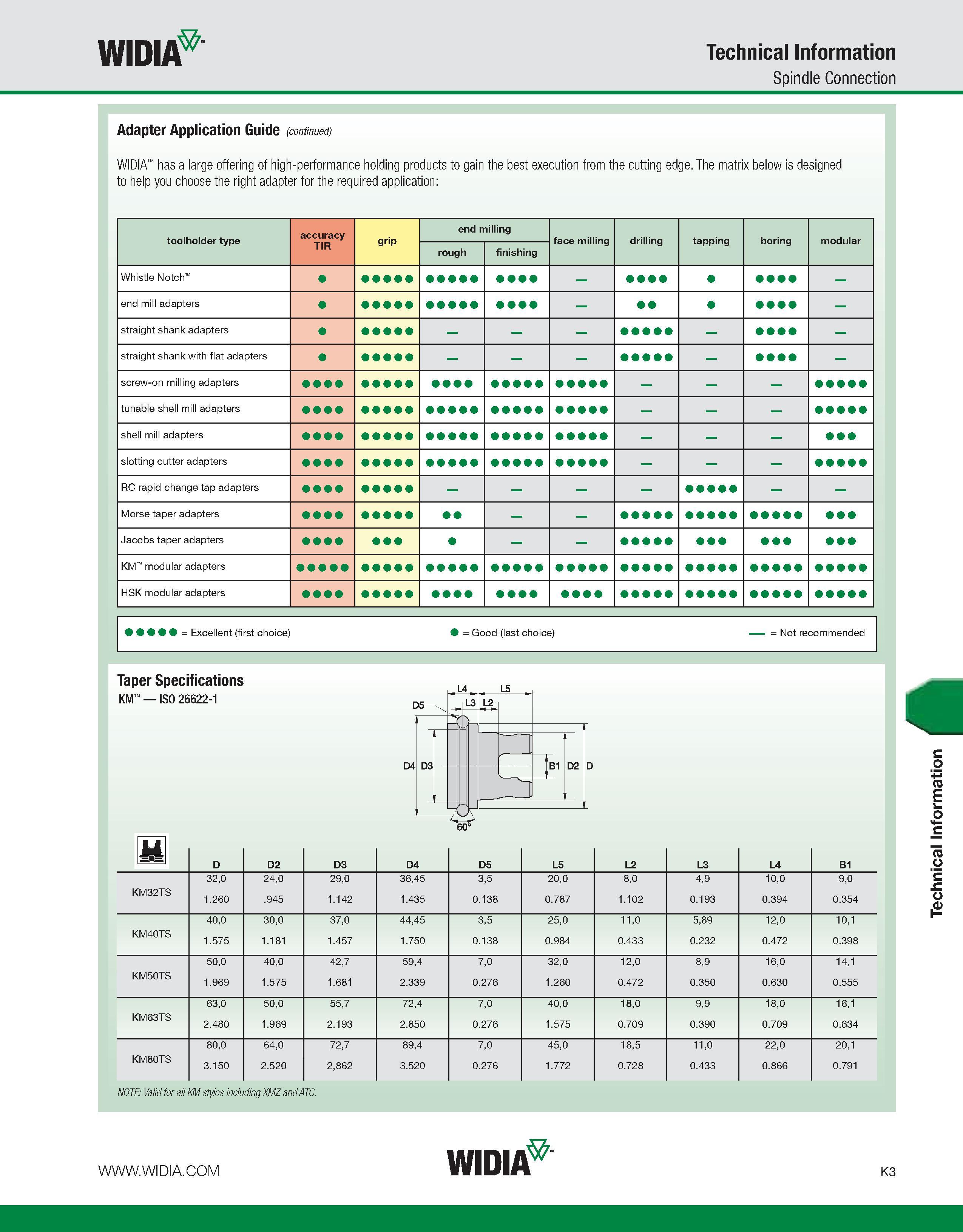

WIDIA Technical Information Spindle Connection Adapter Application Guide (continued) WIDIA has a large offering of high-performance holding products to gain the best execution from the cutting edge. The matrix below is designed to help you choose the right adapter for the required application: toolholder type accuracy TIR grip end milling face milling drilling tapping boring modular rough finishing Whistle Notch end mill adapters straight shank adapters straight shank with flat adapters screw-on milling adapters tunable shell mill adapters shell mill adapters slotting cutter adapters RC rapid change tap adapters Morse taper adapters Jacobs taper adapters KM modular adapters HSK modular adapters = Excellent (first choice) = Good (last choice) = Not recommended Taper Specifications KM ISO 26622-1 M D D2 D3 D4 D5 L5 L2 L3 L4 B1 KM32TS 32,0 24,0 29,0 36,45 3,5 20,0 8,0 4,9 10,0 9,0 1.260 .945 1.142 1.435 0.138 0.787 1.102 0.193 0.394 0.354 KM40TS 40,0 1.575 30,0 1.181 37,0 1.457 44,45 1.750 3,5 0.138 25,0 0.984 11,0 0.433 5,89 0.232 12,0 0.472 10,1 0.398 KM50TS 50,0 40,0 42,7 59,4 7,0 32,0 12,0 8,9 16,0 14,1 1.969 1.575 1.681 2.339 0.276 1.260 0.472 0.350 0.630 0.555 KM63TS 63,0 2.480 50,0 1.969 55,7 2.193 72,4 2.850 7,0 0.276 40,0 1.575 18,0 0.709 9,9 0.390 18,0 0.709 16,1 0.634 KM80TS 80,0 64,0 72,7 89,4 7,0 45,0 18,5 11,0 22,0 20,1 3.150 2.520 2,862 3.520 0.276 1.772 0.728 0.433 0.866 0.791 NOTE: Valid for all KM styles including XMZ and ATC. WIDIA K3 Technical Information
