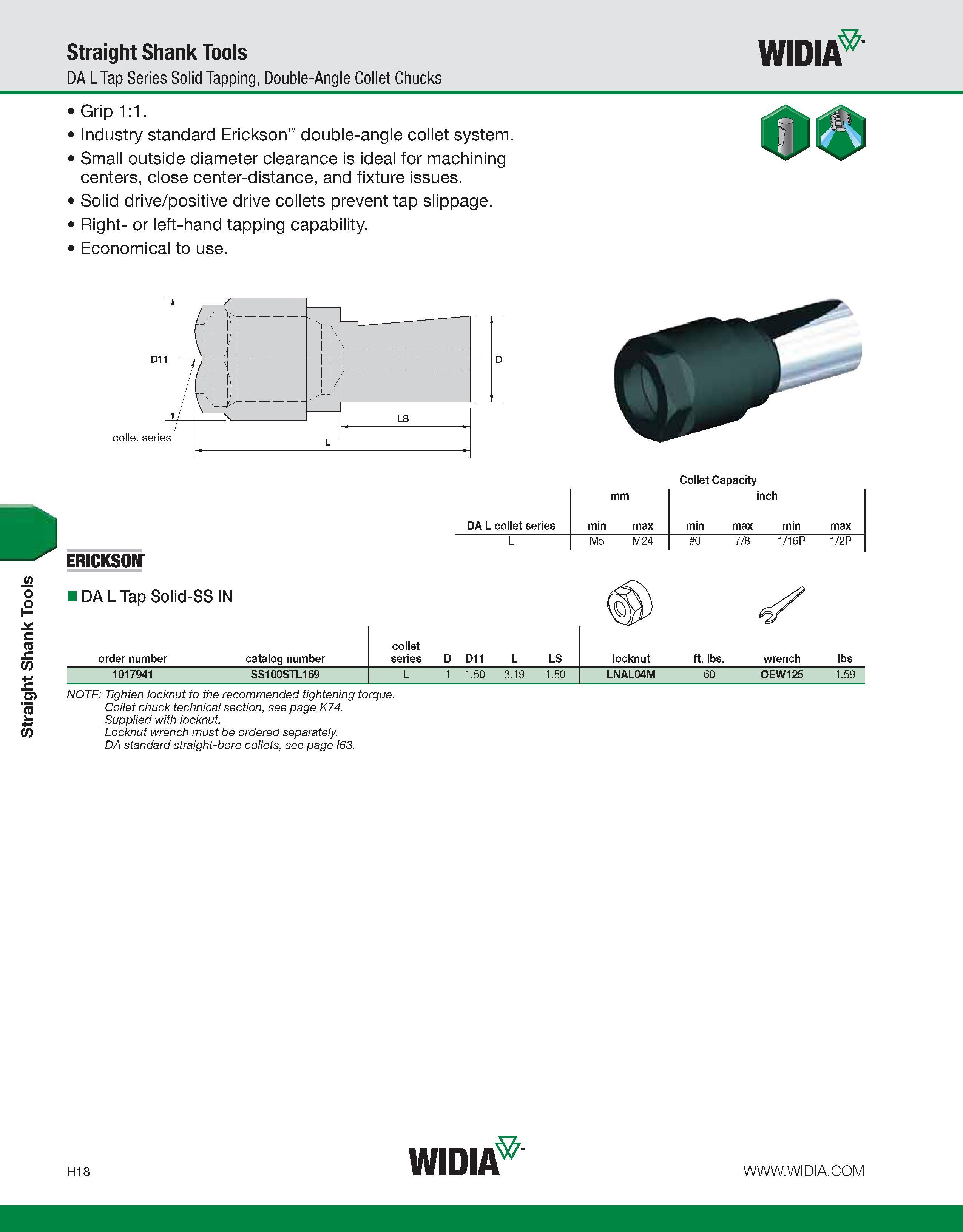

Straight Shank Tools Straight Shank Tools DA L Tap Series Solid Tapping, Double-Angle Collet Chucks WIDIA Grip 1:1. Industry standard Erickson double-angle collet system. Small outside diameter clearance is ideal for machining centers, close center-distance, and fixture issues. Solid drive/positive drive collets prevent tap slippage. Right- or left-hand tapping capability. Economical to use. D11 collet series LS Collet Capacity ERICKSON mm inch DA L collet series min max min max min max L M5 M24 0 7/8 1/16P 1/2P DA L Tap Solid-SS IN order number catalog number collet series D D11 L LS locknut ft. lbs. wrench lbs 1017941 SS100STL169 L 1 1.50 3.19 1.50 LNAL04M 60 OEW125 1.59 NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut. Locknut wrench must be ordered separately. DA standard straight-bore collets, see page I63. H18 WIDIA
