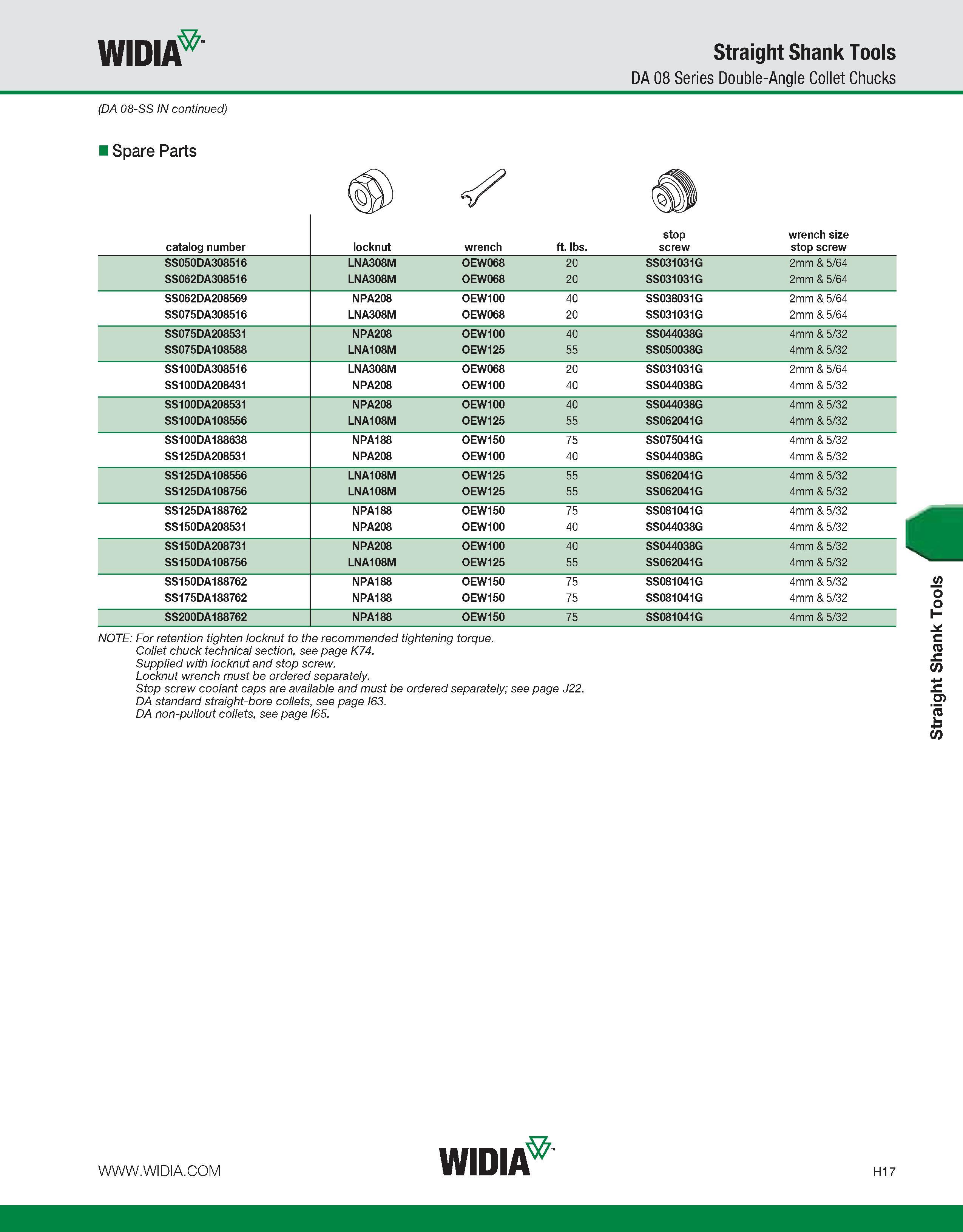

WIDIA Straight Shank Tools DA 08 Series Double-Angle Collet Chucks (DA 08-SS IN continued) Spare Parts catalog number locknut wrench ft. lbs. stop screw wrench size stop screw SS050DA308516 LNA308M OEW068 20 SS031031G 2mm & 5/64 SS062DA308516 LNA308M OEW068 20 SS031031G 2mm & 5/64 SS062DA208569 NPA208 OEW100 40 SS038031G 2mm & 5/64 SS075DA308516 LNA308M OEW068 20 SS031031G 2mm & 5/64 SS075DA208531 NPA208 OEW100 40 SS044038G 4mm & 5/32 SS075DA108588 LNA108M OEW125 55 SS050038G 4mm & 5/32 SS100DA308516 LNA308M OEW068 20 SS031031G 2mm & 5/64 SS100DA208431 NPA208 OEW100 40 SS044038G 4mm & 5/32 SS100DA208531 NPA208 OEW100 40 SS044038G 4mm & 5/32 SS100DA108556 LNA108M OEW125 55 SS062041G 4mm & 5/32 SS100DA188638 NPA188 OEW150 75 SS075041G 4mm & 5/32 SS125DA208531 NPA208 OEW100 40 SS044038G 4mm & 5/32 SS125DA108556 LNA108M OEW125 55 SS062041G 4mm & 5/32 SS125DA108756 LNA108M OEW125 55 SS062041G 4mm & 5/32 SS125DA188762 NPA188 OEW150 75 SS081041G 4mm & 5/32 SS150DA208531 NPA208 OEW100 40 SS044038G 4mm & 5/32 SS150DA208731 NPA208 OEW100 40 SS044038G 4mm & 5/32 SS150DA108756 LNA108M OEW125 55 SS062041G 4mm & 5/32 SS150DA188762 NPA188 OEW150 75 SS081041G 4mm & 5/32 SS175DA188762 NPA188 OEW150 75 SS081041G 4mm & 5/32 SS200DA188762 NPA188 OEW150 75 SS081041G 4mm & 5/32 NOTE: For retention tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I63. DA non-pullout collets, see page I65. Straight Shank Tools
