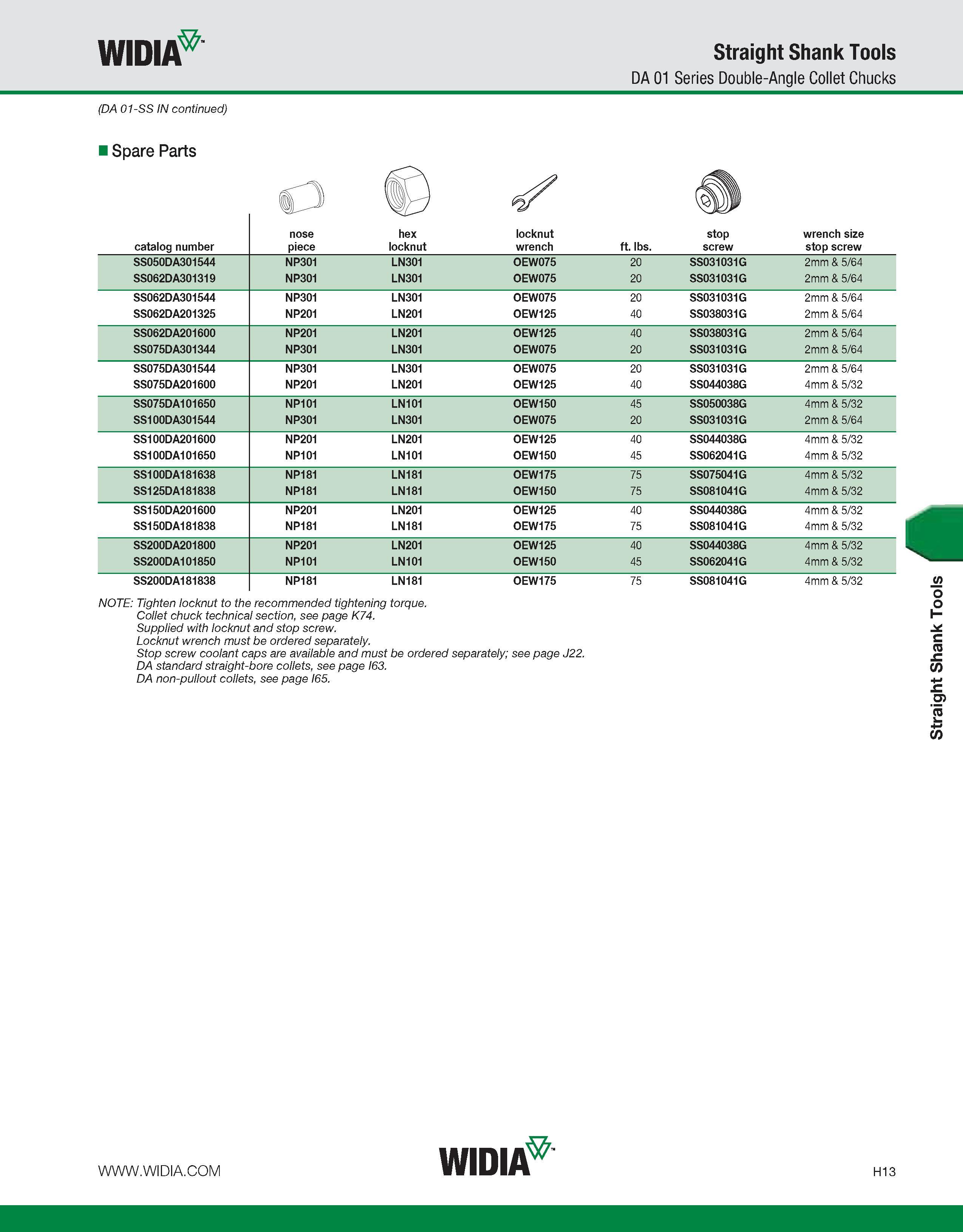

WIDIA Straight Shank Tools DA 01 Series Double-Angle Collet Chucks (DA 01-SS IN continued) Spare Parts catalog number nose piece hex locknut locknut wrench ft. lbs. stop screw wrench size stop screw SS050DA301544 NP301 LN301 0EW075 20 SS031031G 2mm & 5/64 SS062DA301319 NP301 LN301 0EW075 20 SS031031G 2mm & 5/64 SS062DA301544 NP301 LN301 0EW075 20 SS031031G 2mm & 5/64 SS062DA201325 NP201 LN201 0EW125 40 SS038031G 2mm & 5/64 SS062DA201600 NP201 LN201 0EW125 40 SS038031G 2mm & 5/64 SS075DA301344 NP301 LN301 0EW075 20 SS031031G 2mm & 5/64 SS075DA301544 NP301 LN301 0EW075 20 SS031031G 2mm & 5/64 SS075DA201600 NP201 LN201 0EW125 40 SS044038G 4mm & 5/32 SS075DA101650 NP101 LN101 0EW150 45 SS050038G 4mm & 5/32 SS100DA301544 NP301 LN301 0EW075 20 SS031031G 2mm & 5/64 SS100DA201600 NP201 LN201 0EW125 40 SS044038G 4mm & 5/32 SS100DA101650 NP101 LN101 0EW150 45 SS062041G 4mm & 5/32 SS100DA181638 NP181 LN181 0EW175 75 SS075041G 4mm & 5/32 SS125DA181838 NP181 LN181 0EW150 75 SS081041G 4mm & 5/32 SS150DA201600 NP201 LN201 0EW125 40 SS044038G 4mm & 5/32 SS150DA181838 NP181 LN181 0EW175 75 SS081041G 4mm & 5/32 SS200DA201800 NP201 LN201 0EW125 40 SS044038G 4mm & 5/32 SS200DA101850 NP101 LN101 0EW150 45 SS062041G 4mm & 5/32 SS200DA181838 NP181 LN181 0EW175 75 SS081041G 4mm & 5/32 NOTE: Tighten locknut to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Stop screw coolant caps are available and must be ordered separately; see page J22. DA standard straight-bore collets, see page I63. DA non-pullout collets, see page I65. Straight Shank Tools
